Vehicle Lift And Support Locations

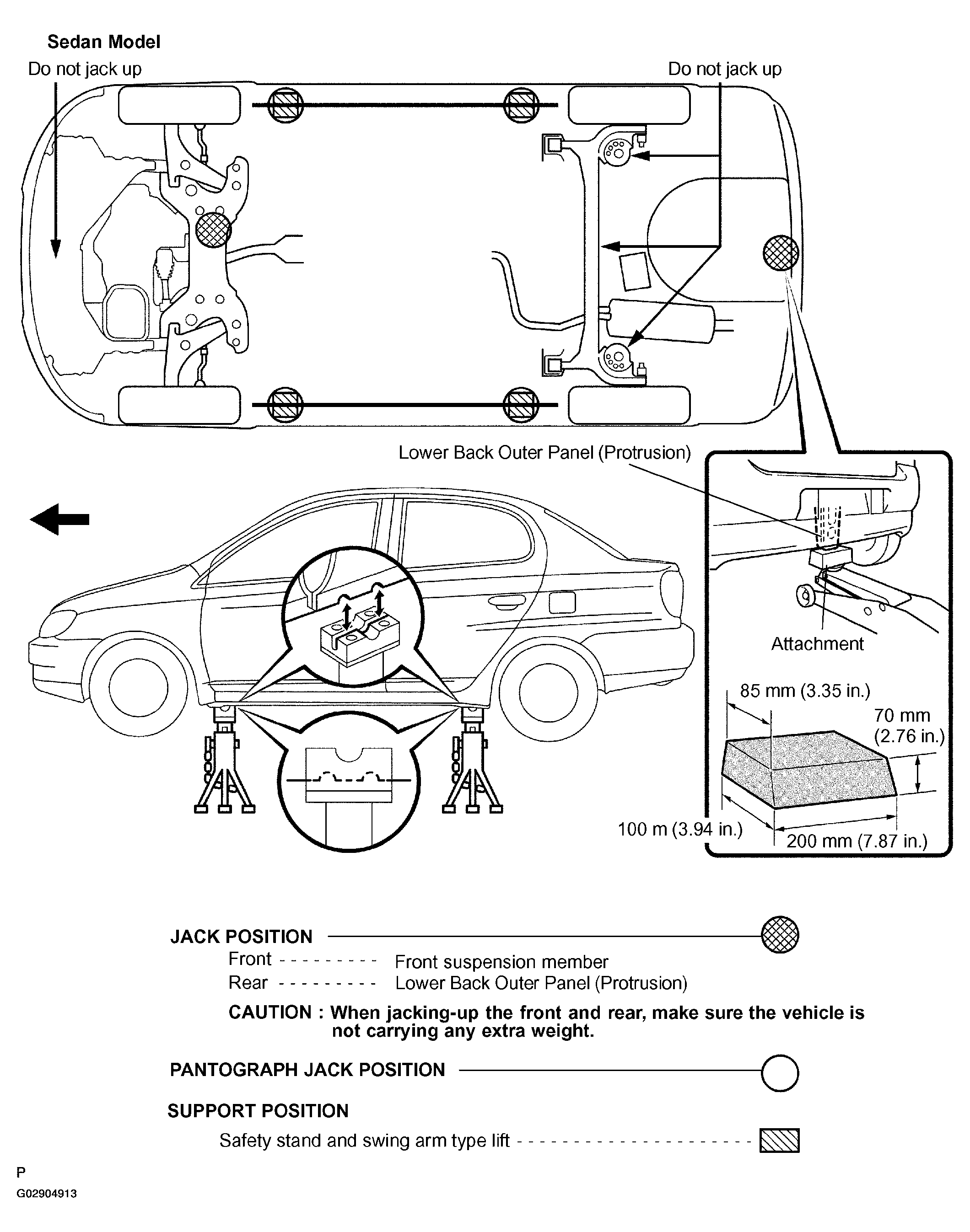

Fig 1: Locating Vehicle Lift And Support (Sedan - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

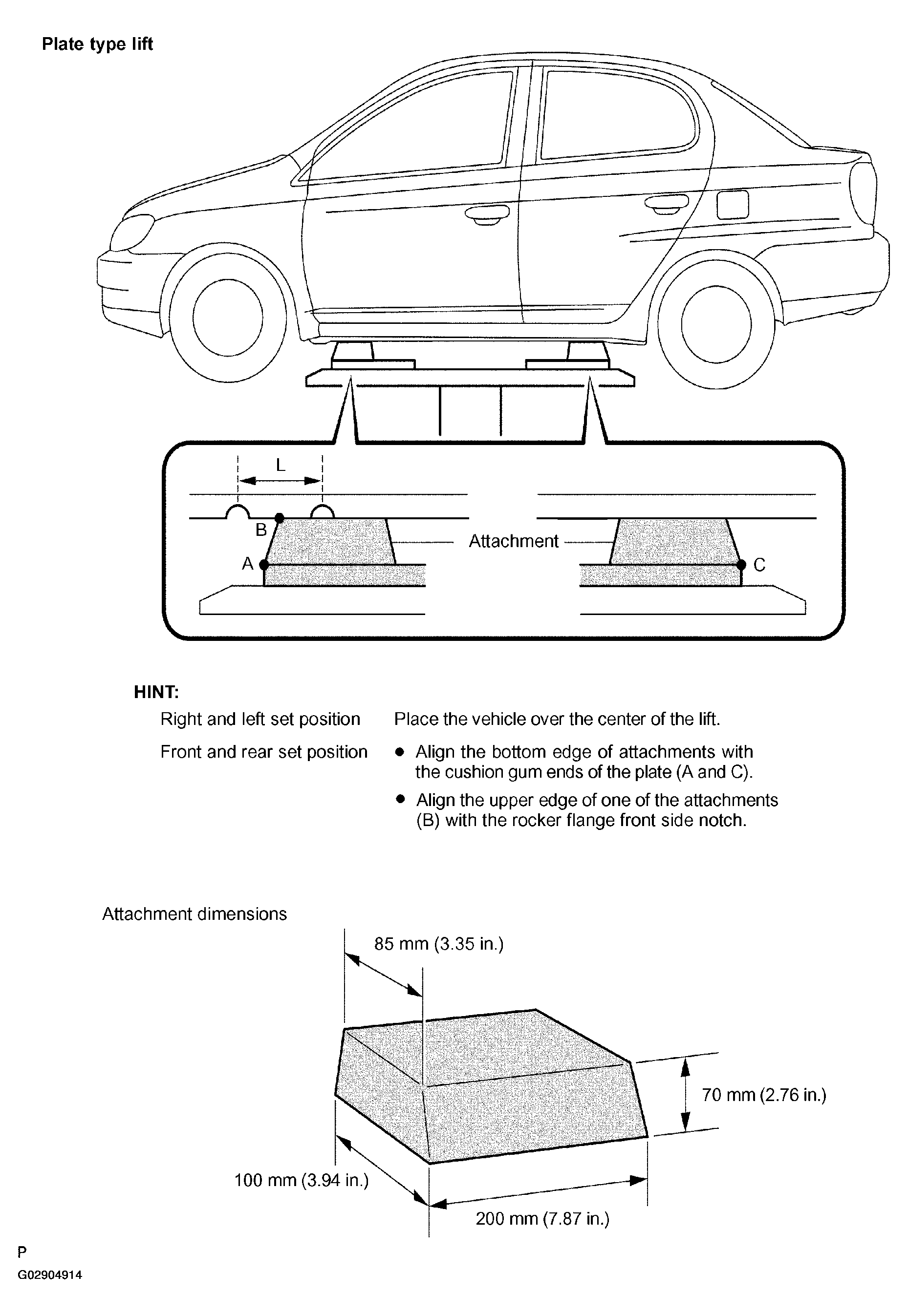

Fig 2: Locating Vehicle Lift And Support (Sedan - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

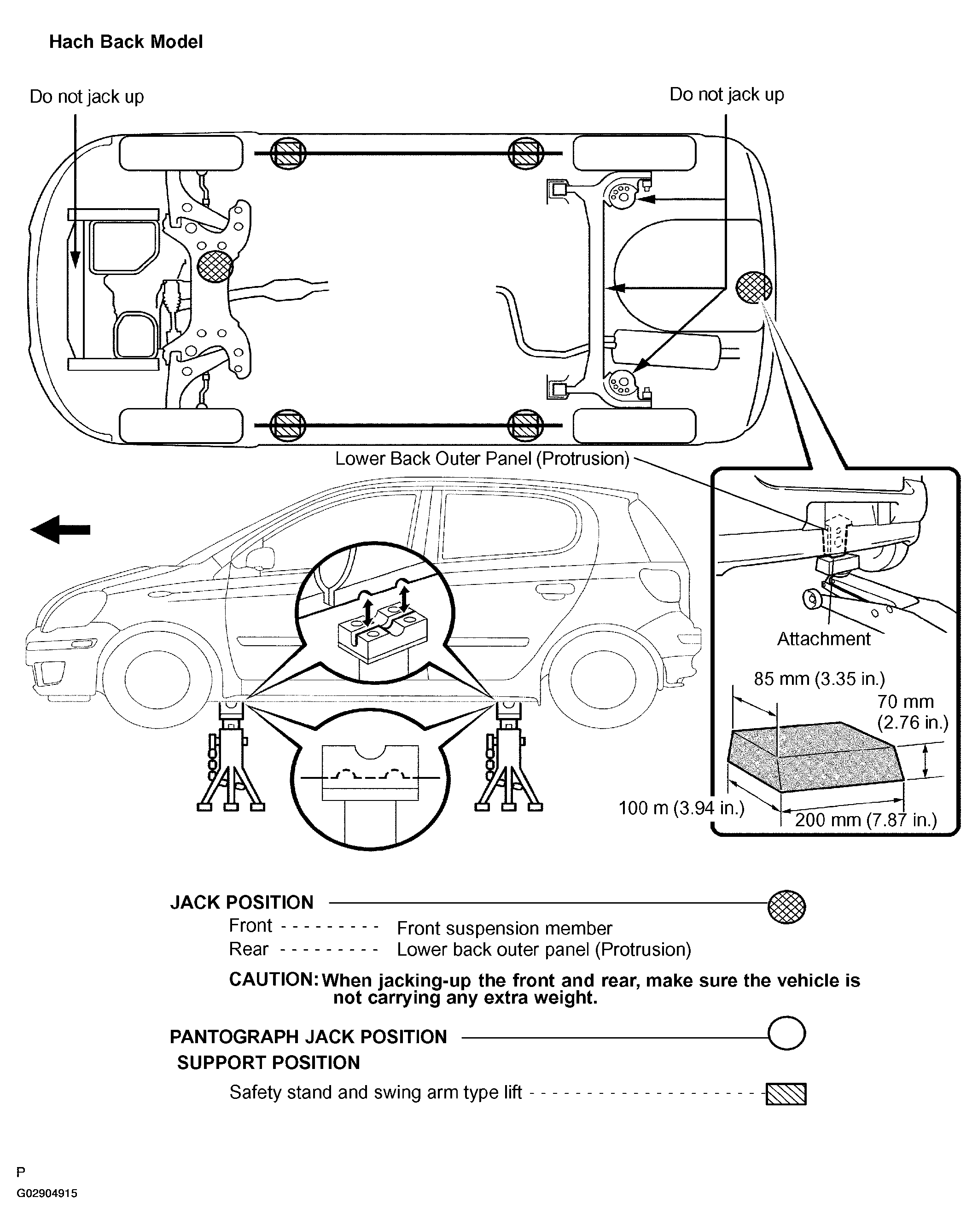

Fig 3: Locating Vehicle Lift And Support (Hatchback - 1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

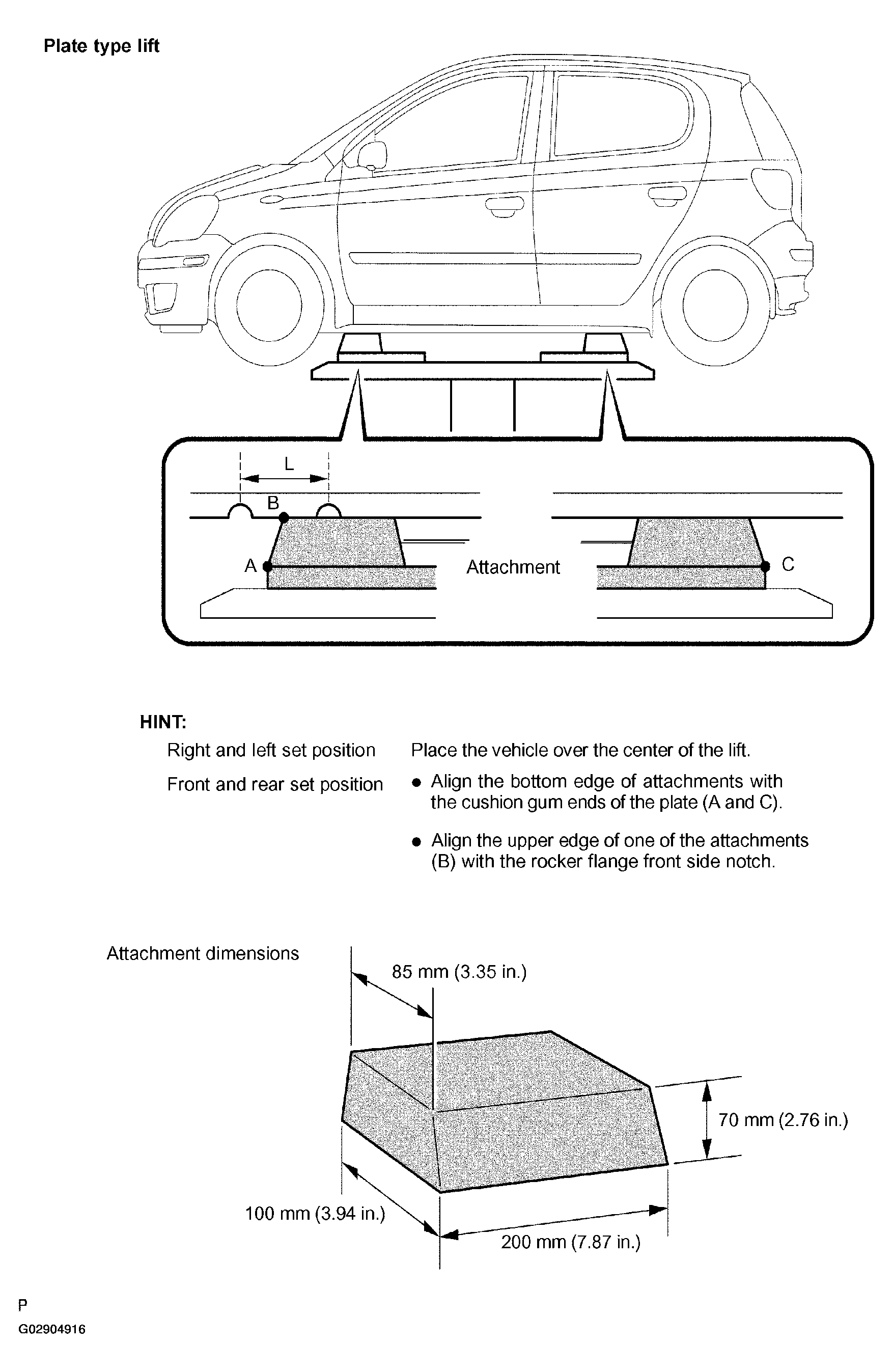

Fig 4: Locating Vehicle Lift And Support (Hatchback - 2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
