Quarter Window Assembly LH: Components

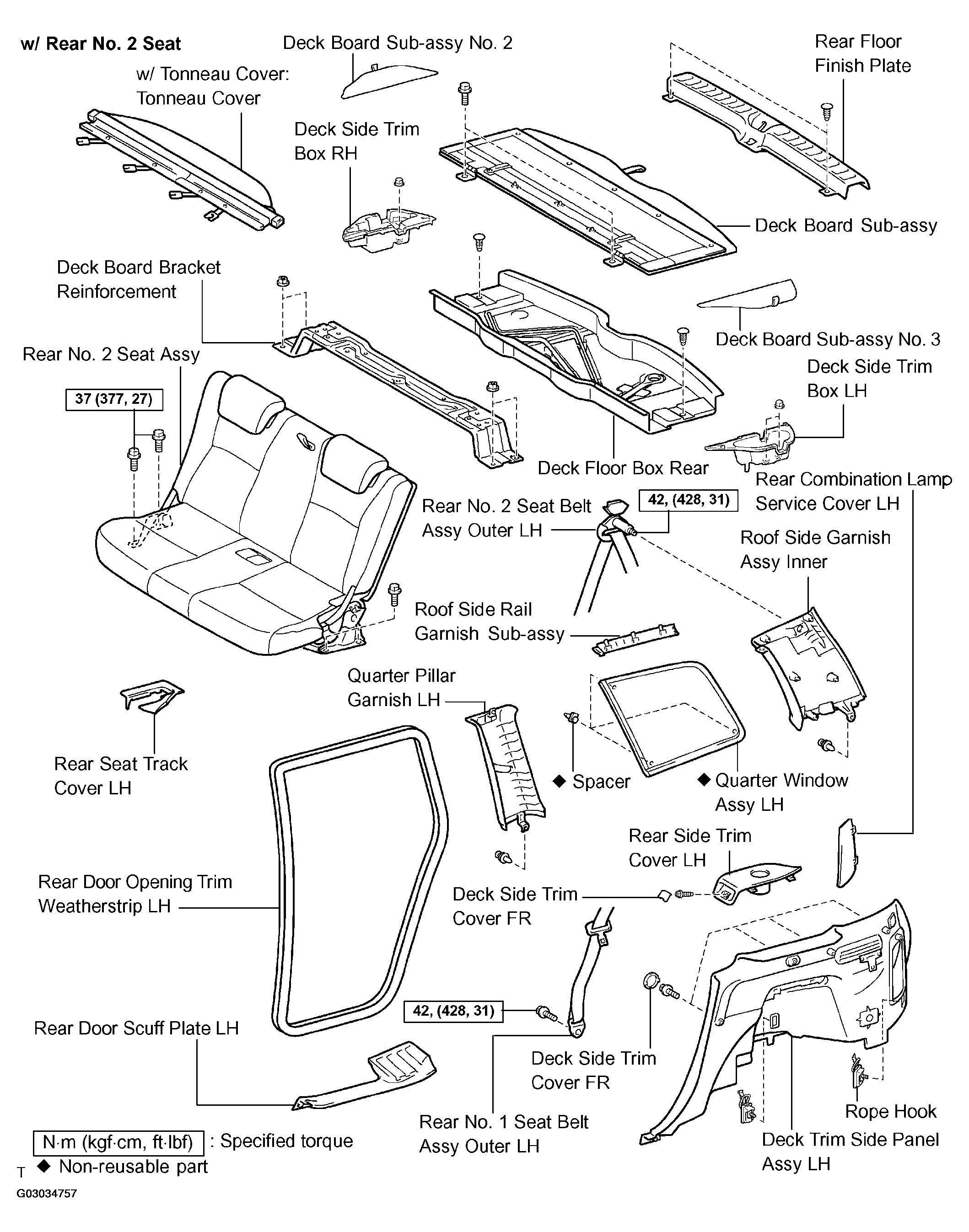

Fig 1: Identifying Quarter Window Assy LH Components (1 of 2)
G03034757Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

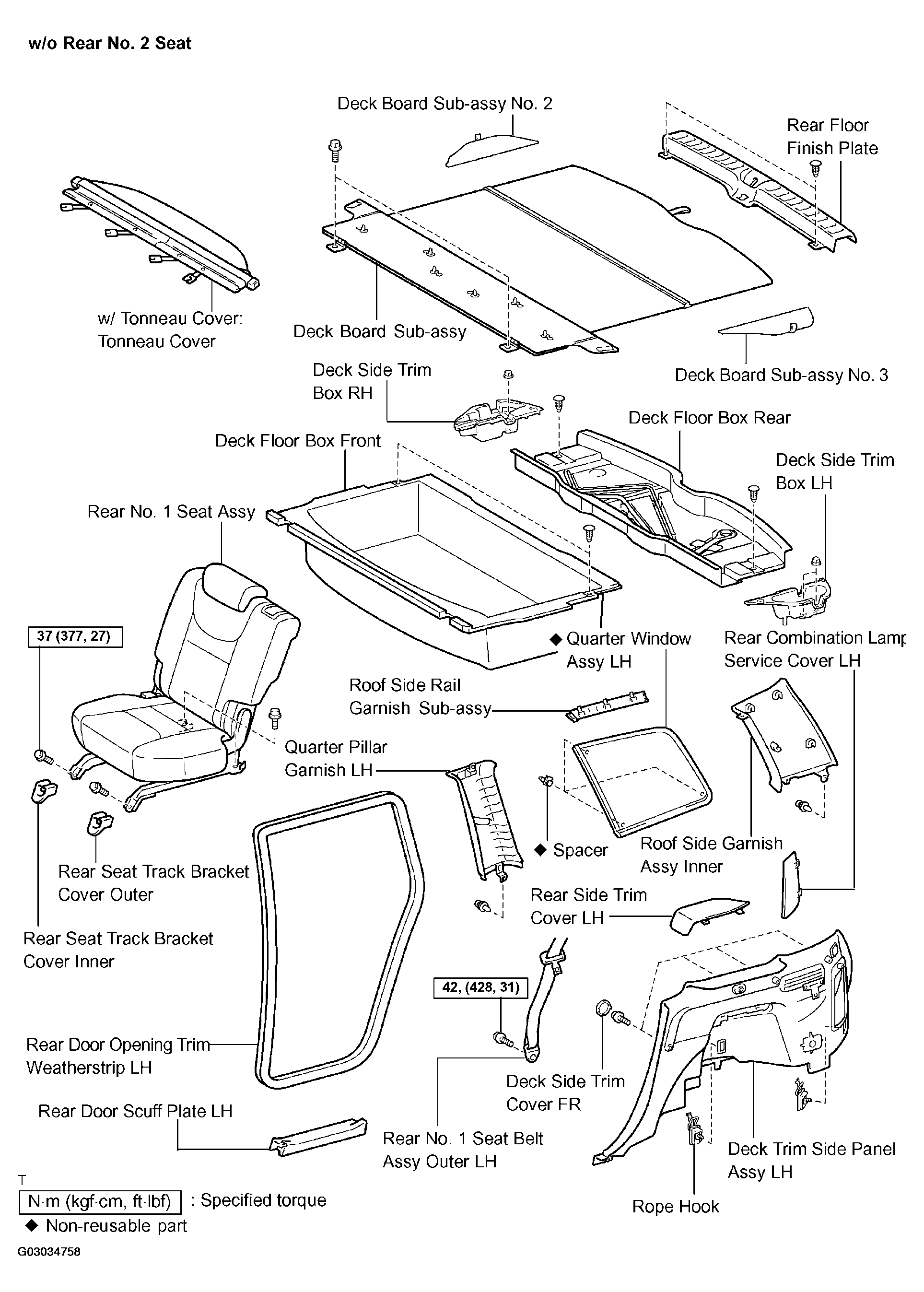

Fig 2: Identifying Quarter Window Assy LH Components (2 of 2)
G03034758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
