Floor Shift Assembly: Components

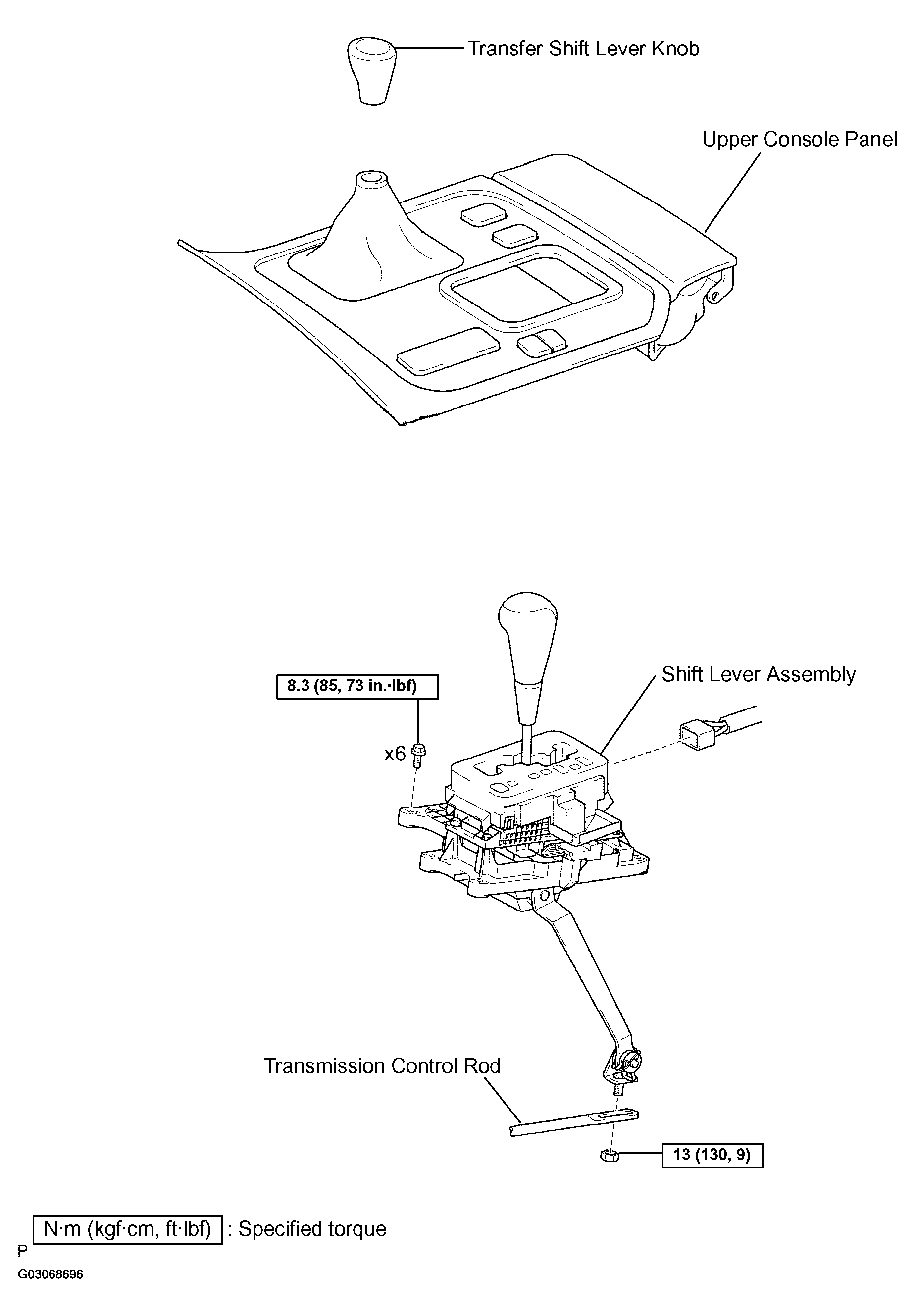

Fig 1: Exploded View Of Floor Shift Assembly Components (1 Of 2)
G03068696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

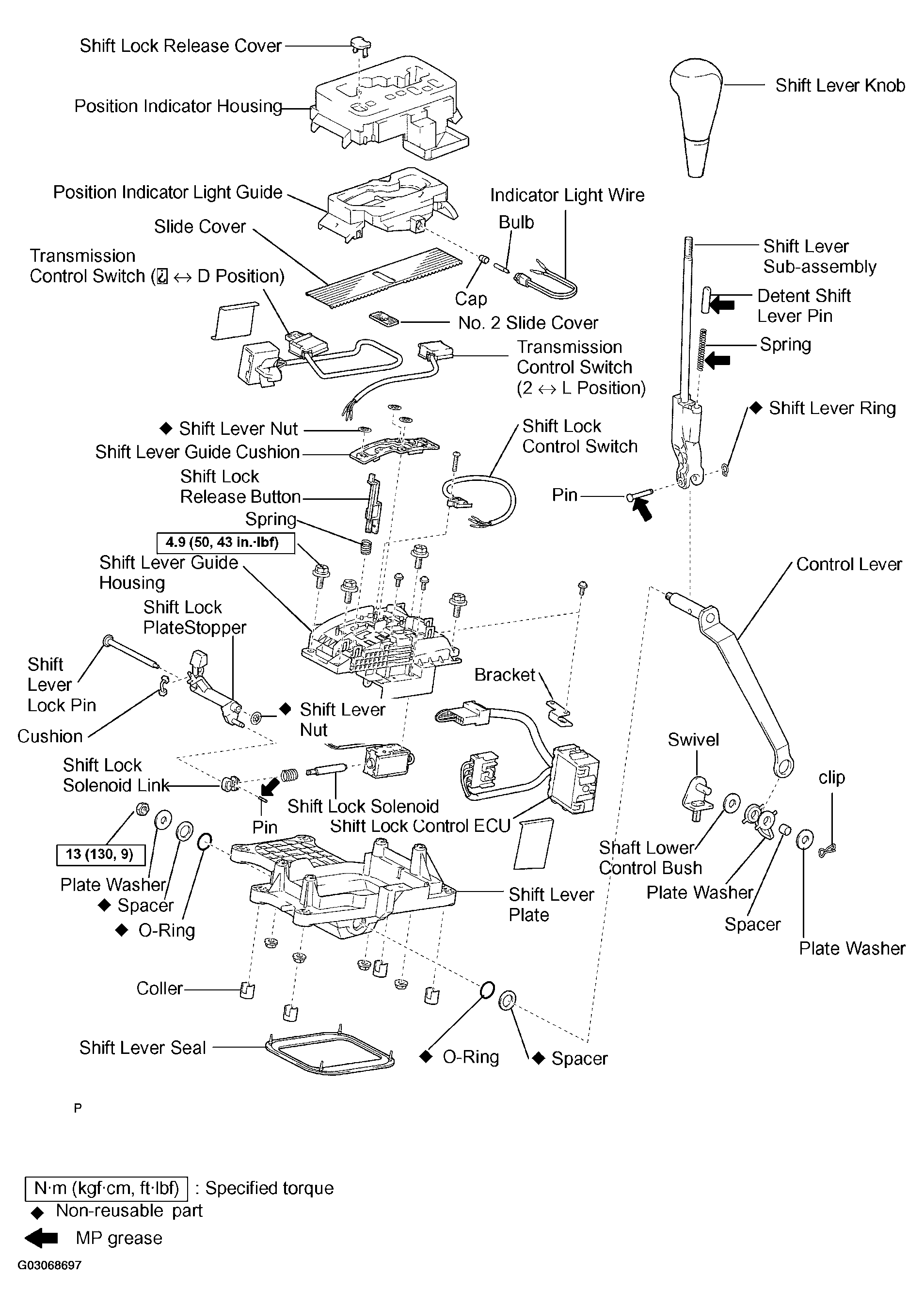

Fig 2: Exploded View Of Floor Shift Assembly Components (2 Of 2)
G03068697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
