Manual Trans Sequential - Diagnostics: Pre-Check

  1. Diagnosis System
    1. Description
      • When troubleshooting OBD II vehicles, the only difference from the usual troubleshooting procedure is that you need to connect an OBD II scan tool (compliant with SAE J1978) or hand-held tester to the vehicle, and read various data output from the vehicle's ECM.
      • OBD II regulations require that the vehicle's onboard computer lights up the MIL on the instrument panel when the computer detects a malfunction in the computer itself or in the drive system components which affect the vehicle emissions. In addition to the MIL lighting up when a malfunction is detected, the applicable DTCs prescribed by SAE J2021 are recorded in the ECM memory (DIAGNOSTIC TROUBLE CODE CHART ).

        If the malfunction does not reoccur for 3 consecutive drive cycles, the MIL turns off but the DTCs remain recorded in the ECM memory.

      • To check the DTCs, connect the hand-held tester or the OBD II scan tool to the DLC3 of the vehicle. The hand-held tester and the OBD II scan tool also enable you to erase the DTCs and check freeze frame data and various forms of engine data (for operation instructions, see the OBD II scan tool's instructions).
        Fig 1: Connecting Hand-Held Tester To DLC3
        G02913970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • The diagnosis system operates in the normal mode during normal vehicle use, and also has a check mode for technicians to simulate malfunction symptoms and perform troubleshooting. Most DTCs use 2-trip detection logic (*) to prevent erroneous detections. By switching the ECM to the check mode when troubleshooting, a technician can cause the MIL to light up for a malfunction that is only detected once or momentarily (hand-held tester) (see step  3).
      • 2-trip detection logic:

        When a logic malfunction is first detected, the malfunction is temporarily stored in the ECM memory.

      If the same malfunction is detected again during the second drive cycle, this second detection causes the MIL to light up (2nd trip) However, the ignition switch must be turned OFF between the 1st trip and 2nd trip.

      • Freeze frame data:

        Freeze frame data records the sequential transmission condition when a malfunction (first malfunction only) is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, etc. at the time of the malfunction.

    2. Inspect the DLC3.

      The vehicle's ECM uses V.P.W. (Variable Pulse Width) for communication to comply with SAE J1850. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the V.P.W. format.

      Fig 2: Identifying DLC3 connector terminals
      G02913971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      DLC3 CONNECTOR TERMINALS VOLTAGE OR RESISTANCE

      Terminal No. Connection/Voltage or Resistance Condition
      4 Chassis Ground - Body/1 Ω or less Always
      5 Signal Ground- Body/1 Ω or less Always
      16 Battery Positive - Body/1 Ω or less Battery Positive - Body/9 - 14 V Always
      NOTE: Connect the cable of the hand-held tester or OBD II scan tool to the DLC3, turn the ignition switch ON and attempt to the scan tool. If the screen displays UNABLE TO CONNECT TO VEHICLE, a problem exists in the vehicle side or the scan tool side.
      • If the communication is normal when the tool is connected to another vehicle, inspect the DLC3 of the original vehicle.
      • If the communication is still impossible when the tool is connected to another vehicle, the problem is probably in the tool itself. Consult the Service Department listed in the tool's instruction manual.
  2. Check Sequential Manual Transmission Warning Light
    Fig 3: Locating Sequential Manual Transmission Warning Light
    G02913972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Turn the ignition switch ON and check that the warning light turns off after 5 seconds.

    If the warning light does not light up or does not turns off, check the sequential manual transmission warning light circuit (see SMT Warning Light Circuit ). Also, when the light does not turn off, check DTC as well.

  3. Normal Mode:

    Inspect Diagnosis

    1. Check the MIL.
      1. The MIL lights up when the ignition switch is turned ON and the engine does not run.
        Fig 4: Locating Malfunction Indicator Lamp
        G02913973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: If the MIL does not light up, troubleshoot the combination meter (PROBLEM SYMPTOMS TABLE ).
      2. When the engine starts, the MIL should turn off.
        NOTE: If the lamp remains on, the diagnosis system has detected a malfunction or abnormality in the system.
    2. Check the DTC.
      NOTE: Hand-held tester only:
      When the diagnostic system is switched from the normal mode to the check mode, all DTCs and freeze frame data recorded in normal mode will be erased. Before switching modes, always check the DTCs and freeze frame data, and take notes.
      1. Prepare the hand-held tester or the OBD II scan tool (complying with SAE J1978).
        Fig 5: Connecting Hand-Held Tester To DLC3
        G02913974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Connect the hand-held tester or the OBD II scan tool to the DLC3.
      3. Turn the ignition switch ON and turn the hand-held tester or the OBD II scan tool switch ON.
      4. Use the OBD II scan tool or the hand-held tester to check the DTCs and freeze frame data. Take notes. (For operating instructions, see the OBD II scan tool's instructions.)
      5. See DIAGNOSTIC TROUBLE CODE CHART  to confirm the details of the DTCs.

    NOTE: When simulating symptoms with an OBD II scan tool (excluding the hand-held tester) to check the DTCs, use the normal mode. For codes on the DTC chart subject to 2-trip detection logic, turn the ignition switch OFF after the symptoms have been simulated again. When the problem has been simulated twice, the MIL lights up and the DTCs are recorded in the ECM.
  4. Check Mode:

    Inspect Diagnosis

    NOTE:

    Hand-held tester:

    1. Compared to normal mode, check mode has a higher level of sensitivity to malfunction.
    2. Furthermore, the same diagnostic items which are detected in normal mode can also be detected in check mode.

    1. Check the DTC.
      1. Initial Condition
        • Battery positive voltage 11 V or more
        • Throttle valve fully closed
        • Transaxle in the N position
        • Air conditioning switched off
      2. Turn the ignition switch OFF.
      3. Prepare the hand-held tester.
      4. Connect the hand-held tester to the DLC3.
        Fig 6: Connecting Hand-Held Tester To DLC3
        G02913975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Turn the ignition switch ON and switch the hand-held tester ON.
      6. Switch the hand-held tester from normal mode to check mode. Check that the MIL flashes.
        Fig 7: Measuring Thickness Of Pulse Of MIL
        G02913976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      7. Start the engine. Check that the MIL turns off after the engine starts.
      8. Simulate the conditions of the malfunction described by the customer.
        NOTE: Leave the ignition switch ON until you have checked the DTCs, etc.
      9. After simulating the malfunction conditions, use the hand-held tester diagnosis selector to check the DTCs and freeze frame data, etc.
        NOTE: Take care not to turn the ignition switch OFF. Turning the ignition switch OFF switches the diagnosis system from check mode to normal mode, erasing all the DTCs, etc.
      10. After checking the DTC, inspect the applicable circuit.
    2. Clear the DTC.

      The following action will erase the DTCs and freeze frame data.

      Select the CLEAR FREEZE DATA on the DIAGNOSTIC MENU.

      NOTE: If the hand-held tester switches the ECM from normal mode to check mode or vice-versa, or if the ignition switch is turned from ON to ACC or OFF during check mode, the DTCs and freeze frame data will be erased.
  5. Definition Of Terms
    TERMS DEFINITION

    Term Definition
    Monitor description Description of what the ECM monitors and how it detects malfunctions (monitoring purpose and its details).
    Related DTCs Diagnostic code
    Typical enabling condition Preconditions that allow the ECM to detect malfunctions With all preconditions satisfied, the ECM sets the DTC when the monitored value(s) exceeds the malfunction threshold(s).
    Sequence of operation The priority order that is applied to monitoring, if multiple sensors and components are used to detect the malfunction. While another sensor is being monitored, the next sensor or component will not be monitored until the previous monitoring has concluded.
    Required sensor/components The sensors and components that are used by the ECM to detect malfunctions.
    Frequency of operation The number of times that the ECM checks for malfunctions per driving cycle."Once per driving cycle" means that the ECM detects a malfunction only one time during a single driving cycle."Continuous" means that the ECM detects a malfunction every time an enabling condition is met during a single driving cycle.
    Duration The minimum time that the ECM must sense a continuous deviation in the monitored value(s) before setting a DTC. This timing begins after the "typical enabling conditions" are met.
    Malfunction thresholds Beyond this value, the ECM will conclude that there is a malfunction and set a DTC.
    MIL operation MIL illumination timing after a defect is detected."Immediately" means that the ECM illuminates MIL the instant the ECM determines that there is a malfunction."2 driving cycle" means that the ECM illuminates MIL if the same malfunction is detected again in the second driving cycle.
  6. Toyota/Lexus Part And System Name List

    This reference list indicates the part name used in this manual along with their definitions.

    TOYOTA/LEXUS PART & SYSTEM NAME LIST

    TOYOTA/LEXUS name Definition
    Toyota HCAC system, Hydrocarbon absorptive Catalyst (HCAC) system, HC absorptive three-way catalyst HC absorptive three-way catalytic converter
    Variable Valve Timing sensor, VVT sensor Camshaft position sensor
    Variable valve timing system, VVT system Camshaft timing control system
    Camshaft timing oil control valve, Oil control valve OCV, VVT, VSV Camshaft timing oil control valve
    Variable timing and lift, VVTL Camshaft timing and lift control
    Crankshaft position sensor "A" Crankshaft position sensor
    Engine speed sensor Crankshaft position sensor
    THA Intake air temperature
    Knock control module Engine knock control module
    Knock sensor Engine knock sensor
    Mass or volume air flow circuit Mass air flow sensor circuit
    Vacuum sensor Manifold air pressure sensor
    Internal control module, Control module, Engine control ECU, PCM Power train control module
    FC idle Deceleration fuel cut
    Idle air control valve Idle speed control
    CCV, Canister close valve VSV for canister control Evaporative emissions canister vent valve
    EVAP VSV, Vacuum switching valve assembly No. 1, EVAP VSV, Purge VSV Evaporative emissions canister purge valve
    VSV for pressure switching valve, Bypass VSV Evaporative emission pressure switching valve
    Vapor pressure sensor, EVAP pressure sensor, Evaporative emission control system pressure sensor Fuel tank pressure sensor
    Charcoal canister Evaporative emissions canister
    ORVR system On-board refueling vapor recovery system
    Intake manifold runner control Intake manifold tuning system
    Intake manifold runner valve, IMRV, IACV (runner valve) Intake manifold tuning valve
    Intake control VSV Intake manifold tuning solenoid valve
    AFS Air fuel ratio sensor
    O2 sensor Heater oxygen sensor
    Oxygen sensor pumping current circuit Oxygen sensor output signal
    Oxygen sensor reference ground circuit Oxygen sensor signal ground
    Accel position sensor Accelerator pedal position sensor
    Throttle actuator control motor, Actuator control motor, Electronic throttle motor, Throttle control motor Electronic throttle actuator
    Electronic throttle control system, Throttle actuator control system Electronic throttle control system
    Throttle/pedal position sensor, Throttle/pedal position switch, Throttle position sensor/switch Throttle position sensor
    Turbo press sensor Turbocharger pressure sensor
    Turbo VSV Turbocharger pressure control solenoid valve
    P/S pressure switch Power-steering pressure switch
    VSV for ACM Active control engine mount
    Speed sensor, Vehicle speed sensor "A", Speed sensor for skid control ECU Vehicle speed sensor
    ATF temperature sensor, Trans, fluid temp, sensor, ATF temperature sensor "A" Transmission fluid temperature sensor
    Electronic controlled sequential manual transmission, SMT Electronically controlled sequential manual
    Intermediate shaft speed sensor "A" Counter gear speed sensor
    Output speed sensor Output shaft speed sensor
    Input speed sensor, Input turbine speed sensor "A", Speed sensor (NT), Turbine speed sensor Input turbine speed sensor
    PNP switch, NSW Park/neutral position switch
    Pressure control solenoid Transmission pressure control solenoid
    Shift solenoid Transmission shift solenoid valve
    Transmission control switch, Shift lock control unit Shift lock control module
    Engine immobilizer system, Immobilizer system Vehicle anti-theft system
  7. The monitor will run whenever the following DTCs are not present (Monitor Disablement List)
    NOTE: This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.

    As for the X mark, when the DTC on the left is stored detection of the DTC in the upper column is not performed.

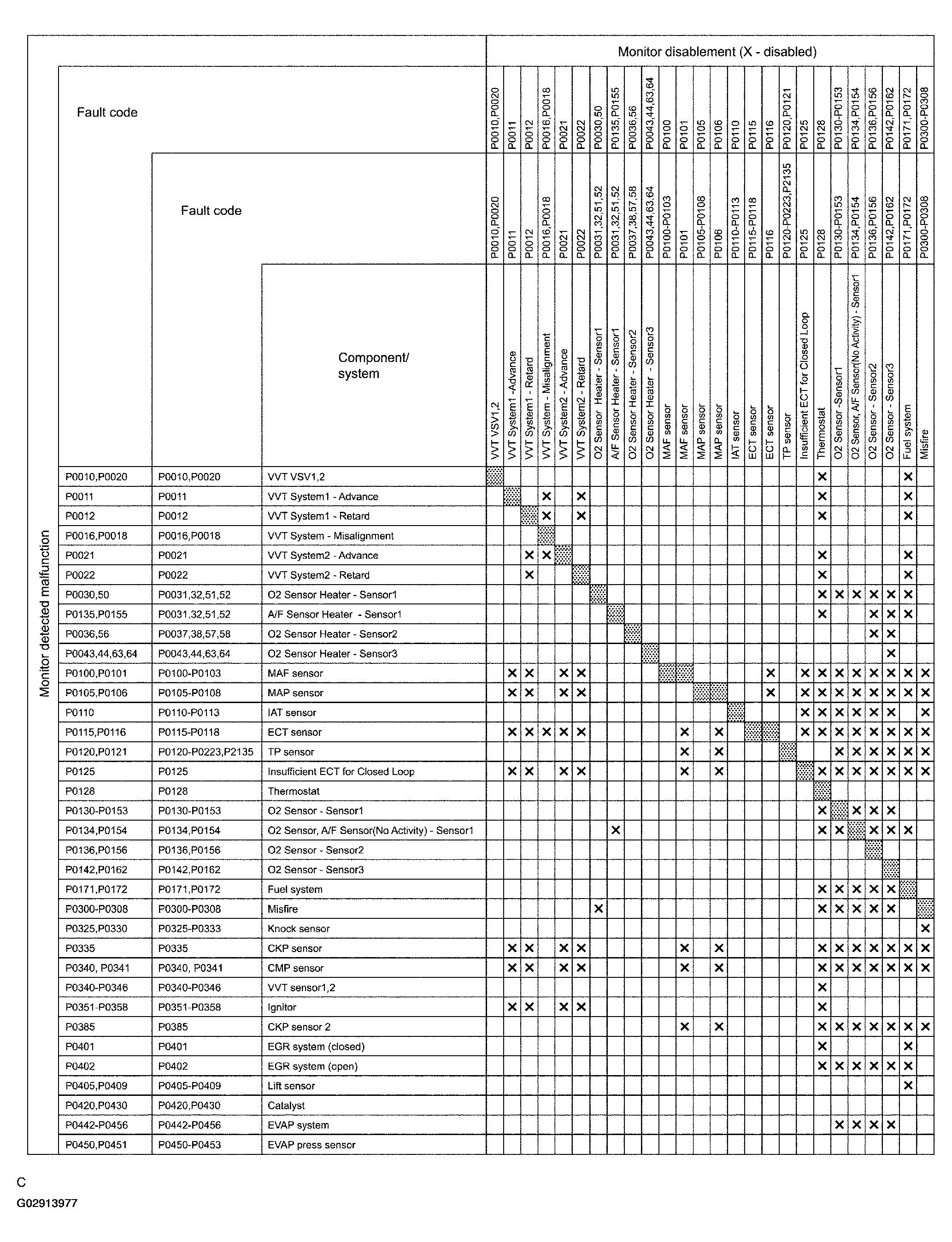

    Fig 8: Displaying Monitor Disablement Chart (1 of 6)
    G02913977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

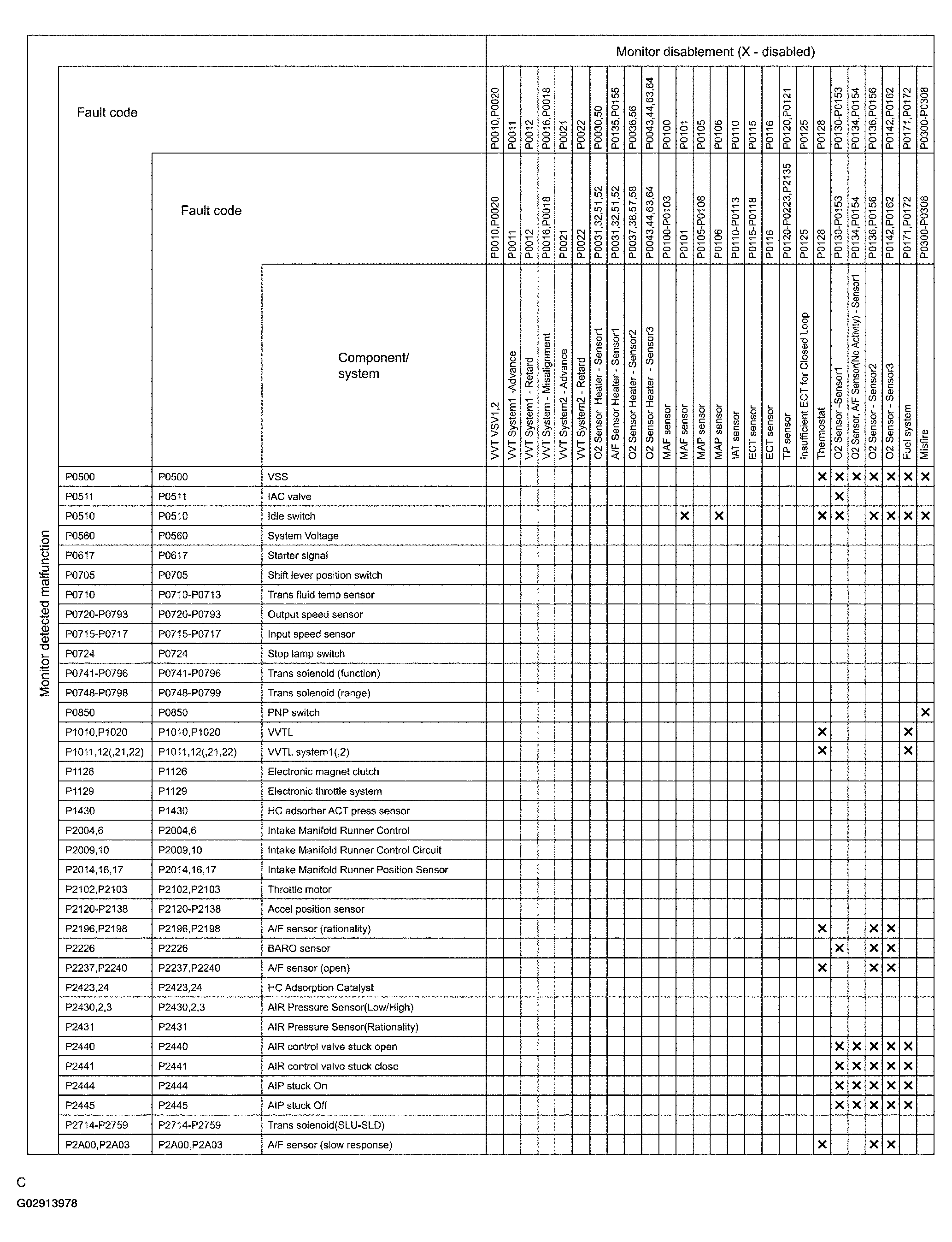

    Fig 9: Displaying Monitor Disablement Chart (2 of 6)
    G02913978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

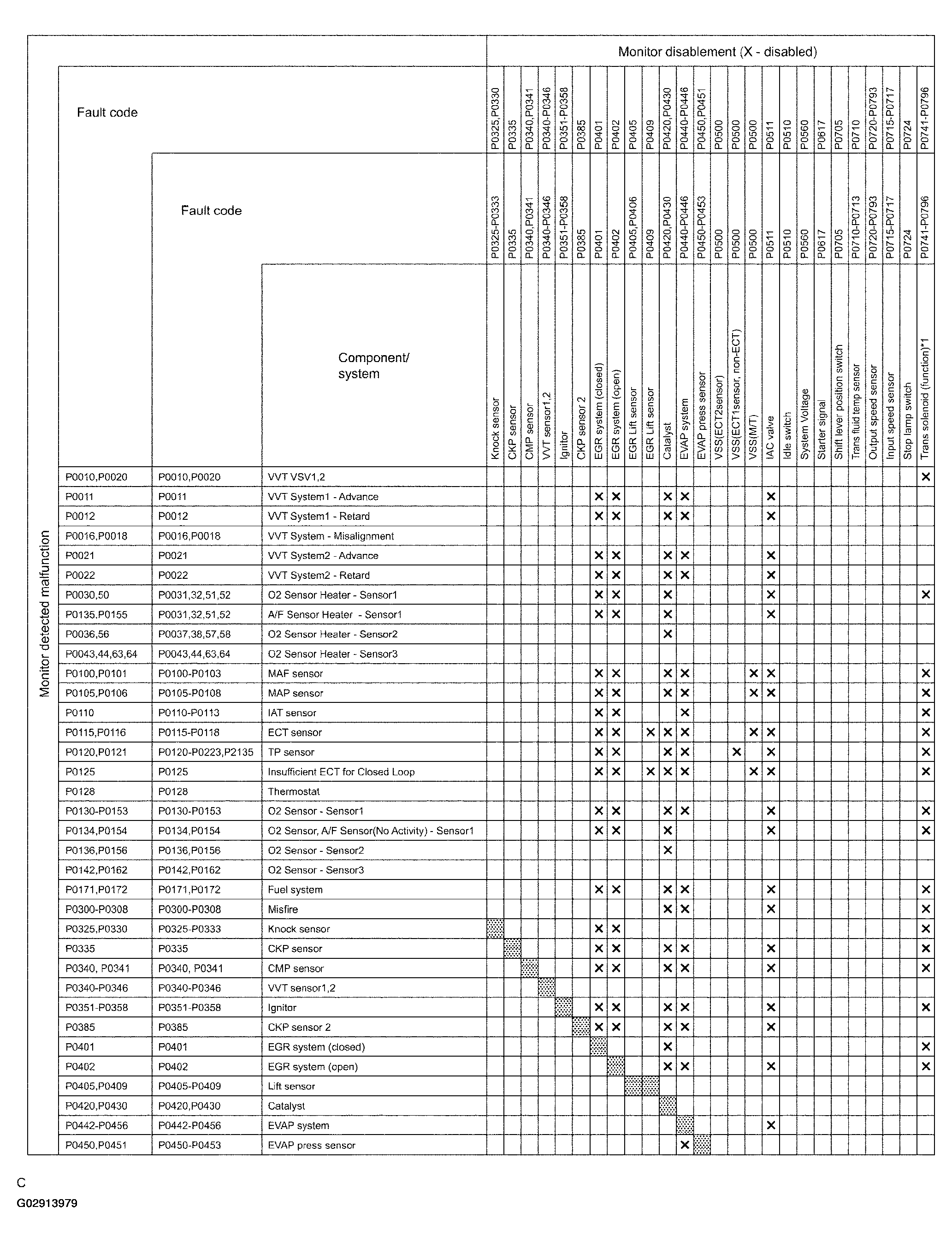

    Fig 10: Displaying Monitor Disablement Chart (3 of 6)
    G02913979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

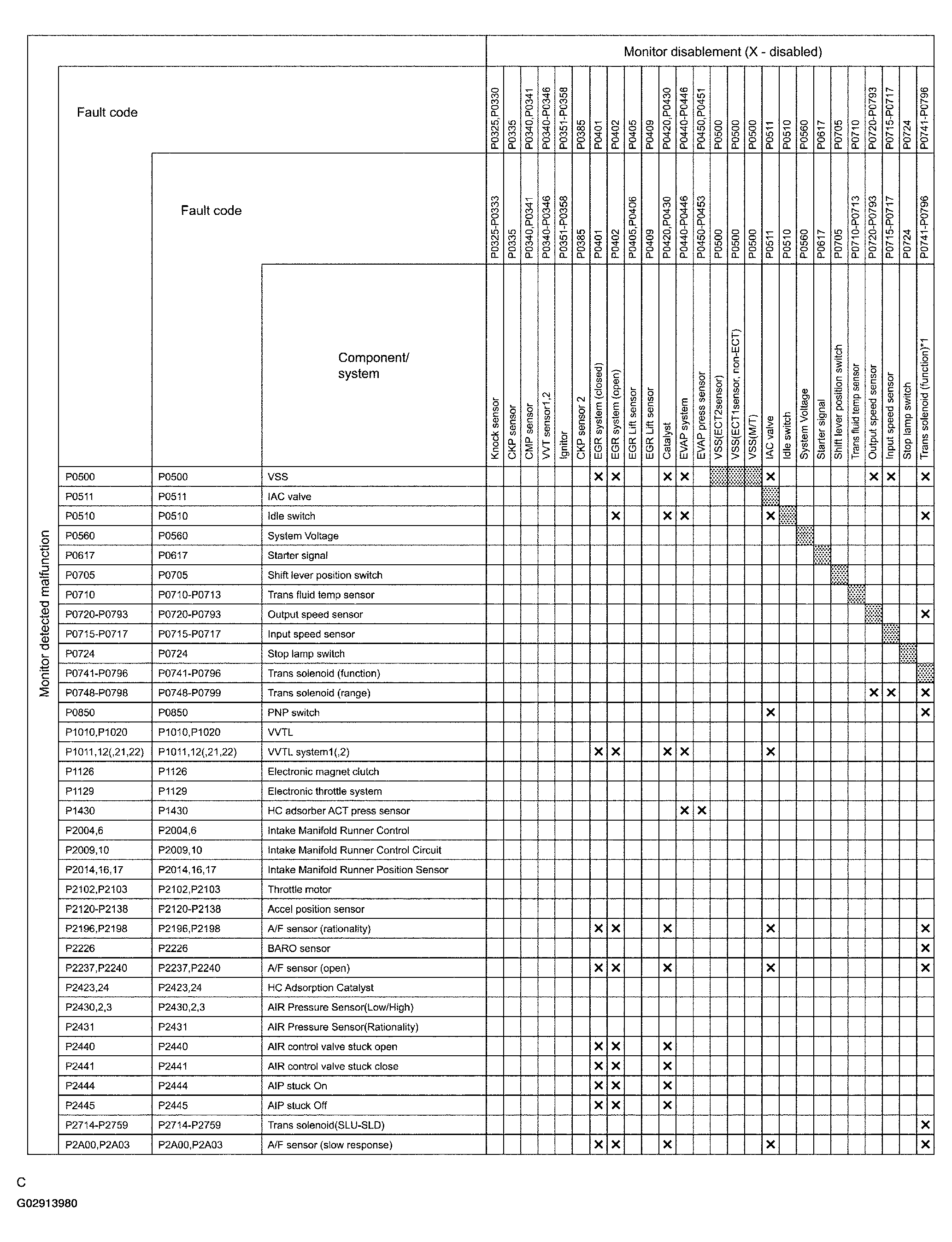

    Fig 11: Displaying Monitor Disablement Chart (4 of 6)
    G02913980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Note * 1: Without input speed sensor

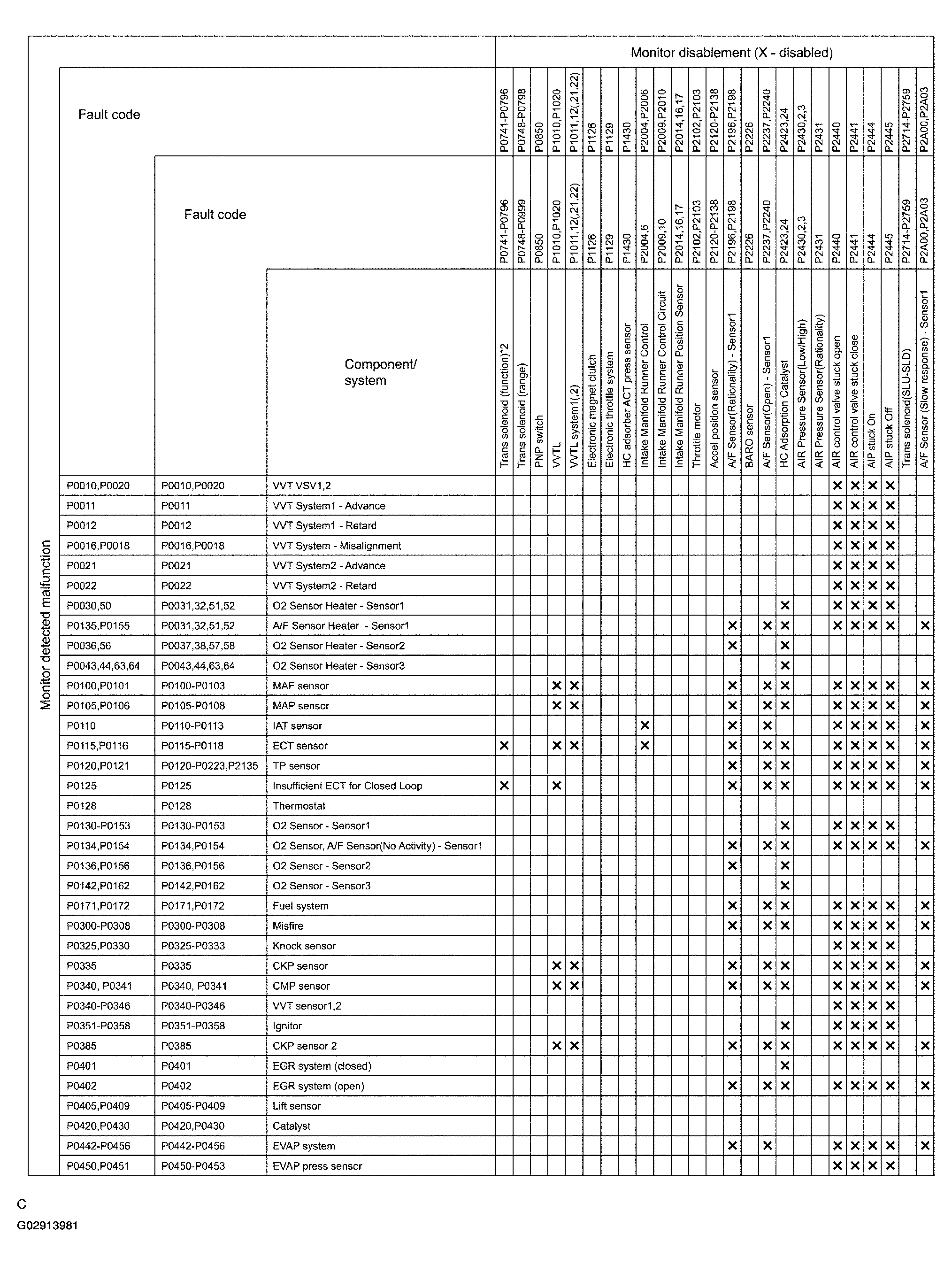

    Fig 12: Displaying Monitor Disablement Chart (5 of 6)
    G02913981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Note * 2: With input speed sensor

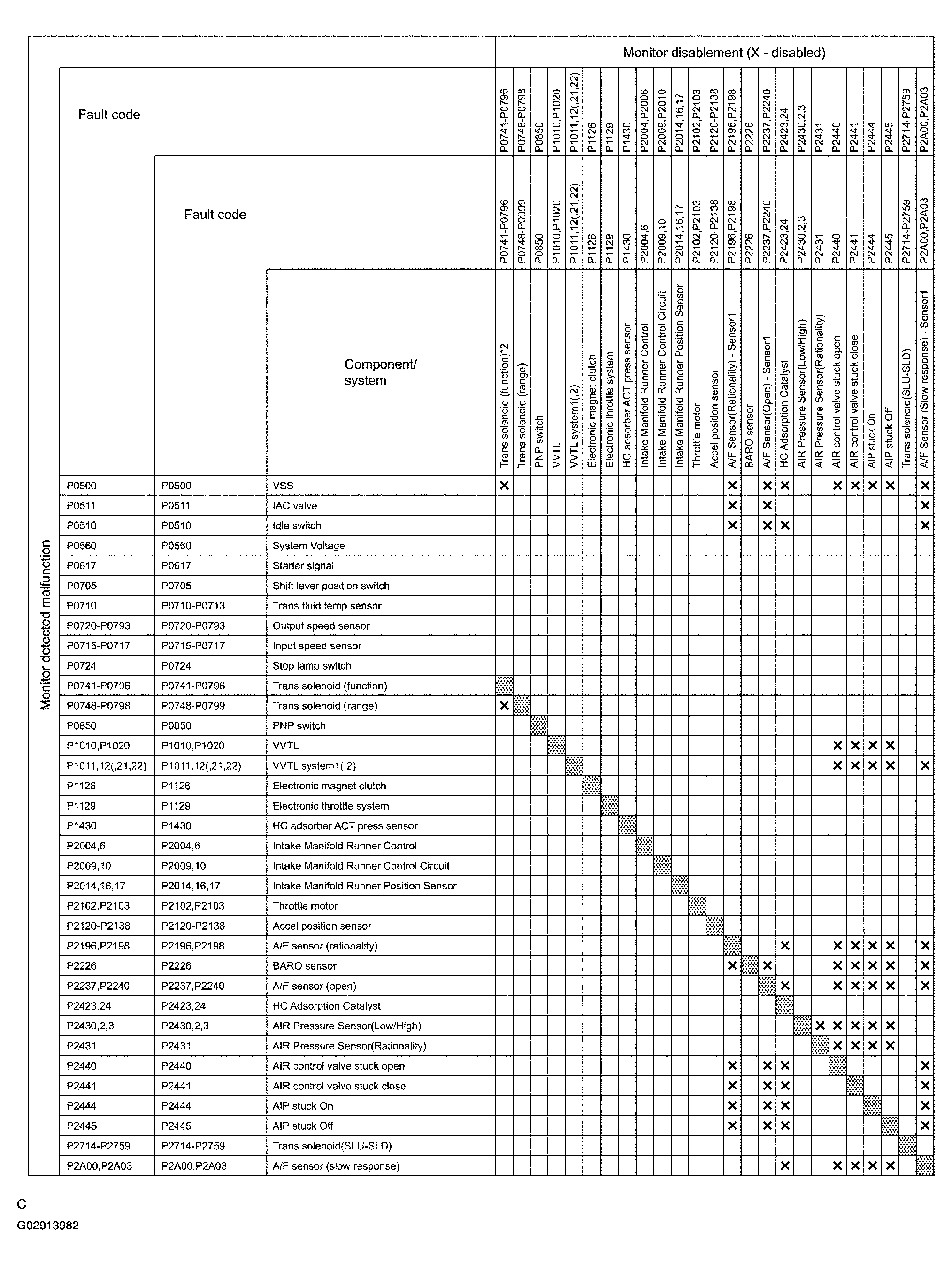

    Fig 13: Displaying Monitor Disablement Chart (6 of 6)
    G02913982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Note * 2: With input speed sensor
  8. Fail-Safe Operation
    NOTE: * : When operation "engine is stopped by fuel cut" is performed by the fail-safe function, the ECM detects P1646 and P0860 simultaneously (DTC P1646 TRANSMISSION CONTROL ECU MALFUNCTION ).

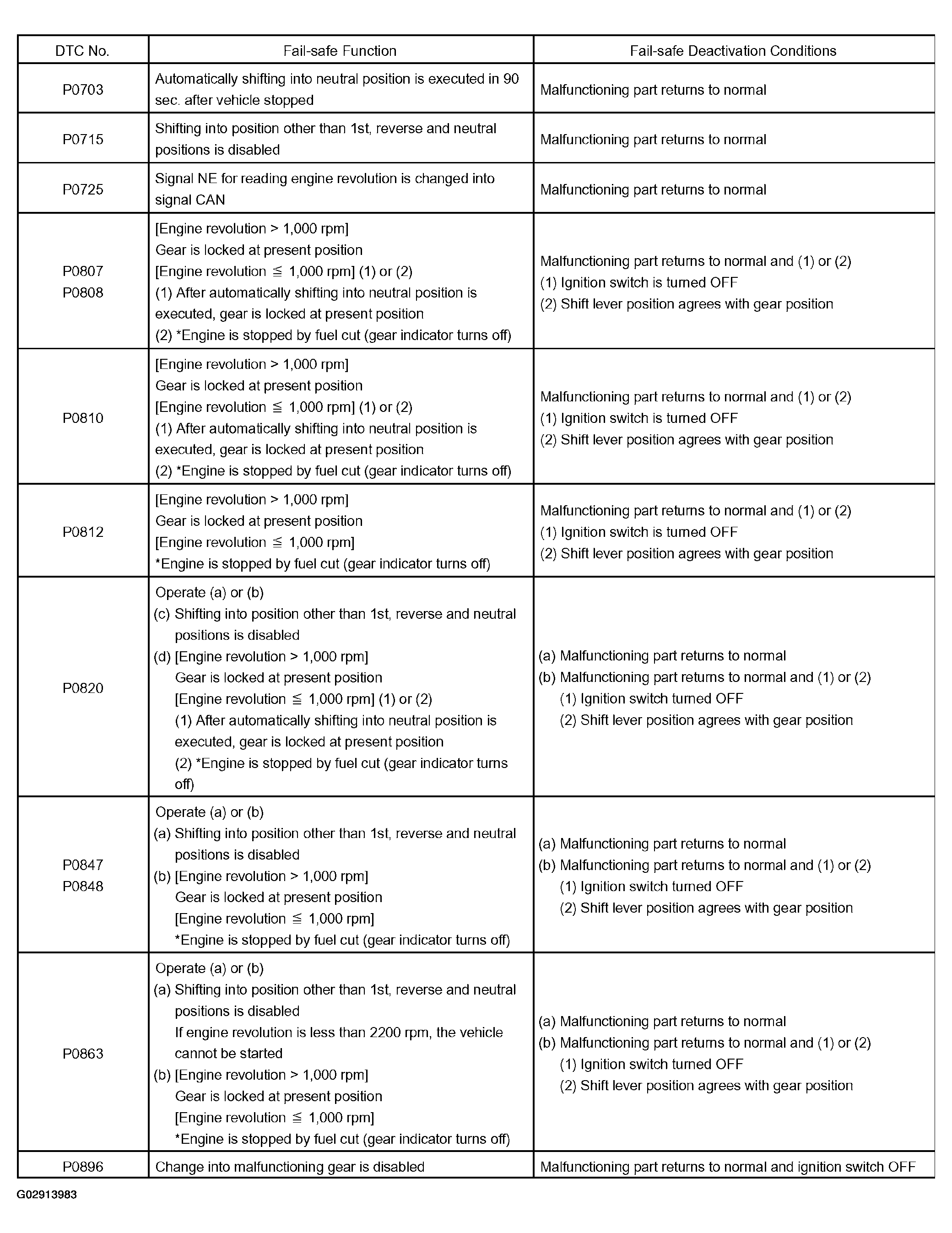

    Fig 14: Displaying Fail-Safe Operation Table (1 of 3)
    G02913983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

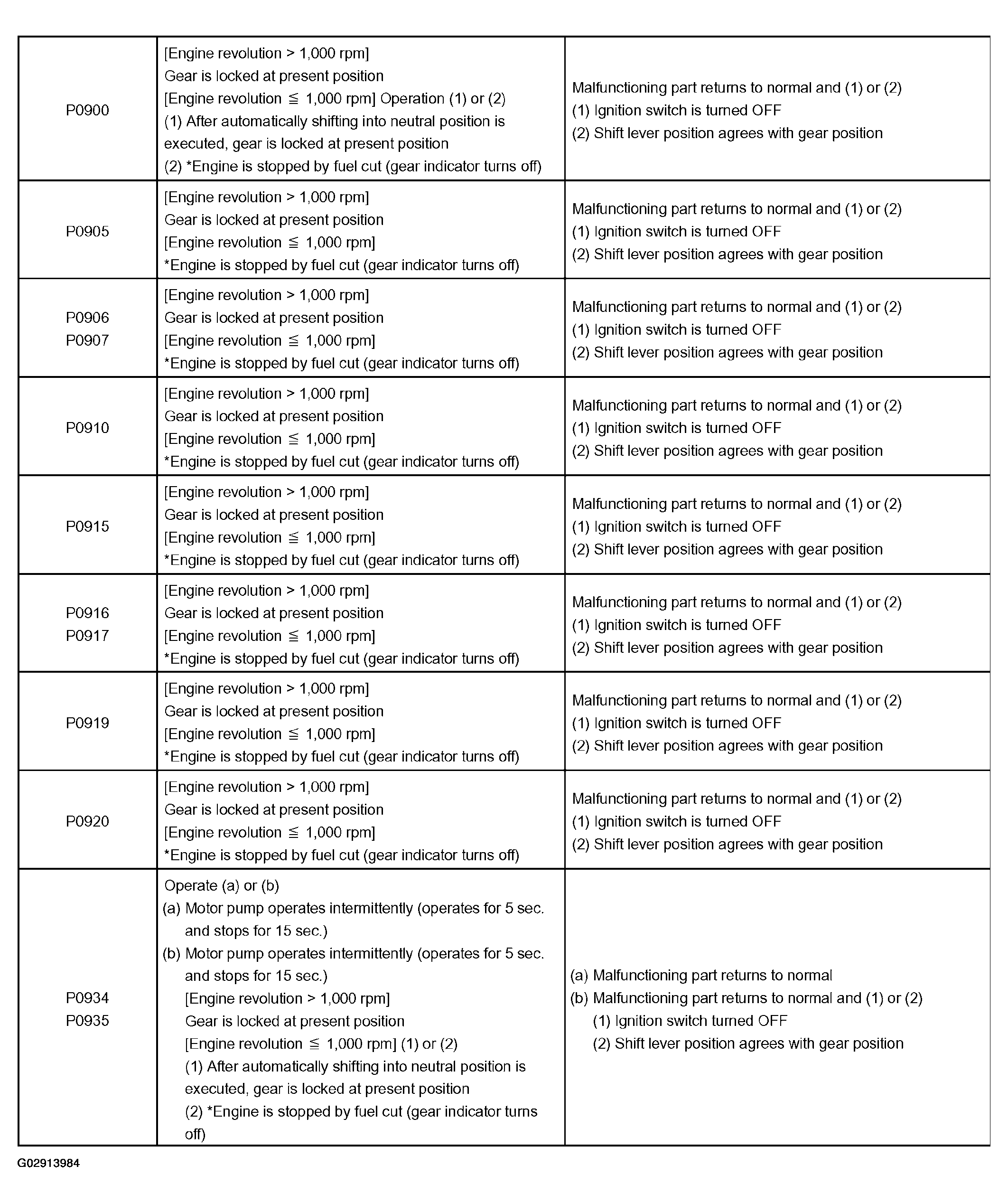

    Fig 15: Displaying Fail-Safe Operation (2 of 3)
    G02913984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

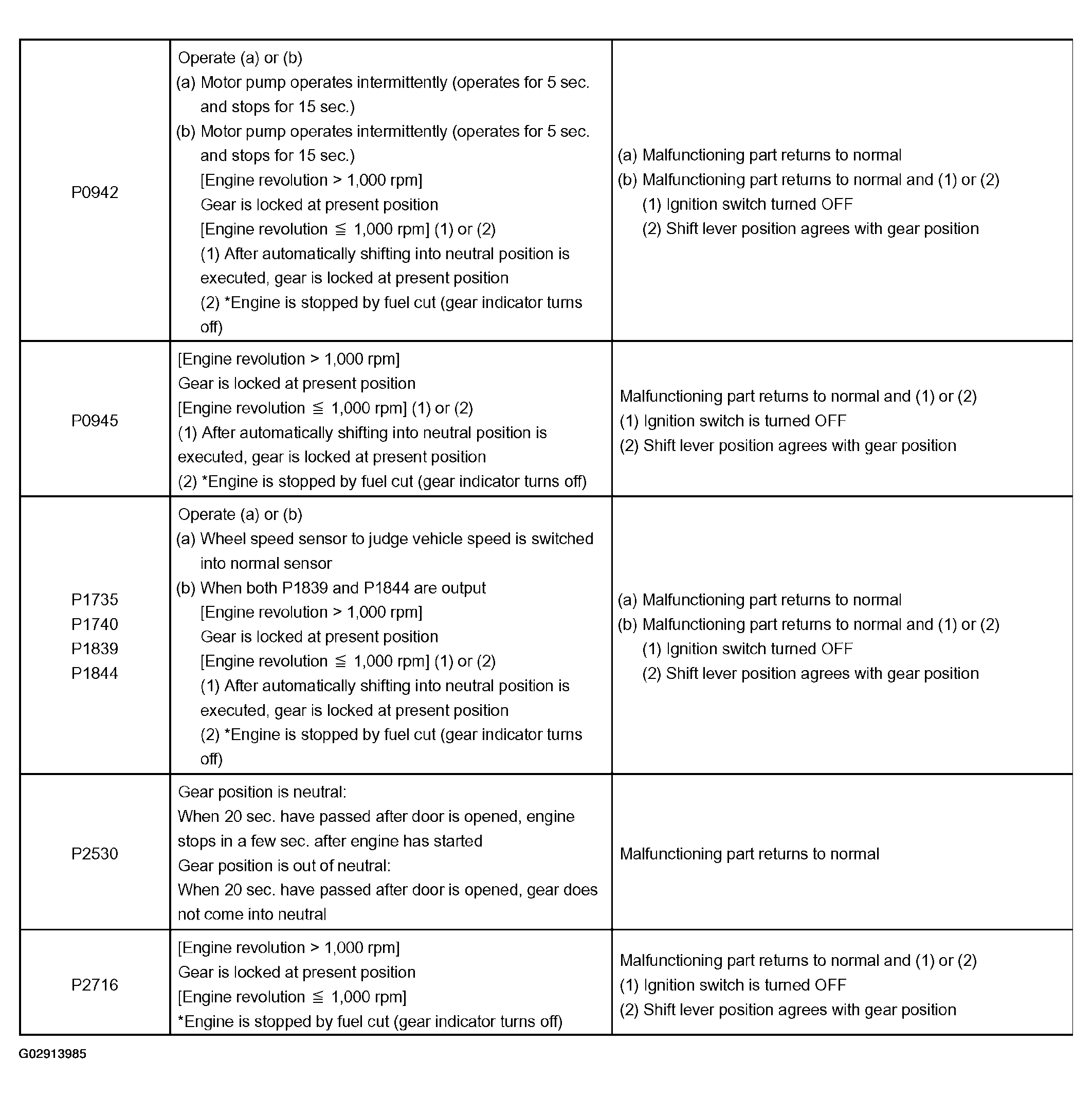

    Fig 16: Displaying Fail-Safe Operation Table (3 of 3)
    G02913985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Reduce Pressure Inside Accumulator To 0 Bar
    NOTE: Before removing parts shown below from the body, reduce accumulator pressure.
    • HPU assembly
    • GSA assembly
    • Shift stroke sensor
    • Select stroke sensor
    • Clutch stroke sensor
    • Sub-wire harness
    • Transmission assembly
    • Clutch disc and cover
    1. Make sure the vehicle is in the following condition:
      • Shift the lever into the N position
      • Ignition switch OFF
      • Vehicle is on level surface (no incline)
    2. Remove the battery.
    3. Remove the R/B No. 3 and J/B No. 3 cover.
    4. Remove the HPU relay from the R/B No. 3 and J/B No. 3.
      Fig 17: Removing HPU Relay From R/B No. 3 & J/B No. 3
      G02913986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the battery and connect the battery terminals.
    6. Connect the hand-held tester to the DLC3.

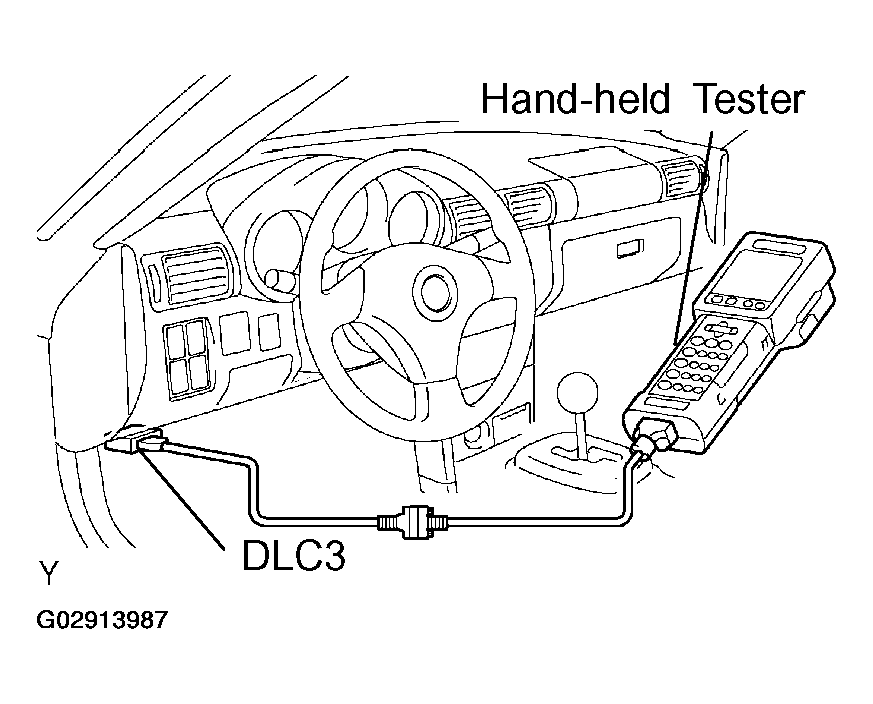

      Fig 18: Connecting Hand-Held Tester To DLC3
      G02913987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Turn the ignition switch ON and push the hand-held tester main switch ON.
    8. Select REDUC ACCM PRS on the ACTIVE TEST menu.
    9. Check the pressure inside accumulator by using hand-held tester.
      NOTE:
      • After this operation, the ACCUMULATOR PRESSURE screen is shown and the amount of the accumulator pressure is 0 bar. The reduction of the accumulator pressure is completed.
      • For details, refer to the hand-held tester operation manual.
    10. Turn the ignition switch OFF and disconnect the battery negative terminal.
  10. Check Sequential Transmission Fluid Level
    NOTE: Check the fluid level with the entire sequential manual transmission system connected and no pressure inside the accumulator.
    1. Park the vehicle on a level surface and set the parking brake.
    2. Reduce the accumulator pressure (see step  6).
    3. Remove the air cleaner box.
    4. Remove the protective cover from the reservoir tank to reveal the fluid level.
    5. Check that the fluid level is between the upper and lower level marks.
    NOTE: When adding sequential M/T fluid to the reservoir, use only sequential M/T fluid (part number: 08886-02206). This fluid is sold in one-liter containers. It is not interchangeable with brake fluid or ATF.

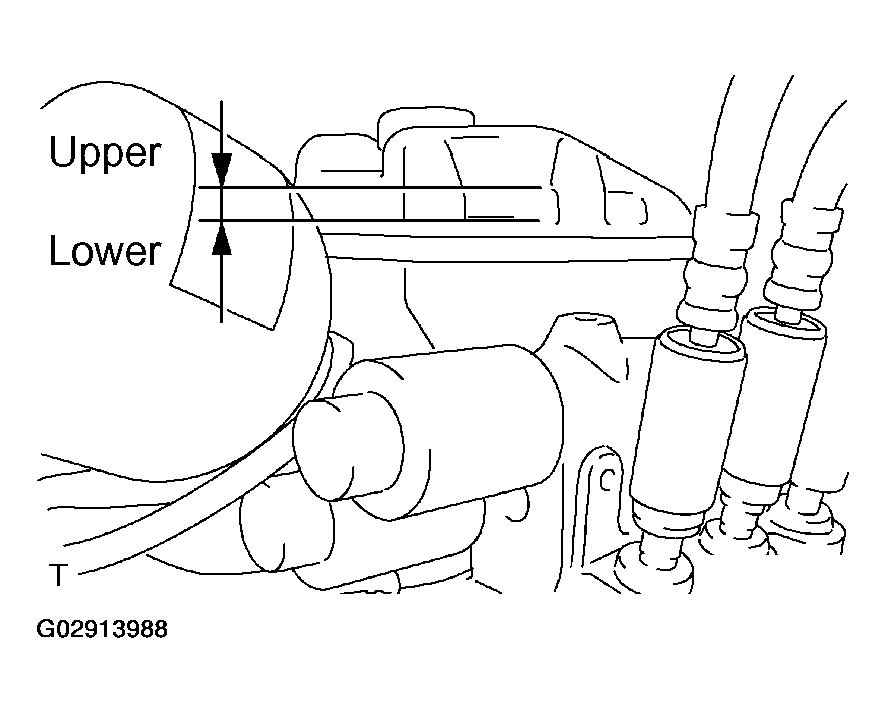

    Fig 19: Checking Fluid Level Between Upper & Lower Level Marks
    G02913988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Transmission Control ECU Replacement

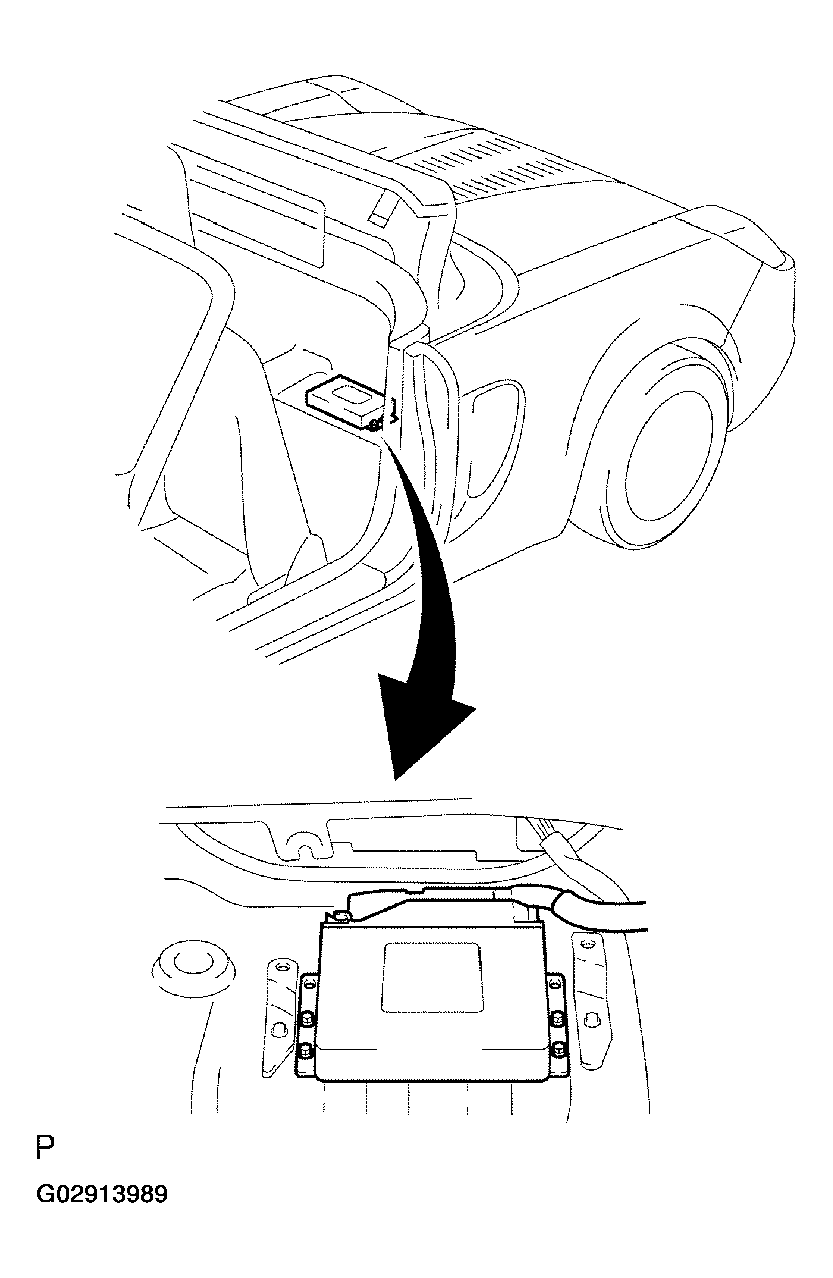

    Fig 20: Locating Transmission Control ECU (TCM)
    G02913989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    The transmission control ECU (TCM) is located under the panel behind the driver's seat.

    1. Record the radio station presets.
    2. Turn the ignition switch OFF and remove the key from the ignition switch.
    3. Disconnect the negative (-) terminal from the battery, or remove the SMT-B fuse from the F L Block and J/B No. 1.
      Fig 21: Locating SMT-B Fuse In F L Block & J/B No. 1
      G02913990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the four retaining bolts from the transmission control ECU mounting flanges before disconnecting the electrical connector of the ECU.
    5. Connect the electrical connector to the new transmission control ECU before securing the ECU with the four retaining bolts.
    6. Reinstall the SMT-B fuse or reconnect the negative (-) terminal to the battery.
    7. Perform "Initial Learning of Transmission Control ECU" (refer to step 12).

    Fig 22: Connecting Electrical Connector To New Transmission Control ECU
    G02913991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. Initial Learning Of Transmission Control ECU
    NOTE: First replace the following parts.
    • Transmission assembly or transmission component parts
    • Clutch disc or related components
    • Transmission control ECU (TCM)
    • Hydraulic power unit (HPU) assembly
    • Gear shift actuator (GSA) assembly
    • Shift stroke sensor
    • Select stroke sensor
    • Clutch stroke sensor

    Before beginning, prepare the vehicle with the following conditions:

    • Stop the vehicle.
    • Close the driver's door (the door courtesy light switch provides a ground for the TCM).
    • Move the shift lever into the N position.
    • Make sure that the ignition switch has been OFF for 15 seconds or more.

    1. Turn ignition switch ON (do not start engine) and wait one minute or more
      Fig 23: Locating Gear Position Indicator
      G02913992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      RESULT:

      Then N of the gear position indicator illuminates.

      If not, repeat this step.

      NOTE: The indicator may display s6, s5, s4, s3, s2, s1 consecutively before the N light illuminates.
      1. NO : Go to step   4
      2. YES : Go to next step
    2. Start engine
      CAUTION: The N of the gear position indicator will flash and warning buzzer may sound.

      RESULT:

      Within 10 seconds, the N light changes from flashing status to illuminated status.

      If not, repeat steps 1 and 2.

      1. NO : Go to step   4
      2. YES : Go to next step

    3. Move shift lever into S position. Drive vehicle between 5 - 20 mph in 1st gear.

      RESULT:

      Sequential manual transmission (SMT) warning light flashes for approximately 1 second.

      If not repeat this step.

      Fig 24: Locating Sequential Manual Transmission Light Indicator
      G02913993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. NO : Go to step   4 .
      2. YES : Initial learning procedure is completed. Test drive to verify SMT is shifting normally.
    4. Align shift and select rod in neutral position.
      1. Turn the ignition switch OFF and remove the key from the ignition switch.
      2. Disconnect the negative (-) terminal from the battery and wait at least one minute.
      3. Make sure that the shift and select rod is in the neutral position (hole pointing straight up and down). If not, insert a screwdriver into the hole and move the rod right or left into neutral position. The rod will move freely in the directions of the 8 arrow marks in the illustration.
        Fig 25: Inserting Screw Driver Into Hole & Moving The Rod Right Or Left Into Neutral Position
        G02913994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: There is no need to reduce accumulator pressure during this step, but the negative (-) terminal should remain disconnected from the battery.
      4. Have an assistant slowly turn the rear wheels. Turning the rear wheels will move the transmission gears to allow for better synchronization into each gear position during the initial learning process.
      5. Connect the negative (-) terminal to the battery and insert the key into the ignition switch.
      1. NEXT: Go to step   1

      If necessary, perform steps 1 to 4 several times until the N light illuminates.

  13. Perform Clutch Coast Learning Of Transmission Control ECU
    CAUTION: If the warning buzzer sounds after the initial learning of the transmission control ECU is performed, perform the clutch coast learning of the transmission control ECU according to the operation mentioned below.
    1. Start and warm up the engine. The water Temperature should be 35°C (95°F) or more.
    2. After starting with the shift lever in 1st gear, shift up to 3rd gear.
    3. With the shift lever in 3rd gear, accelerate the engine to 3,000 RPM or more.
    4. From the condition in (c), release the accelerator pedal and decelerate the engine to 3,000 RPM or less.
      NOTE: At this time, do not use the brakes.
    5. When the engine reaches 3,000 RPM, shift the gear from 3rd to 2nd.
    6. Maintaining the conditions of (e), keep coasting until the engine reaches 2,000 RPM or less.
      NOTE:
      • Accelerator: OFF
      • Brake: OFF
    7. In order to secure this learning, repeat the above operations 3 times.
    8. Check that the clutch coast learning is finished completely.
      CAUTION:
      • To ensure safety, conduct this test in a wide, clear area with a level surface which provides good traction.
      • This test should always be carried out in pairs. One technician should be observing the wheels or checking the wheel stoppers outside the vehicle, while the other is doing the test.
      1. Check the 4 wheels.
      2. Fully apply the parking brake.
      3. Keep your left foot firmly pressed on the brake pedal.
      4. Start the engine.
      5. Check that the engine is running at 700 +/- 50 RPM.
      6. Shift to the 2nd gear.
      7. Fully depress the accelerator pedal with your right foot.
      8. Check that the warning buzzer (long pulse sound) does not sound within 3 seconds.

      If the warning buzzer sounds, start again from step (b).

  14. Sequential Manual Transmission Operating Condition
    NOTE: The values given below for "Normal Condition" are reference values only. A vehicle may still be normal even if its value differs from those listed below. Do not depend solely on the "Normal Condition" column when deciding whether a part is faulty or not.

    CARB mandated signals.

    SEQUENTIAL MANUAL TRANSMISSION OPERATING CONDITION

    Hand-held tester display Measurement Item Normal Condition (1)*
    COOLANT TEMP Engine coolant temperature After warming up: 80°C to 95°C
    ENGINE REV Engine revolution Idling: 650 to 750 RPM
    VEHICLE SPD Vehicle speed Vehicle stopped: 0 km/h
    SHIFT PRESSURE Shift pressure Within 5 seconds after changed gear: 20 bar
    ACCUM PRESSURE Accumulate pressure 38 to 55 bar
    GEAR POS-CUR Gear position (current) Same as gear shift indicator
    WHEEL SPD FR Wheel speed front right Vehicle stopped: 0 RPM 60 km/h (38 mph): same wheel speed as others at 500 to 600 RPM
    WHEEL SPD FL Wheel speed front left Vehicle stopped: 0 RPM 60 km/h (38 mph): same wheel speed as others at 500 to 600 RPM
    WHEEL SPD RR Wheel speed rear right Vehicle stopped: 0 RPM 60 km/h (38 mph): same wheel speed as others at 500 to 600 RPM
    WHEEL SPD RL Wheel speed rear left Vehicle stopped: 0 RPM 60 km/h (38 mph): the same wheel speed as others at 500 to 600 RPM
    T/M SHAFT SPD Transmission input shaft speed Vehicle stopped (stopped in 1st or reverse gear): 0 RPM Running in constant speed in 2nd, 3rd, 4th, and 5th gears at 2,000 RPM or more: Same as engine RPM
    SHIFT CHEK SIG4 Shift lever check signal 4 Shift lever from N to R position: OFF to ON
    SHIFT CHEK SIG3 Shift lever check signal3 Shift lever from N to S position: ON to OFF
    SHIFT CHEK SIG2 Shift lever check signal 2 Move the shift lever from S to - and hold the shift lever at -: ON to OFF
    SHIFT CHEK SIG1 Shift lever check signal 1 Move the shift lever from S to + and hold the shift lever at +: ON to OFF
    SHIFT SW SIG4 Shift lever switch signal 4 Shift lever from N to R position: ON to OFF
    SHIFT SW SIG3 Shift lever switch signal 3 Shift lever from N to S position: OFF to ON
    SHIFT SW SIG2 Shift lever switch signal 2 Move the shift lever from S to - and hold the shift lever at -: OFF to ON
    SHIFT SW SIG1 Shift lever switch signal 1 Move the shift lever from S to + and hold the shift lever at +: OFF to ON
    T/M N SW SIG Transmission neutral switch signal Shift lever in N position: ON Shift lever in S or R position: OFF
    MOT RELAY SIG Motor pump relay signal Motor pump ON: ON
    T/M R SW SIG Transmission reverse switch signal Shift lever in R position and back up lamp ON: ON
    IGNITION SIG Ignition signal Ignition ON: ON
    DOOR LAMP SIG Door light signal Driver's door opened: ON (DOOR indicator is ON)
    CAN COMMUNICAT CAN communication signal 5 seconds after turned ignition switch ON: ON
    STR SW DOWN Steering switch signal down Keep pushing steering DOWN switch: ON
    STR SW UP Steering switch signal up Keep pushing steering UP-switch: ON
    DRIV F-GER NUM Final drive gear teeth number Ignition ON: 16
    DRIVN F-GER NUM Final driven gear teeth number Ignition ON: 69
    (1) * : If "Idling" conditions are not specified, it means the shift lever is in the N position, the A/C switch is OFF and all the accessory switches are OFF.
scientia non olet · About LEMON Manuals
