Differential Case: Replacement

Transmission Case Side:REPLACE OIL SEAL AND TAPERED ROLLER BEARING OUTER RACE

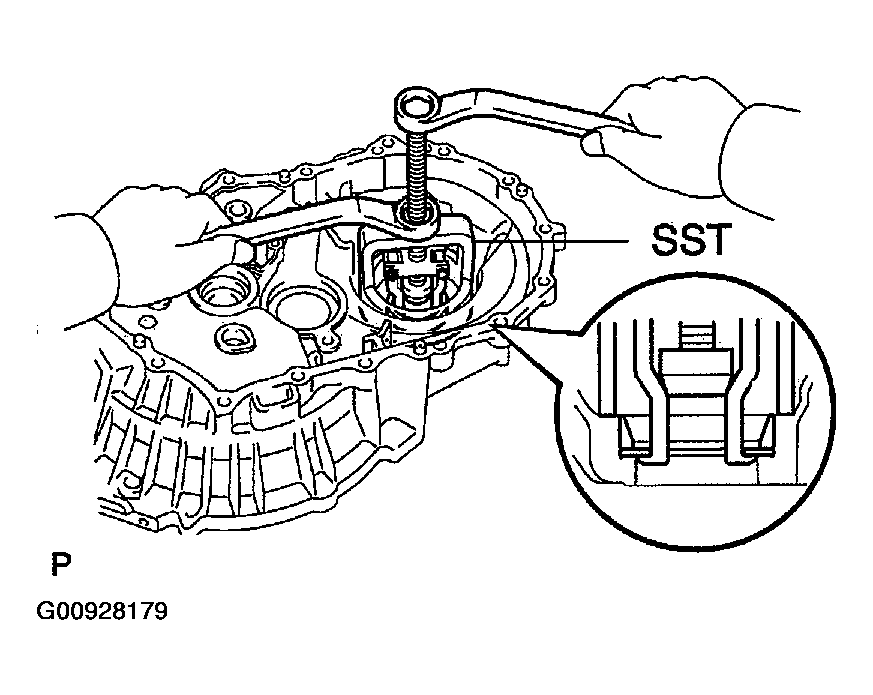

1. Using SST, remove the tapered roller bearing outer race and shim.
  SST 09612-65014

  Fig 1: Removing Tapered Roller Bearing Outer Race And Shim Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the oil seal.
  SST 09226-10010

  Fig 2: Identifying Tap Out Oil Seal Using SST And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

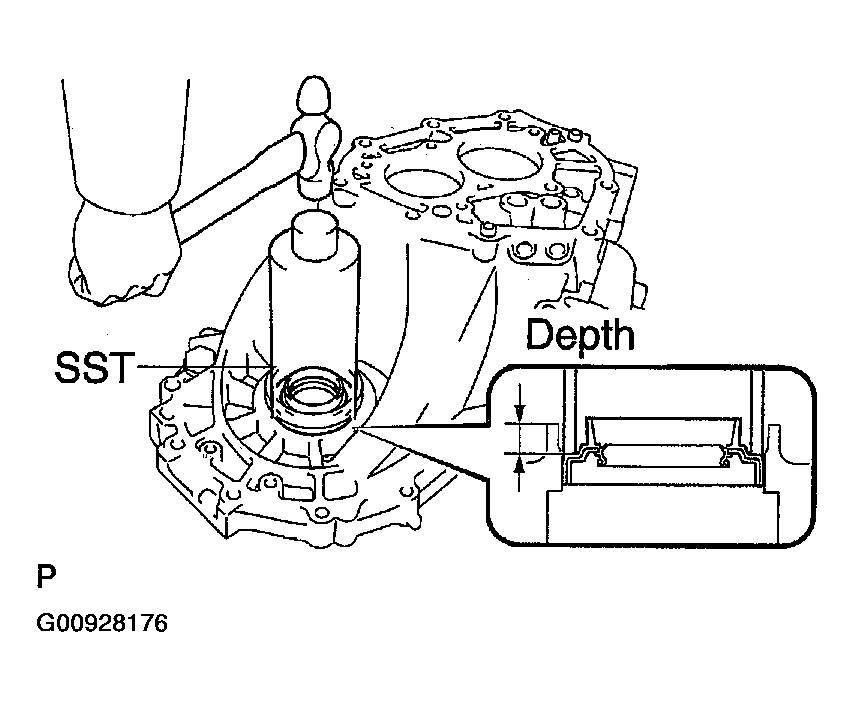

3. Using SST and a hammer, tap in a new oil seal.
  SST 09226-10010
  1. Depth: 9.9 +/- 0.3 mm (0.390 +/- 0.012 in.)
4. Coat the lip of the oil seal with MP grease.
5. Place the shim into the differential case.
  HINT:

  In case that the tapered roller bearing is new, install the shim by selecting among the thin ones. In case that the tapered roller bearing is a used one, its better to install the shim which has the same thickness before disassembling.

  Fig 3: Identifying Tap Out Oil Seal Using SST And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

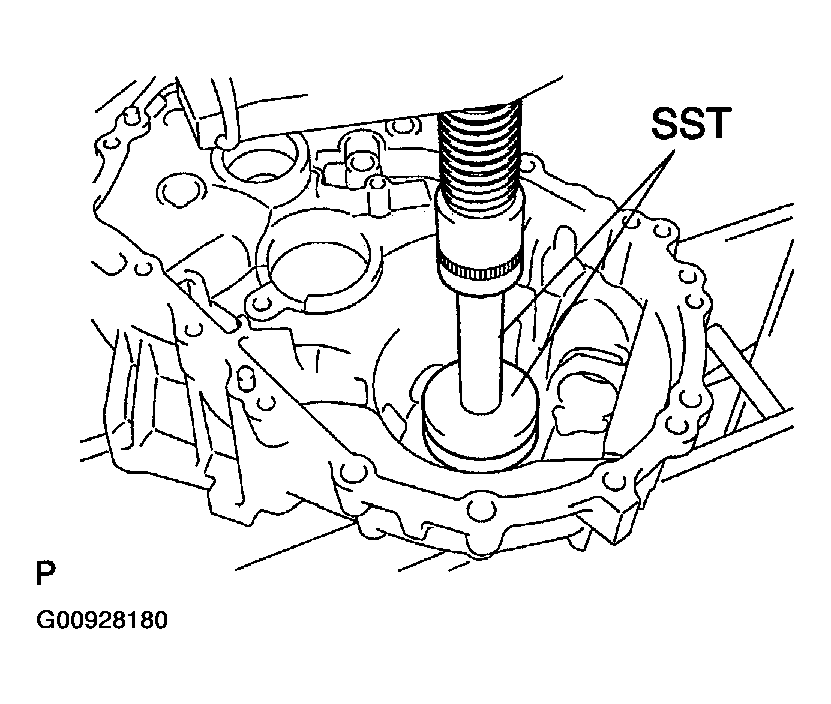

6. Using SST and a press, press in a new tapered roller bearing outer race.
  SST 09950-60020 (09951-00710), 09950-70010 (09951-07150)
NOTE: When replacing the tapered roller bearing outer race, replace the tapered roller bearing along with it.

Fig 4: Pressing New Tapered Roller Bearing Outer Race Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transaxle Case Side:REPLACE OIL SEAL AND TAPERED ROLLER BEARING OUTER RACE

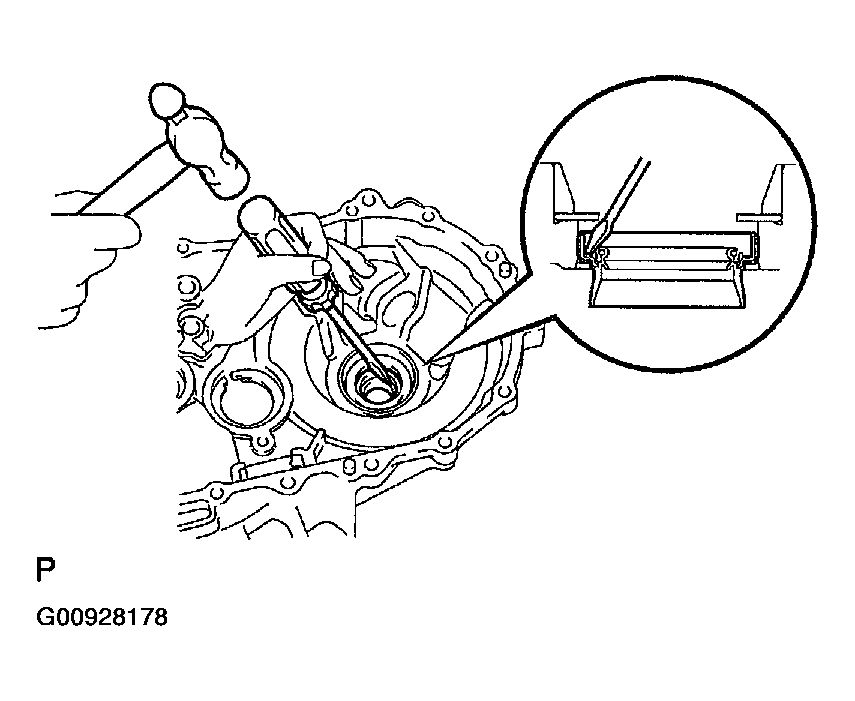

1. Using a screwdriver and a hammer, tap out the oil seal.

  Fig 5: Identifying Tap Out Oil Seal Using Screwdriver And Hammer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

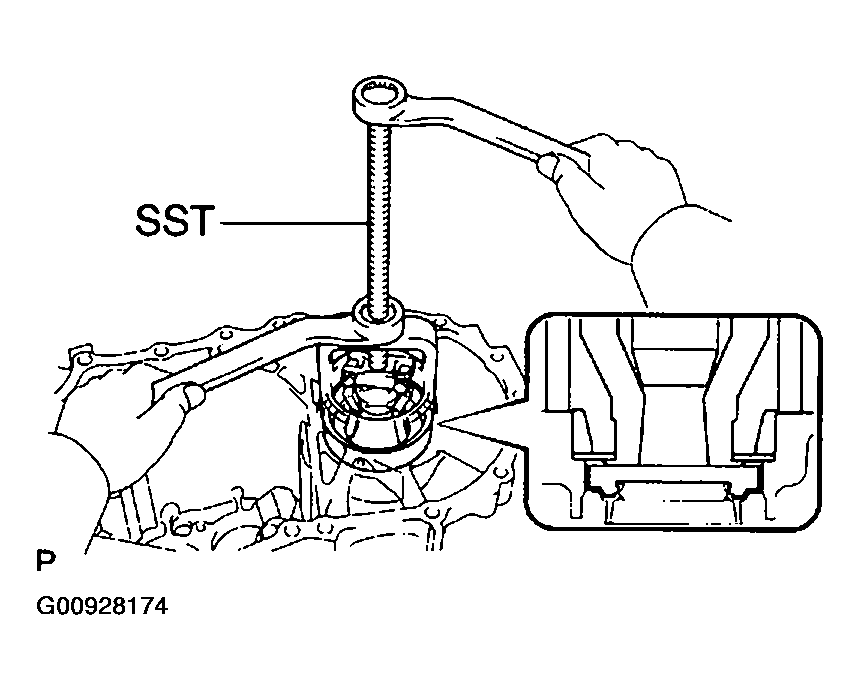

2. Using SST, remove the tapered roller bearing outer race and spacer.
  SST 09612-65014
3. Place the spacer into the differential case.

  Fig 6: Removing Tapered Roller Bearing Outer Race And Spacer Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

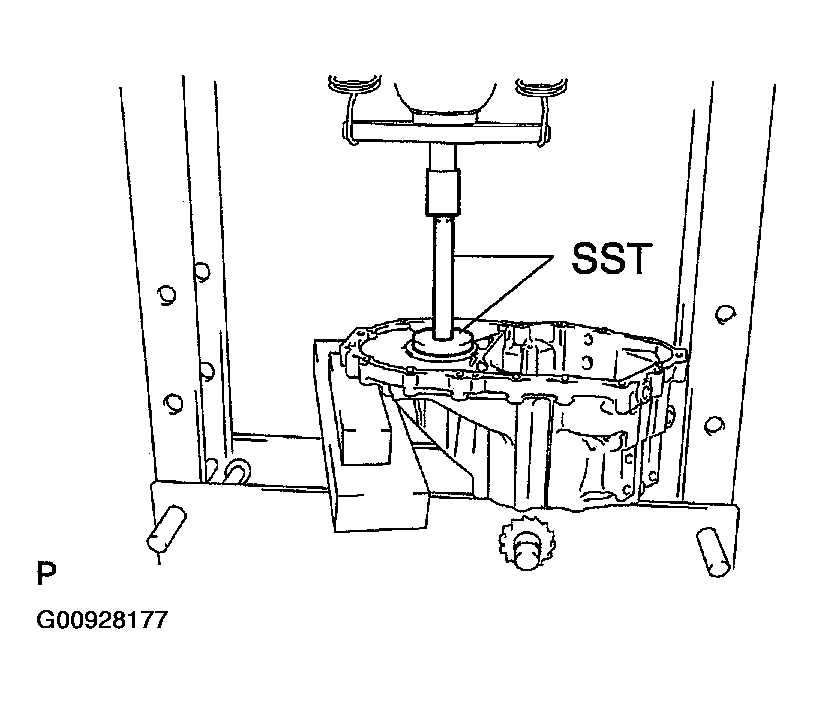

4. Using SST and a press, press in a new tapered roller bearing outer race.
  SST 09950-60020 (09951-00680), 09950-70010 (09951-07150)

  NOTE: When replacing the tapered roller bearing outer race, replace the tapered roller bearing along with it.

  Fig 7: Pressing New Tapered Roller Bearing Outer Race Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

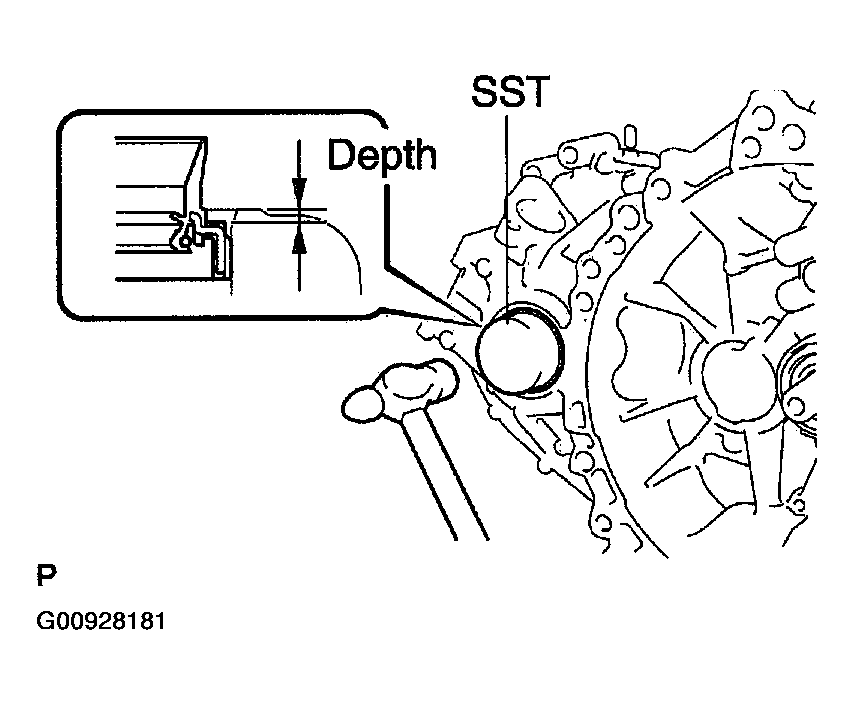

5. Using SST and a hammer, tap in a new oil seal.
  SST 09710-28021 (09710-08041)
  1. Depth: 1.9 +/- 0.3 mm (0.075 +/- 0.012 in.)
6. Coat the lip of the oil seal with MP grease.
Fig 8: Identifying Tap In A New Oil Seal Using SST And Hammer
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
