Shift Lever: Reassembly

1. Install the link to the plunger.
2. Using a plastic-faced hammer, tap in a new slotted spring pin.
   1. Protrusion: 6 mm (0.24 in.)
3. Install the compression spring and the link assembly to the shift lock solenoid.
   Fig 1: Installing Compression Spring And Link Assembly To Shift Lock Solenoid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

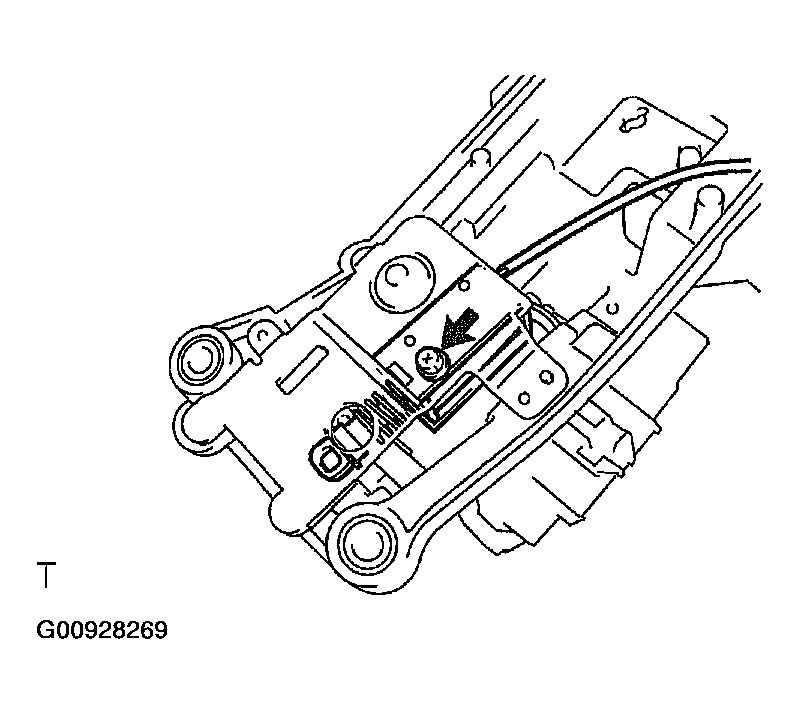

4. Install the shift lock solenoid assembly with the bolt.
5. Disconnect the connector from the shift lock ECU.
   Fig 2: Disconnecting Connector From Shift Lock ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the 2 terminals to the connector.
7. Reconnect the connector to the shift lock ECU.

Fig 3: Reconnecting Connector To Shift Lock ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

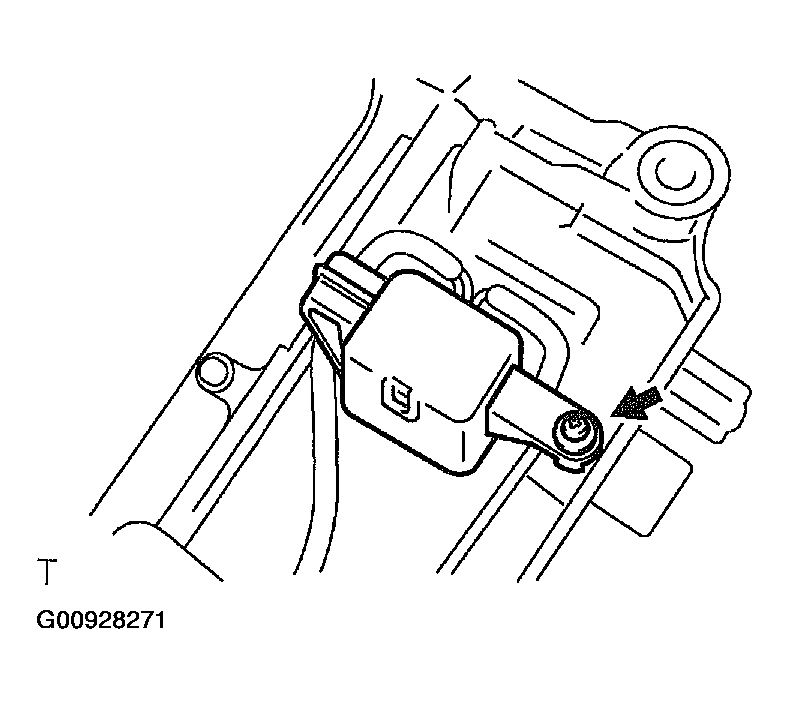

Install the shift lock ECU with the bolt.

Fig 4: Installing shift lock ECU with bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the 2 terminals to the connector.
2. Lock the secondary locking device.
3. Connect the clamp to the shift lever assembly.
4. Install the bulb to the shift illumination lamp wire subassembly.
5. Install the shift illumination lamp wire subassembly to the shift lever subassembly.

Fig 5: Connecting Terminals To Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

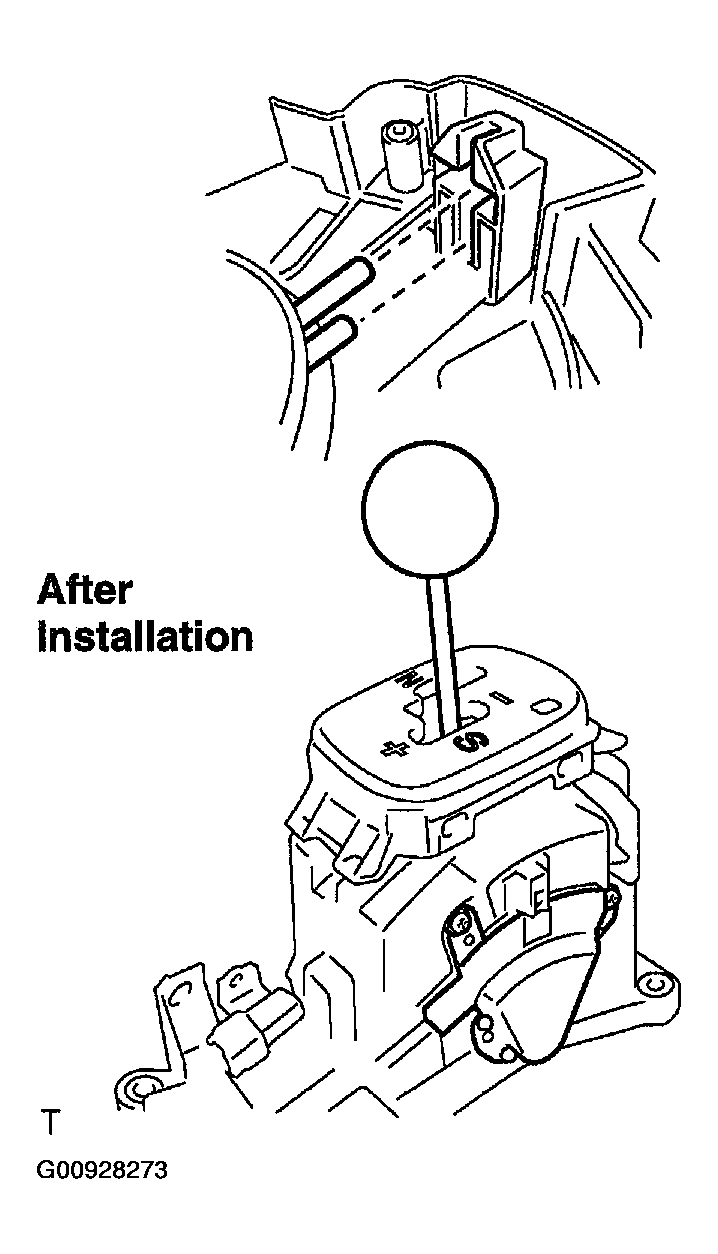

Install the shift position sensor with the 3 bolts.

HINT:

Move the shift lever into the S position as shown in the illustration, and then install the shift position sensor.

Fig 6: Installing Shift Position Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Since the slide cover has a characteristic of direction-oriented, be sure to install it as shown in the illustration.
