Oil Pump: Components

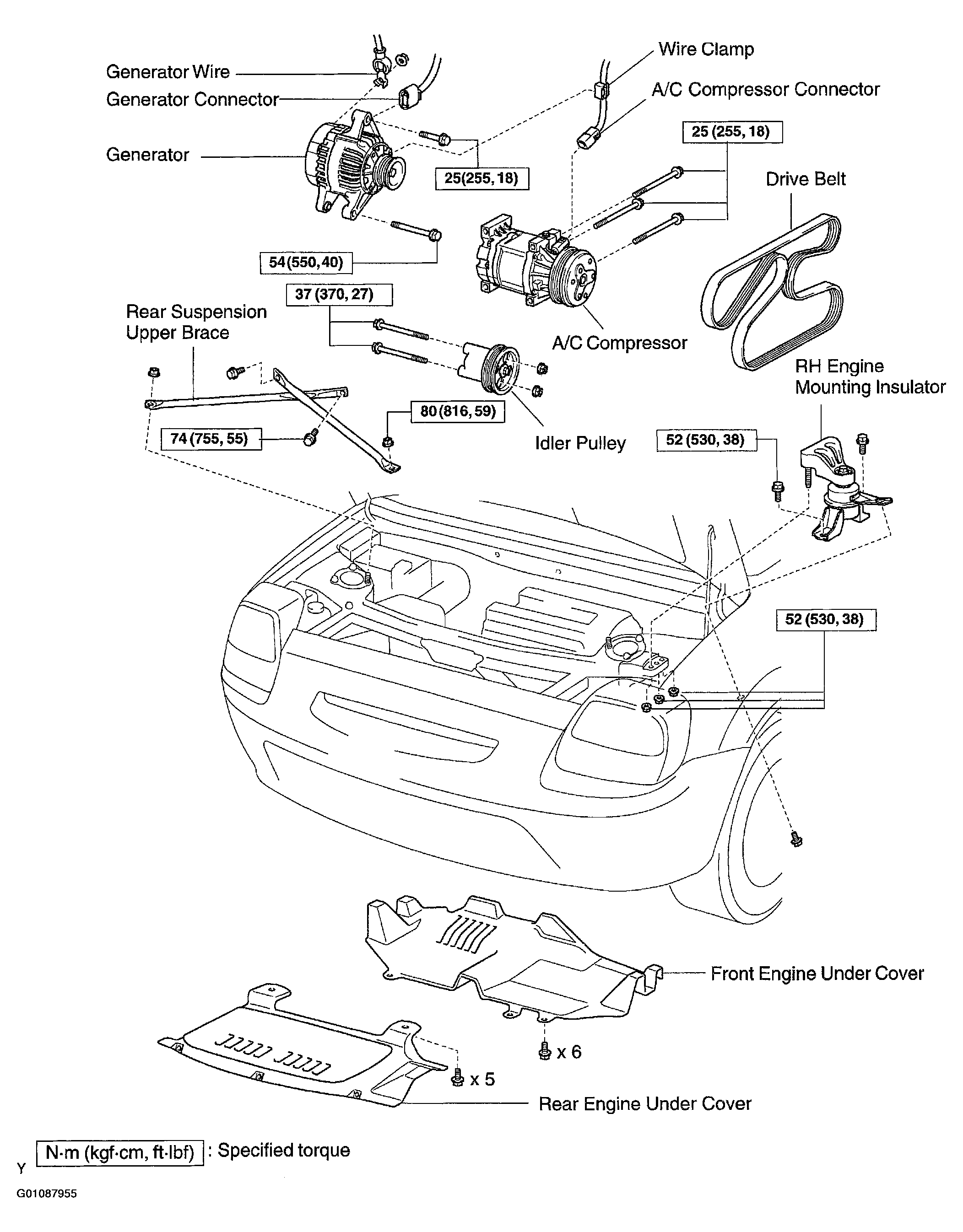

Fig 1: Identifying Engine Components To Remove To Replace Oil Pump (1 Of 2)
G01087955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

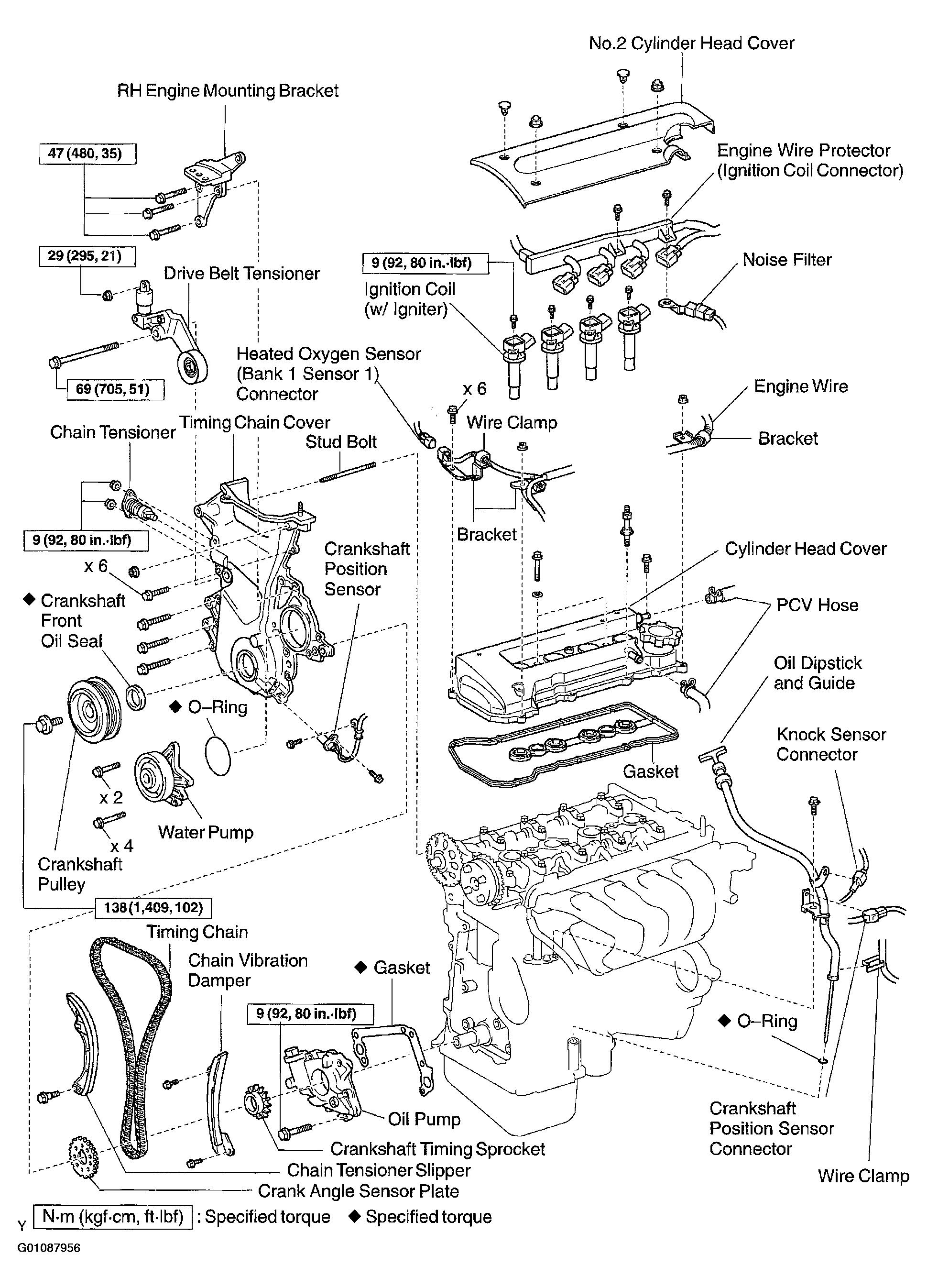

Fig 2: Identifying Engine Components To Remove To Replace Oil Pump (2 Of 2)
G01087956Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

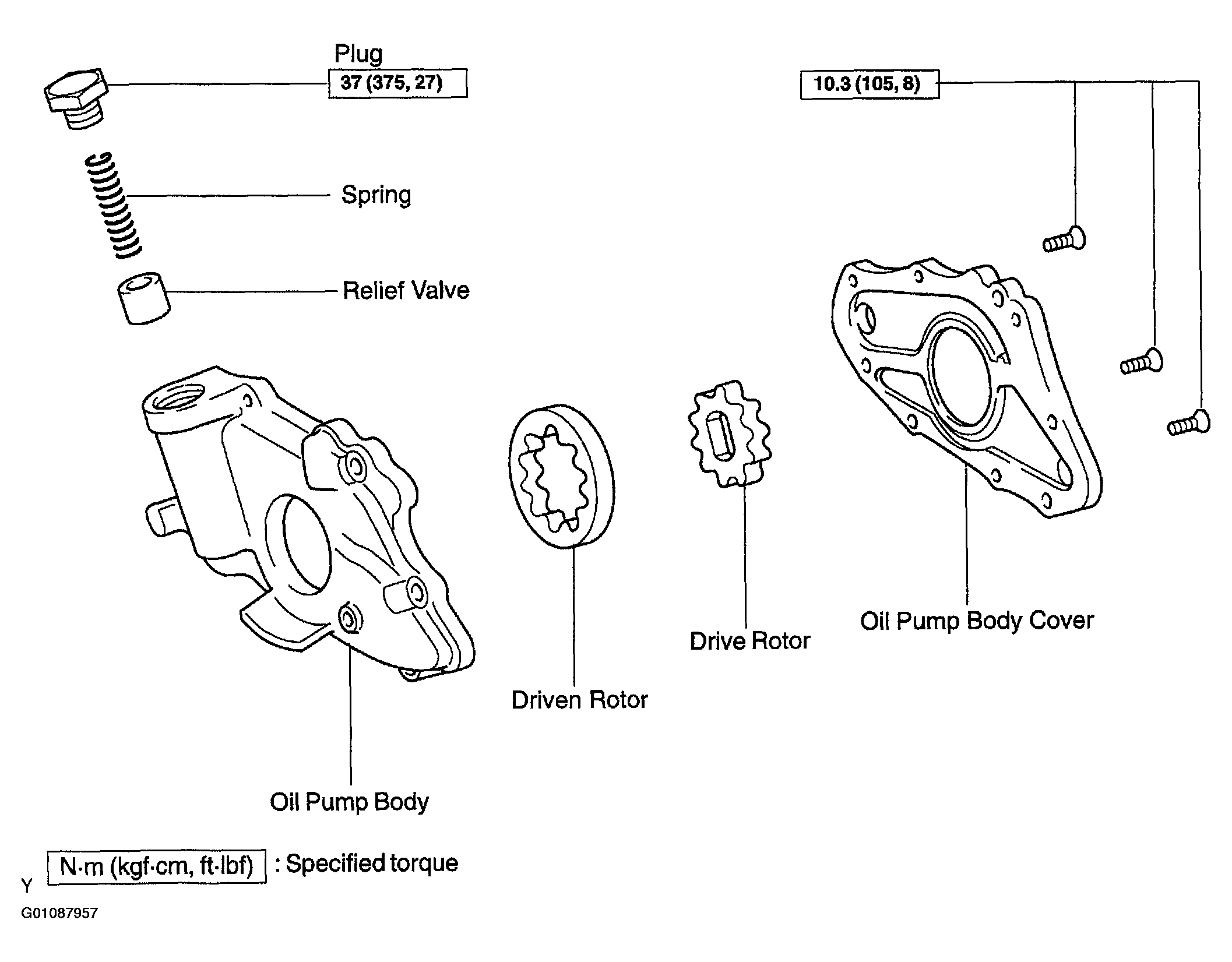

Fig 3: Identifying Oil Pump Components
G01087957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
