Diagnostic Trouble Code Chart

NOTE: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table below. For details of each code, refer to the DTC No. in the DTC chart.

NOTE:

When DTCs are simultaneously output in the following combinations, obey the inspection priority shown in the table below.

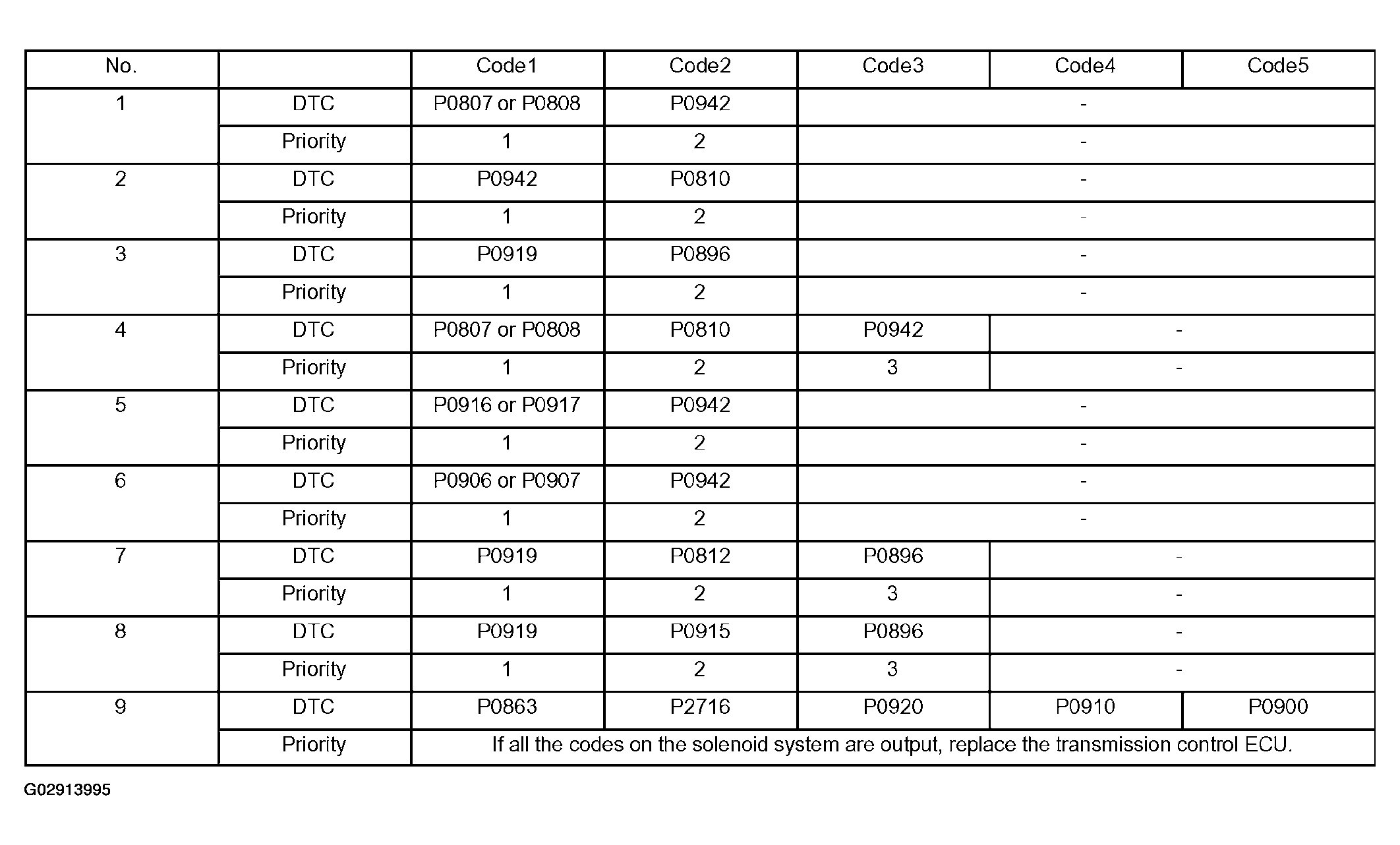

Fig 1: Displaying DTC Code Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
When DTCs are simultaneously output in other combinations than ones shown above, obey the inspection priority shown in the table below.

If output DTCs have the same priority, the inspection order is not compulsory.

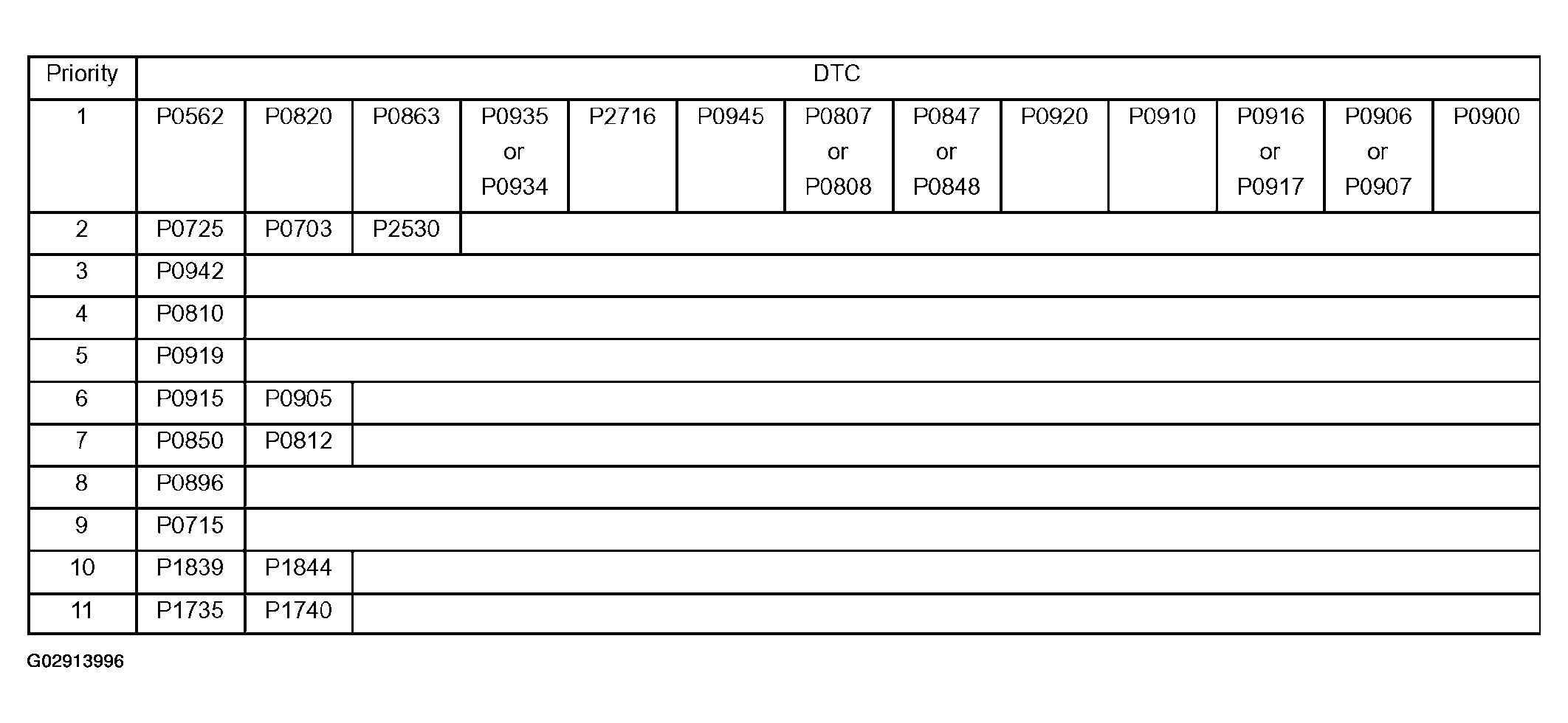

Fig 2: Displaying DTC Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

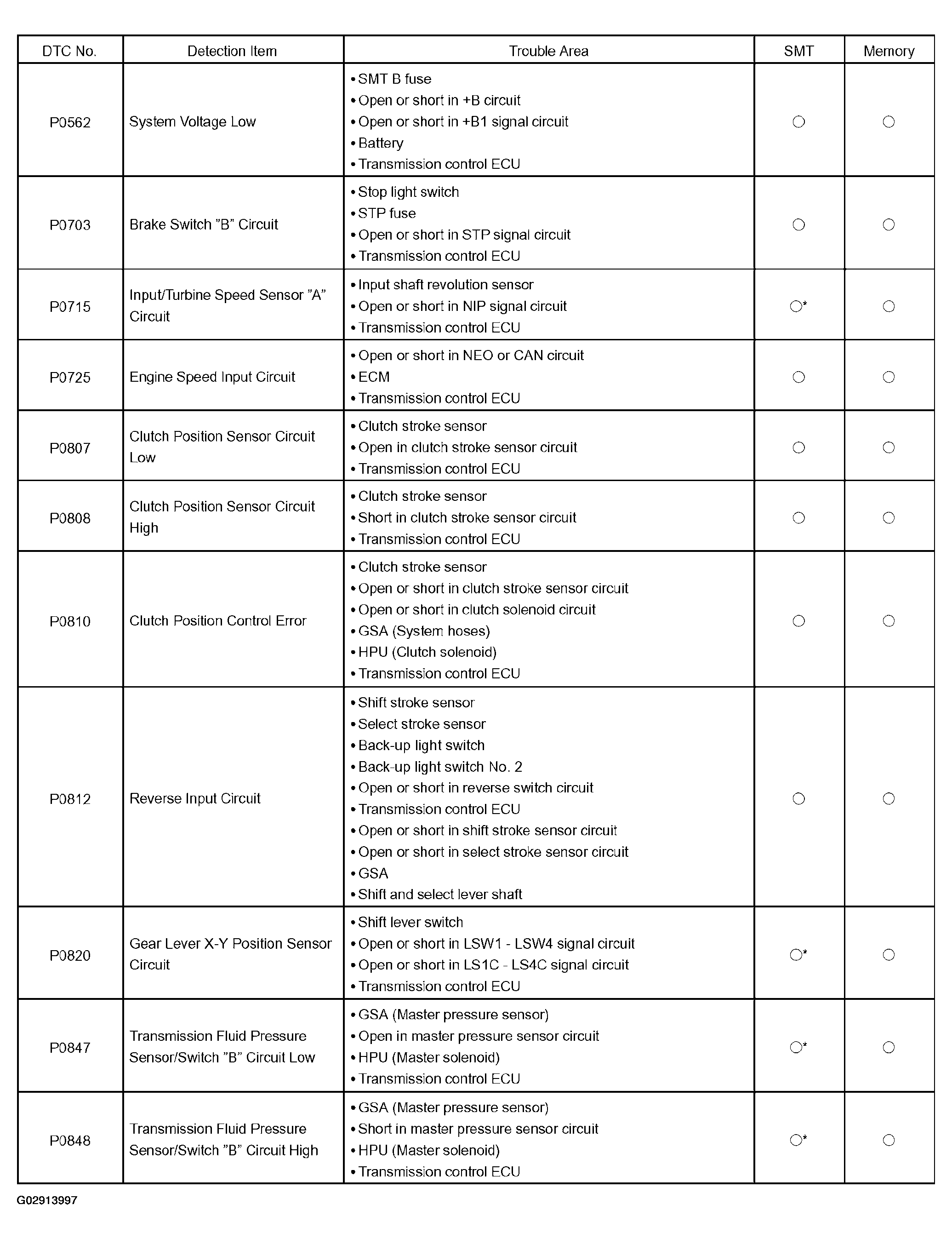

Fig 3: Displaying DTC Trouble Area Chart (1 of 3)

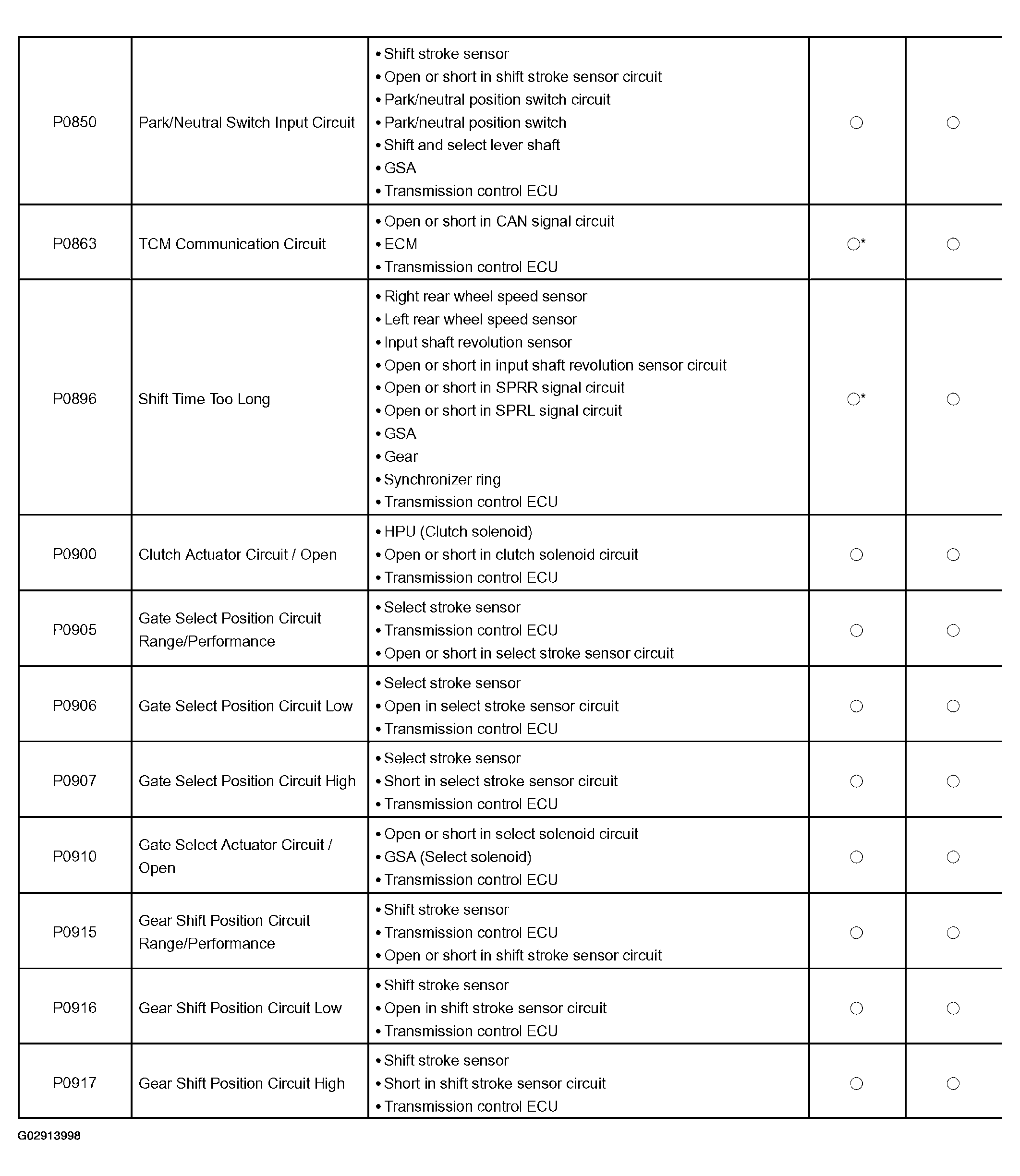

Fig 4: Displaying DTC Trouble Area Chart (2 of 3)

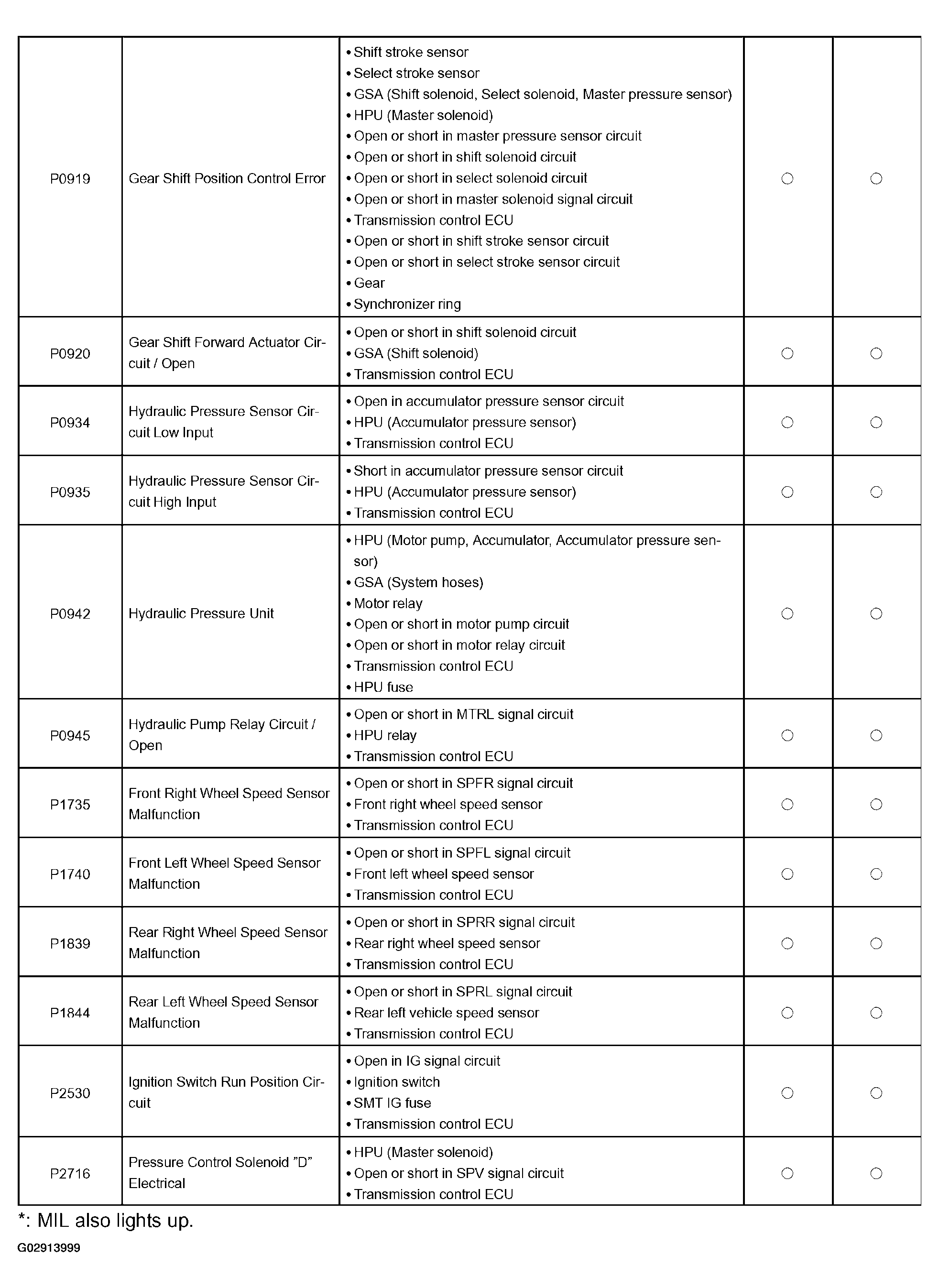

Fig 5: Displaying DTC Trouble Area Chart (3 of 3)
