Front Seat (Driver Side): Components

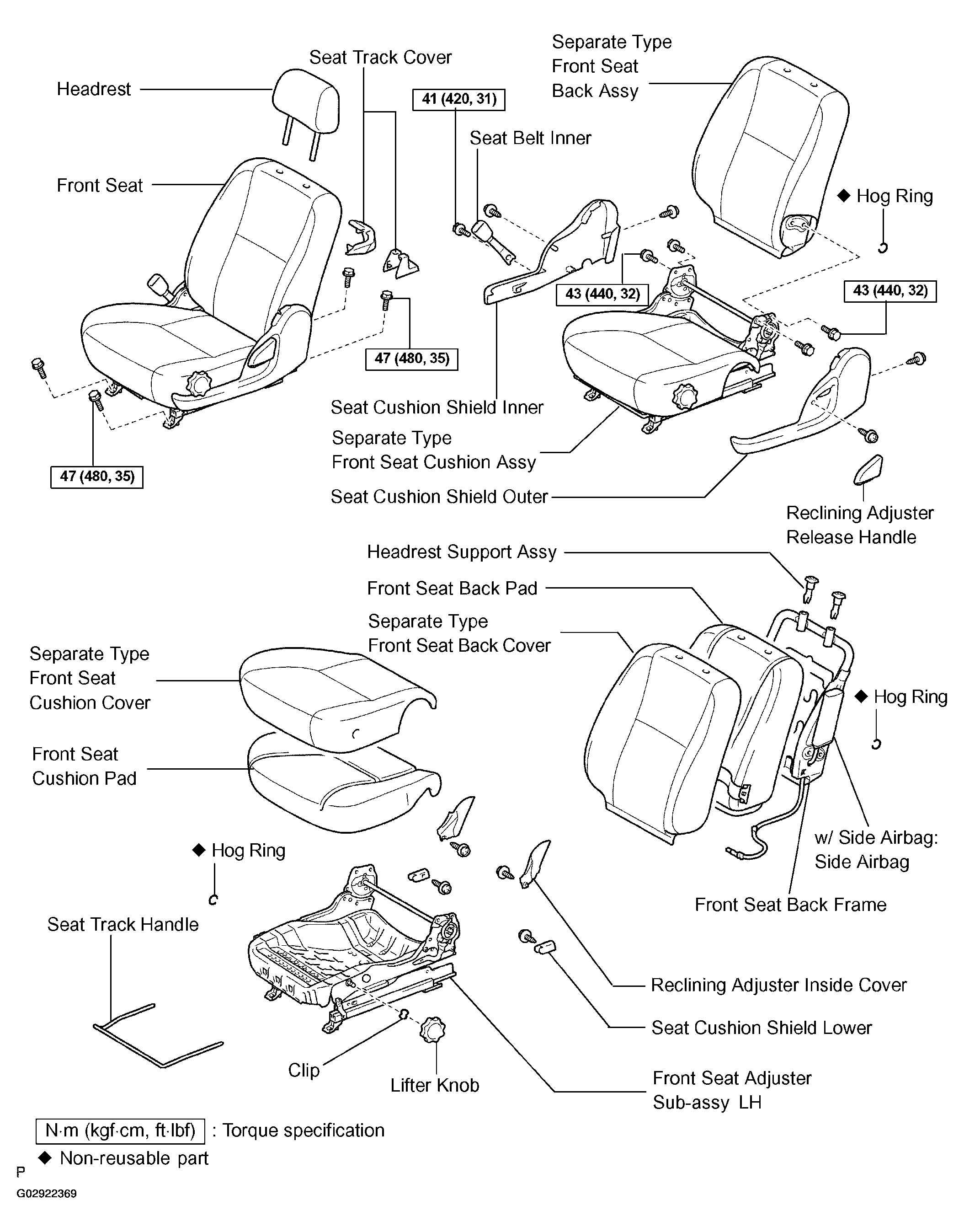

Fig 1: Identifying Components Location Of Front Seat (Driver Side)
G02922369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
