Section 1039 (Navigation Antenna): Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS
Installation is in the reverse order of removal.

REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE INSTRUMENT PANEL SUB-ASSY )
HINT:

Refer to INSTRUMENT PANEL SUB-ASSY .
REMOVE NAVIGATION ANTENNA ASSY
1. Remove the 2 screws and 3 clamps to remove the navigation antenna assy.

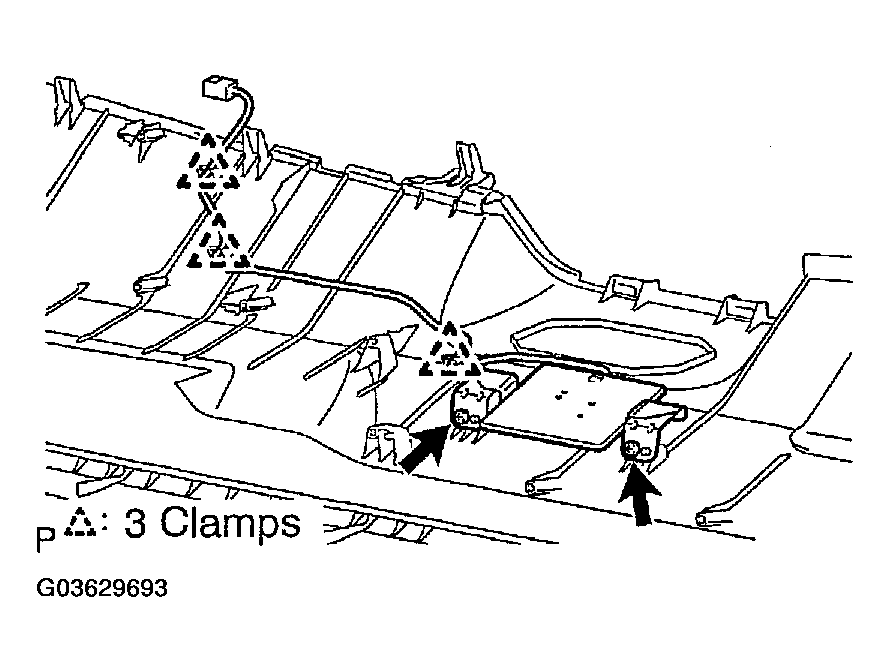

  Fig 1: Removing Navigation Antenna Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (SEE INSTRUMENT PANEL SUB-ASSY )
HINT:

Refer to INSTRUMENT PANEL SUB-ASSY .
