Section 463 (Air Conditioning): Condenser: Installation

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CONDENSER
Install the condenser with the 2 bolts.

Torque: 7.4 N.m (75 kgf.cm, 65 in.lbf)

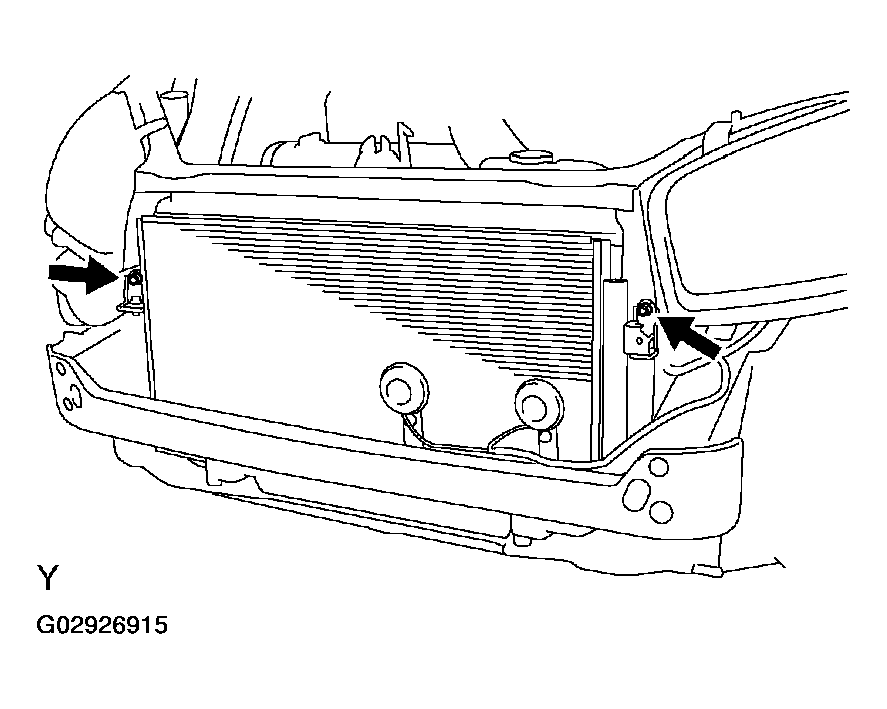

Fig 1: Installing Condenser
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Be careful not to damage the condenser and radiator.
INSTALL LIQUID TUBE AND DISCHARGE TUBE
1. Remove the cap.
2. Coat 2 new O-rings with compressor oil.
3. Install both tubes with the 2 bolts.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

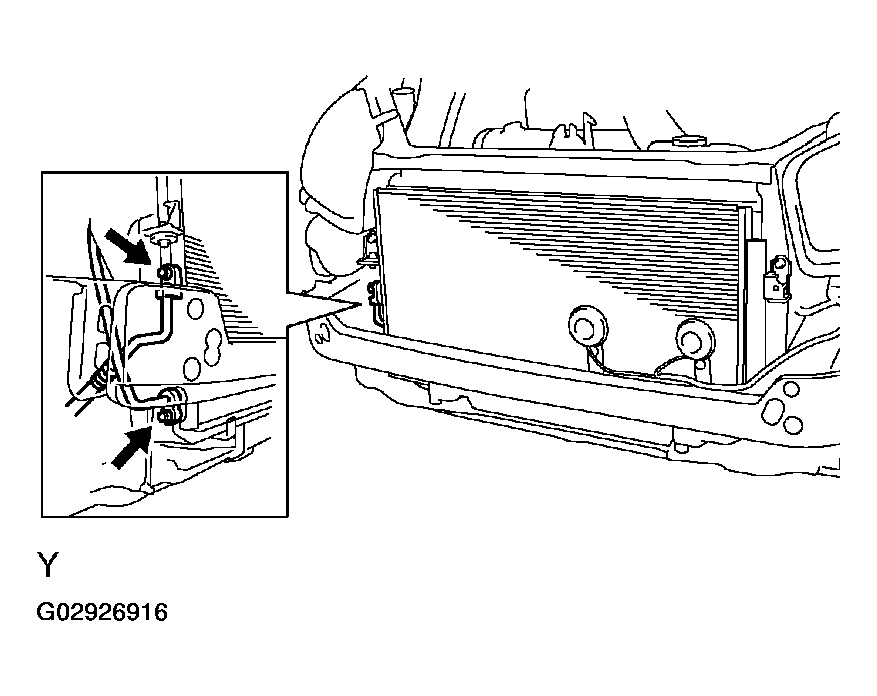

  Fig 2: Installing Liquid Tube And Discharge Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If condenser was replaced, add compressor oil to the compressor.

  Add: 40 cc (1.4 fl.oz.)

  Compressor oil: ND-OIL 8 or equivalent
CHARGE REFRIGERANT TO REFRIGERATION SYSTEM
1. Evacuate air from the refrigeration system.
2. Charge system with refrigerant and inspect for leakage of refrigerant.
  Specified amount: 500 +/- 50 g (17.64 +/- 1.76 oz.)
