Heater Control Assembly: Disassembly

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HEATER CONTROL CABLES
1. Pull out the outer cables.
2. Remove the inner cables.

  Fig 1: Removing Heater Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

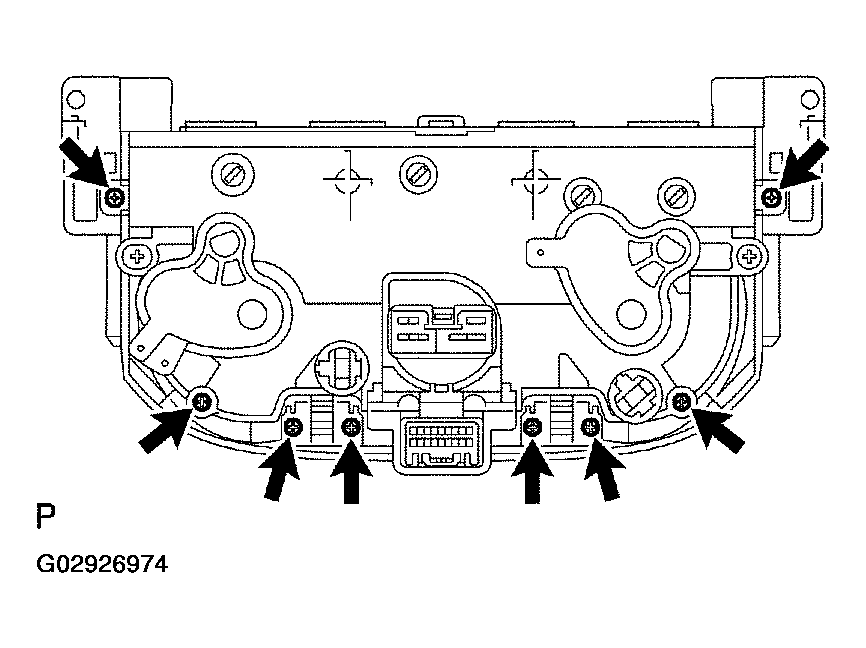

REMOVE HEATER CONTROL NAME PLATE
1. Remove the 3 knobs.
2. Remove the 8 screws.
3. Remove the 3 switches.
4. Remove the heater control cover.

  Fig 2: Removing Heater Control Name Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PRINTED WIRE INTEGRATION BOARD

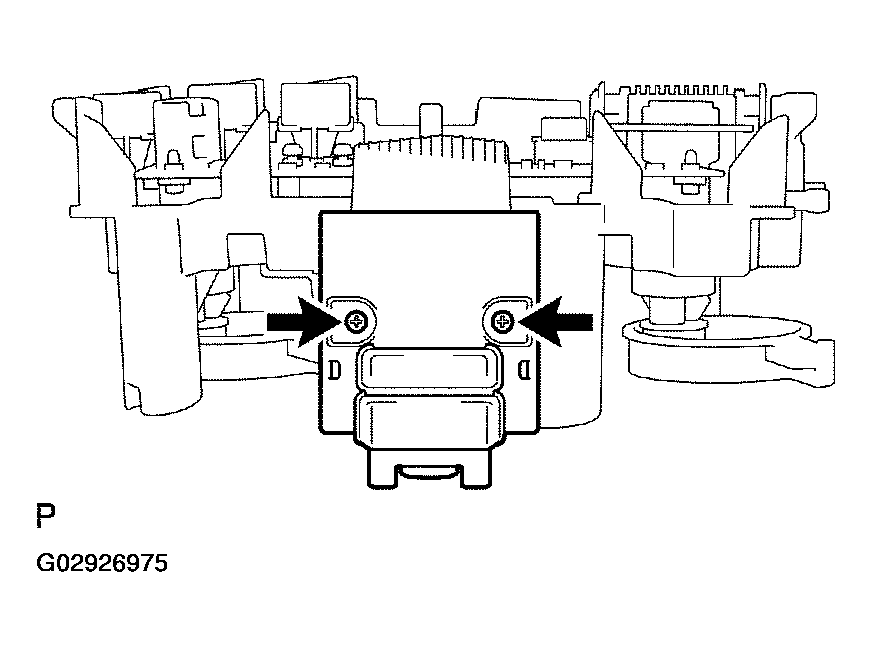

1. Remove the 2 screws and heater control switch cover.

  Fig 3: Removing Heater Control Switch Cover & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

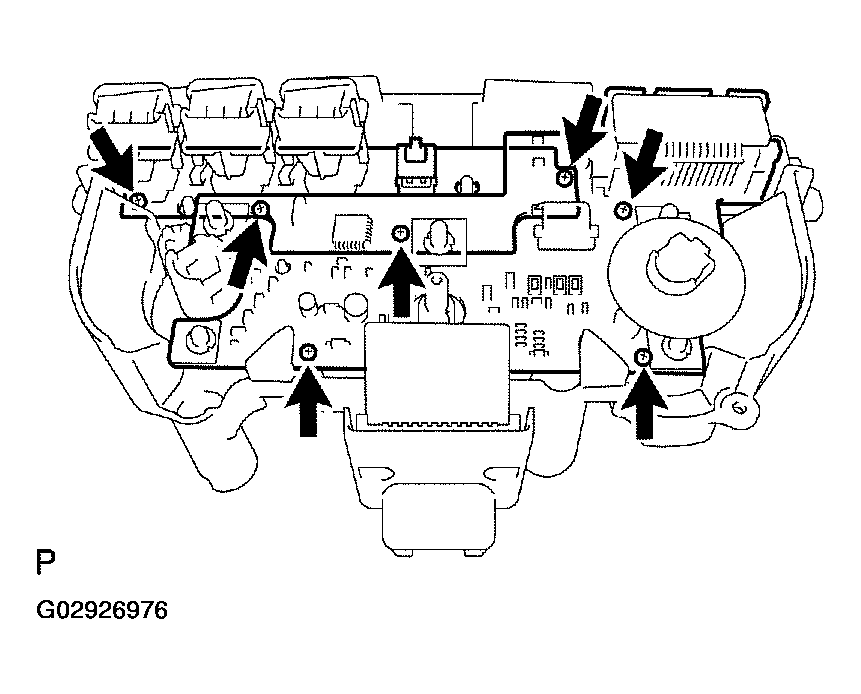

2. Remove the 7 screws and integration board.

  Fig 4: Removing Integration Board & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
