Heater Control Assembly: Installation

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEATER CONTROL ASSEMBLY
1. Connect the 2 connectors to the heater control.

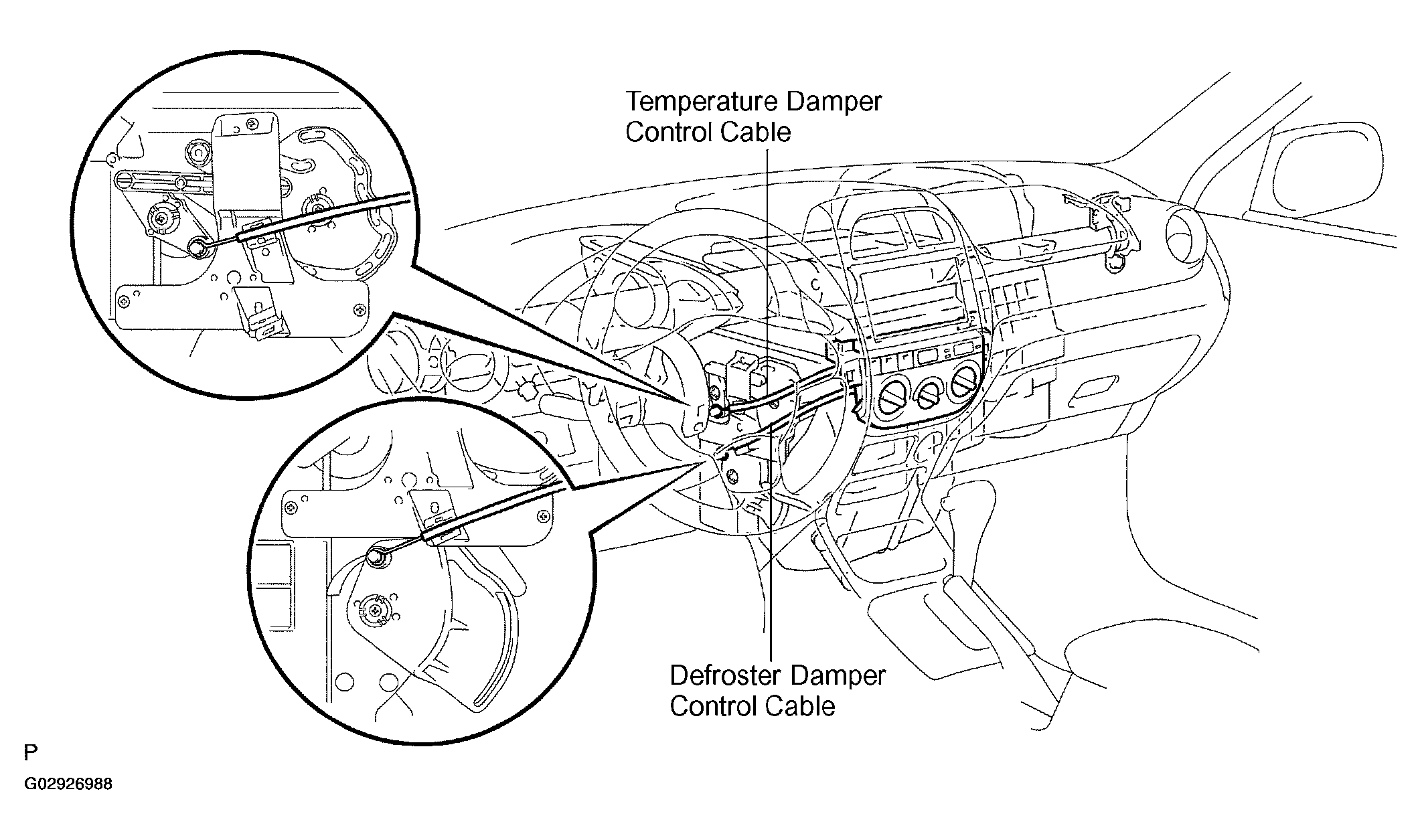

2. Pass through the A/C control cables as shown in Fig 1.

  Fig 1: Installing Through Control Cables
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

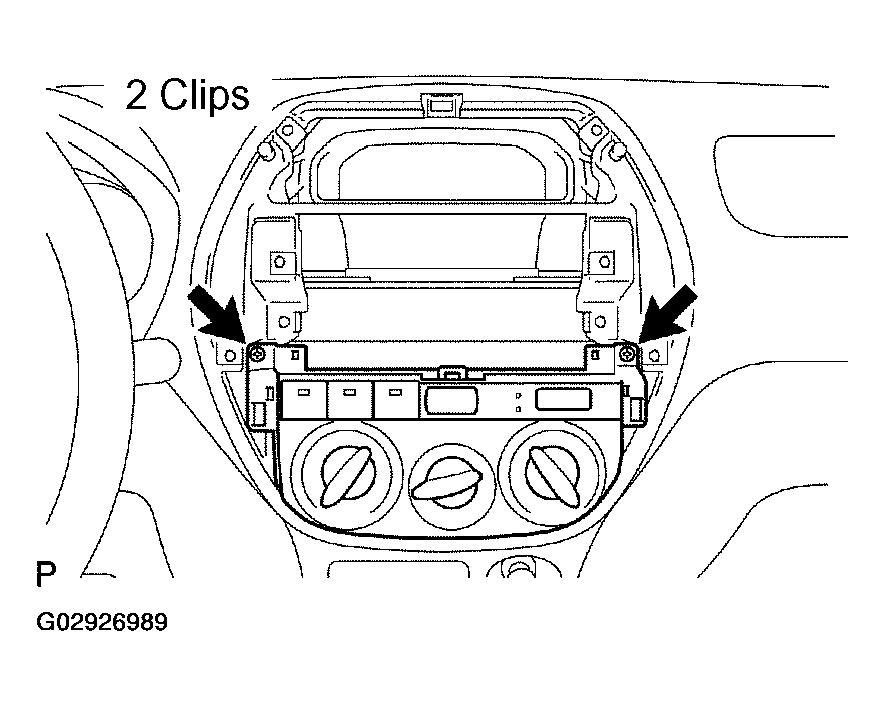

3. Install the heater control assembly with the 2 screws.

  Fig 2: Installing Heater Control Assembly & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL
1. w/o Radio:
  Install the stereo opening cover with the 4 bolts.

  w/Radio:

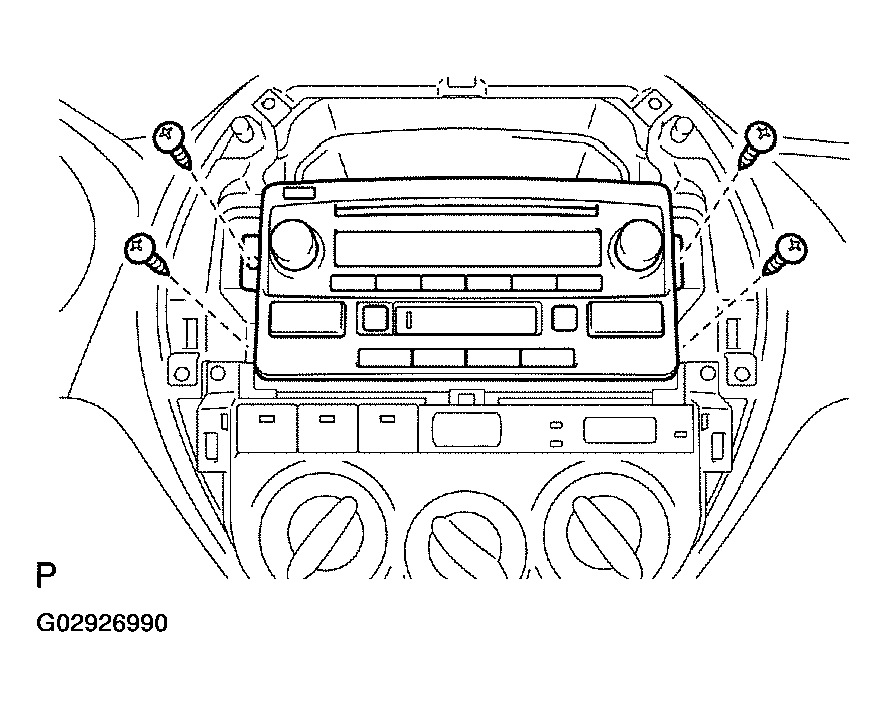

  Connect the connectors and install the radio with the 4 bolts.

  Fig 3: Installing Stereo Opening Cover Or Radio & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL

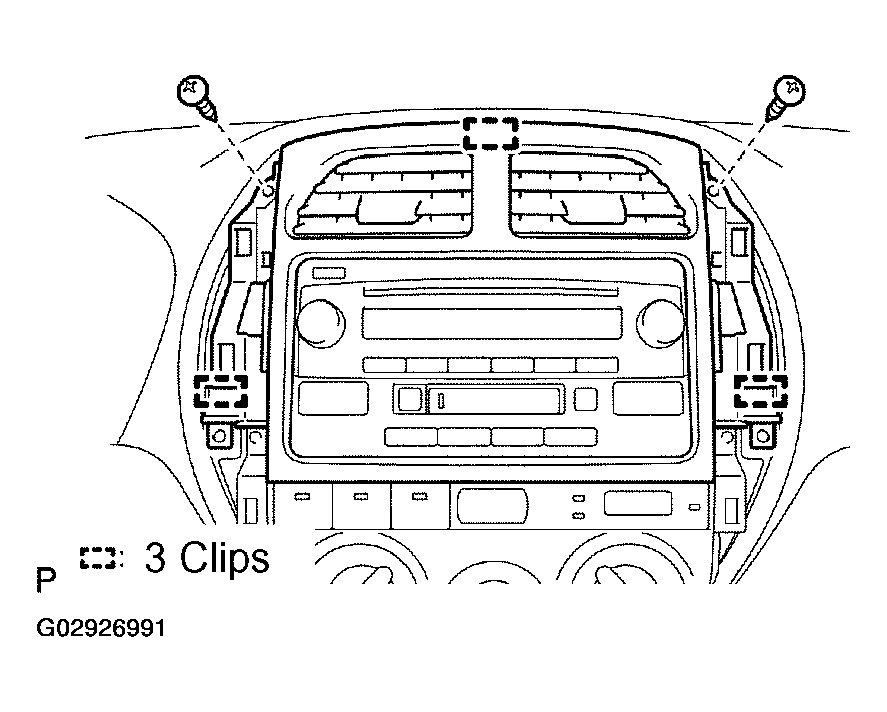

1. Install the finish panel with the 2 screws.

  Fig 4: Installing Instrument Cluster Finish Panel & Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

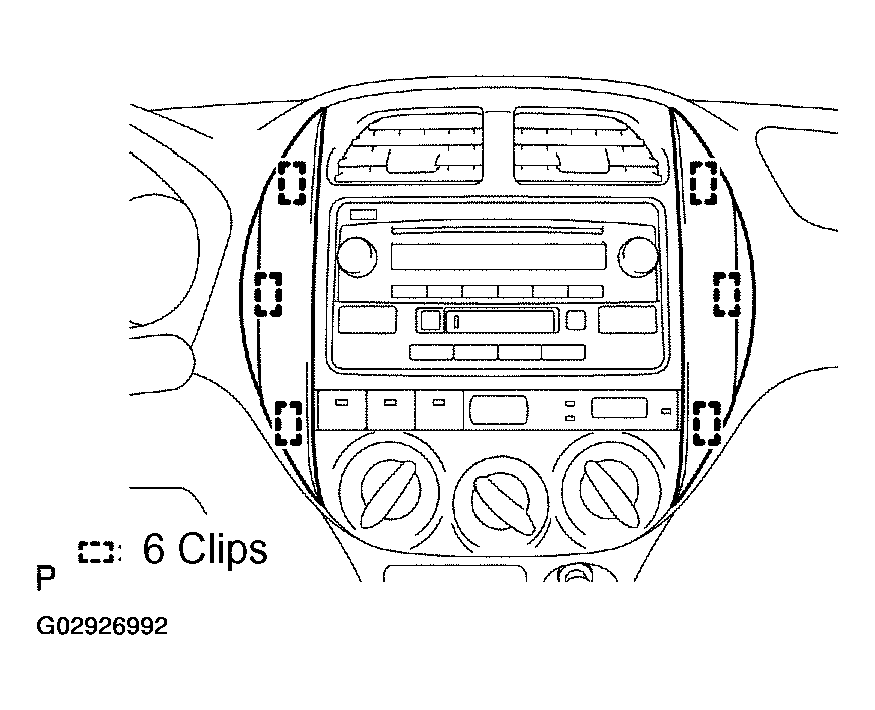

INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTERS

Fig 5: Installing Instrument Cluster Finish Panel Centers

CONNECT HEATER CONTROL CABLES
1. Set the temperature control dial at "MAX. COOL"
2. Set the mode control dial at "FACE"

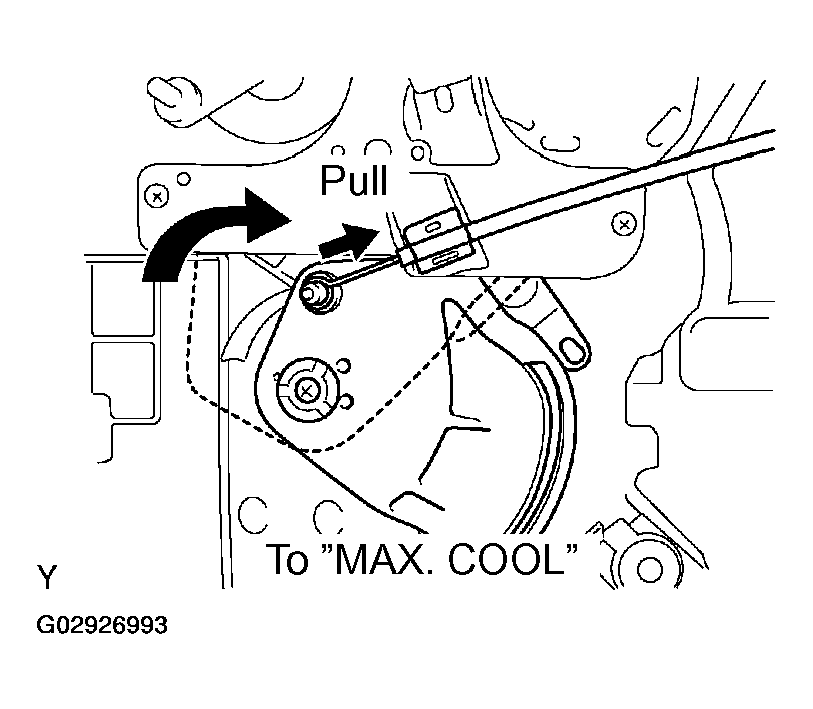

3. Adjust the air mix damper control cable.
  Set the air mix damper control lever at "MAX. COOL", connect the inner cable to the lever pin and lock the outer cable to the clamp.

  Fig 6: Adjusting Air Mix Damper Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Lock the clamp while lightly pulling the outer cable to the direction shown by the arrow in Fig 7.

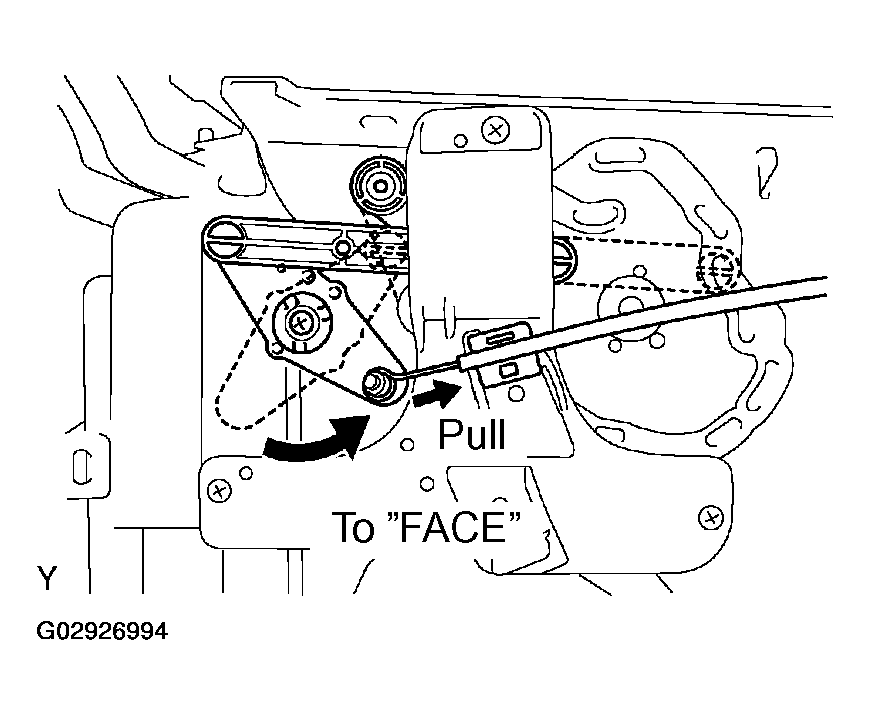

4. Adjust the mode control cable.
  Set the mode control lever at "FACE" position, connect the inner cable to the lever pin and lock the outer cable to the clamp.

  Fig 7: Adjusting Mode Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Lock the clamp while lightly pulling the outer cable to the direction shown by the arrow in Fig 7.
5. Install the No. 1 instrument panel under cover sub-assembly.
