Water Pump: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

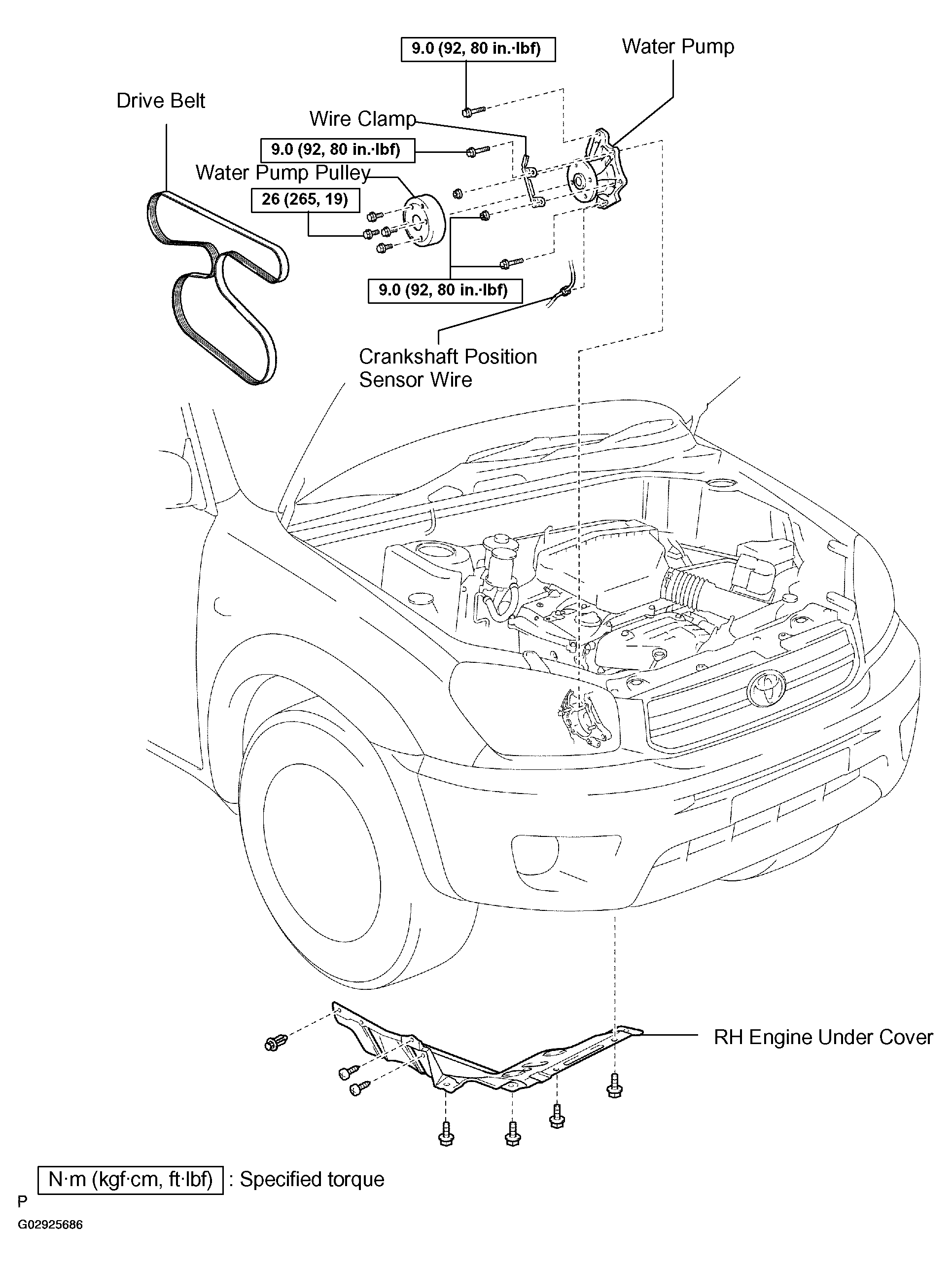

Fig 1: Identifying Water Pump Components
G02925686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
