Section 532 (Air Conditioning): Components
WARNING:
This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

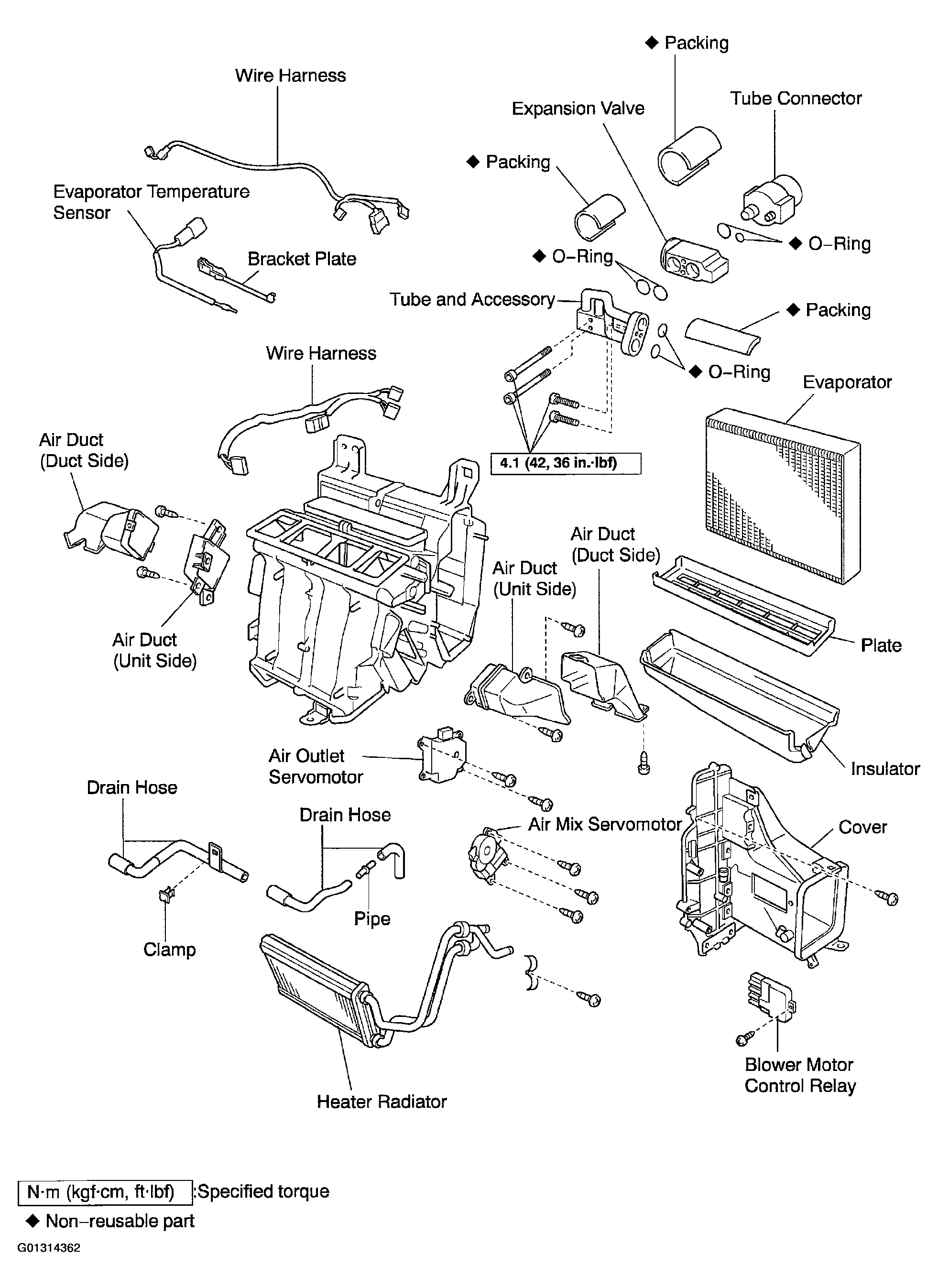

Fig 1: Exploded View Air Conditioning Unit Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

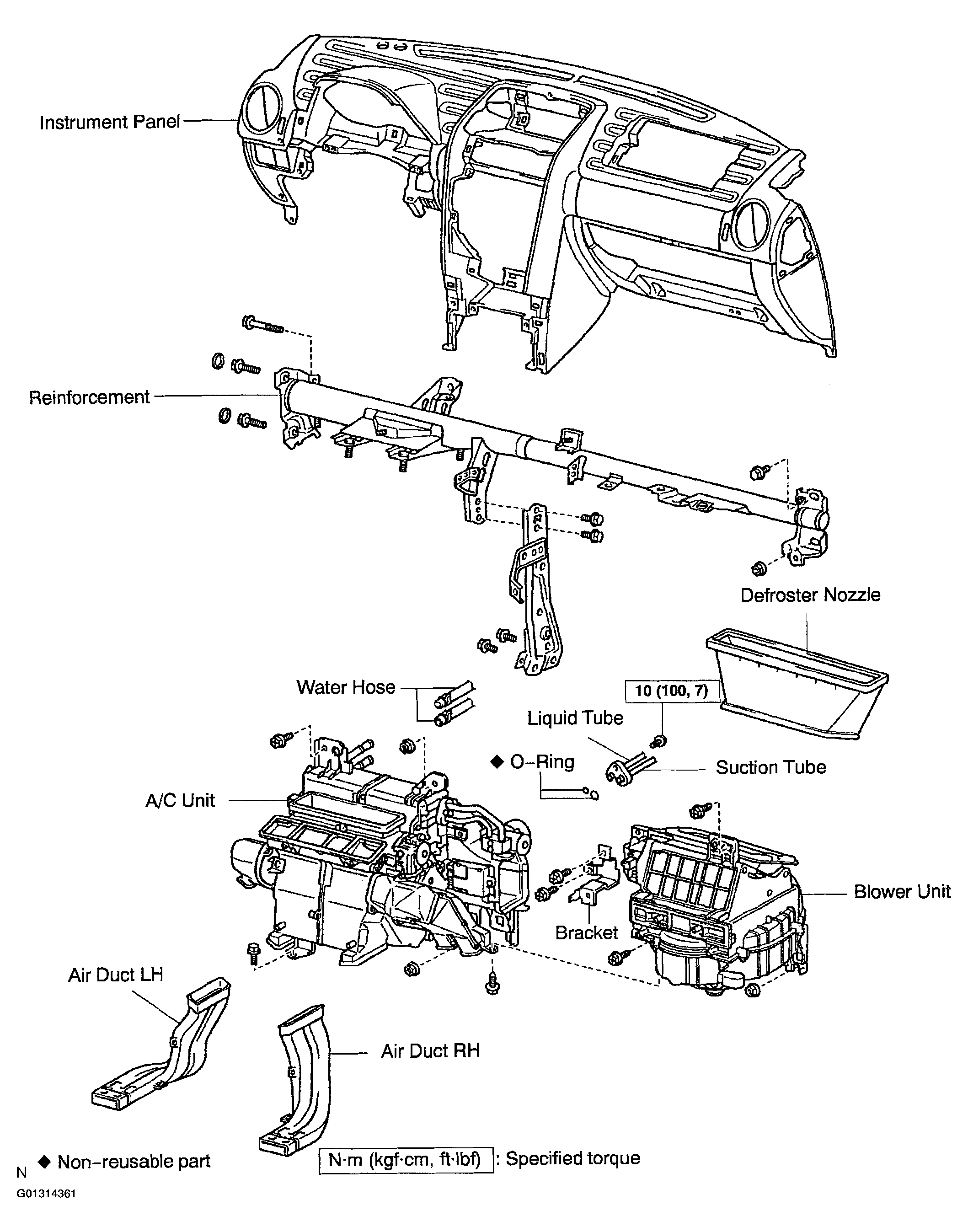

Fig 2: Exploded View Air Conditioning Unit Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
