Section 588 (Roof Headlining): Components

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

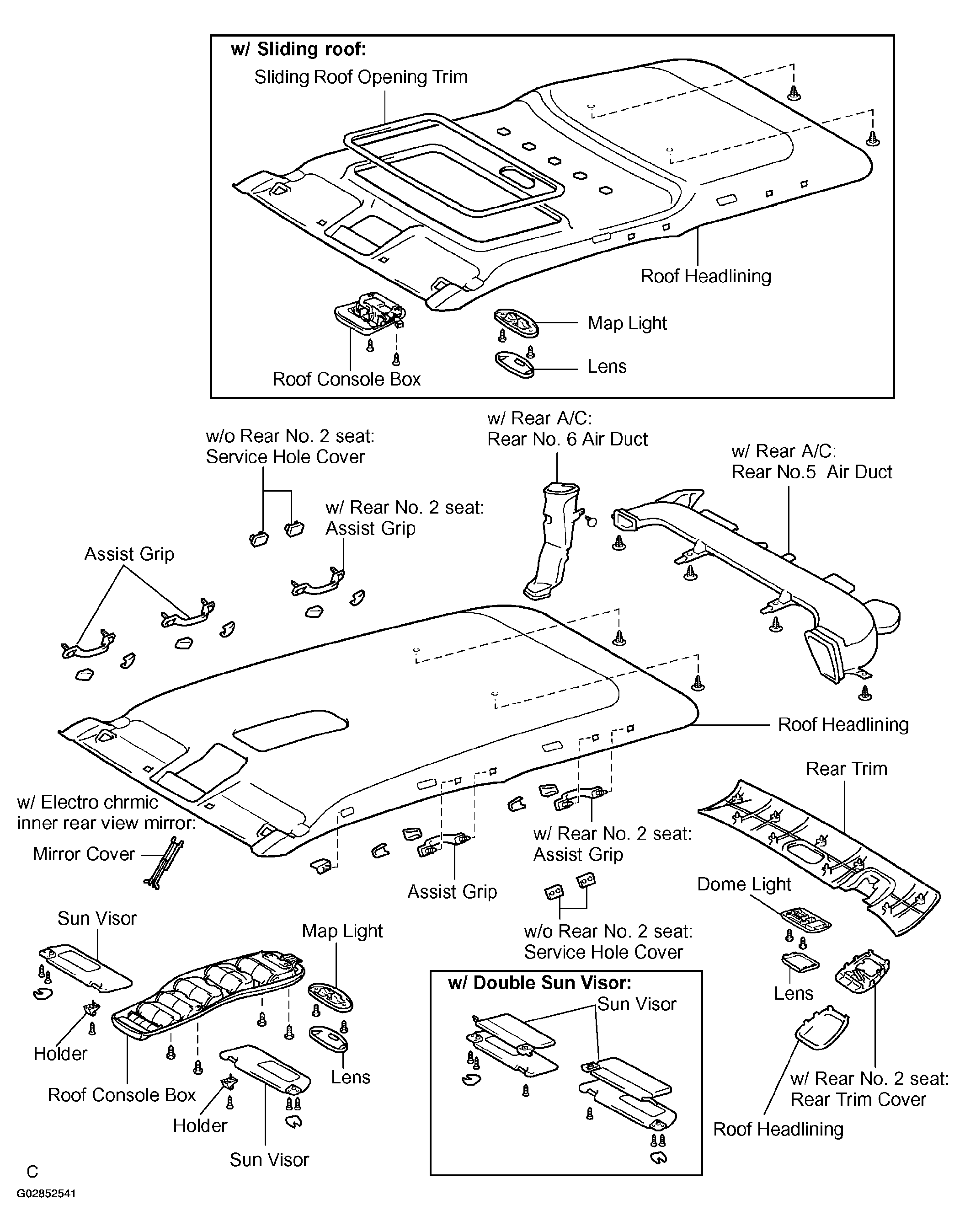

Fig 1: Identifying Roof Headlining Components (1 Of 3)
G02852541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

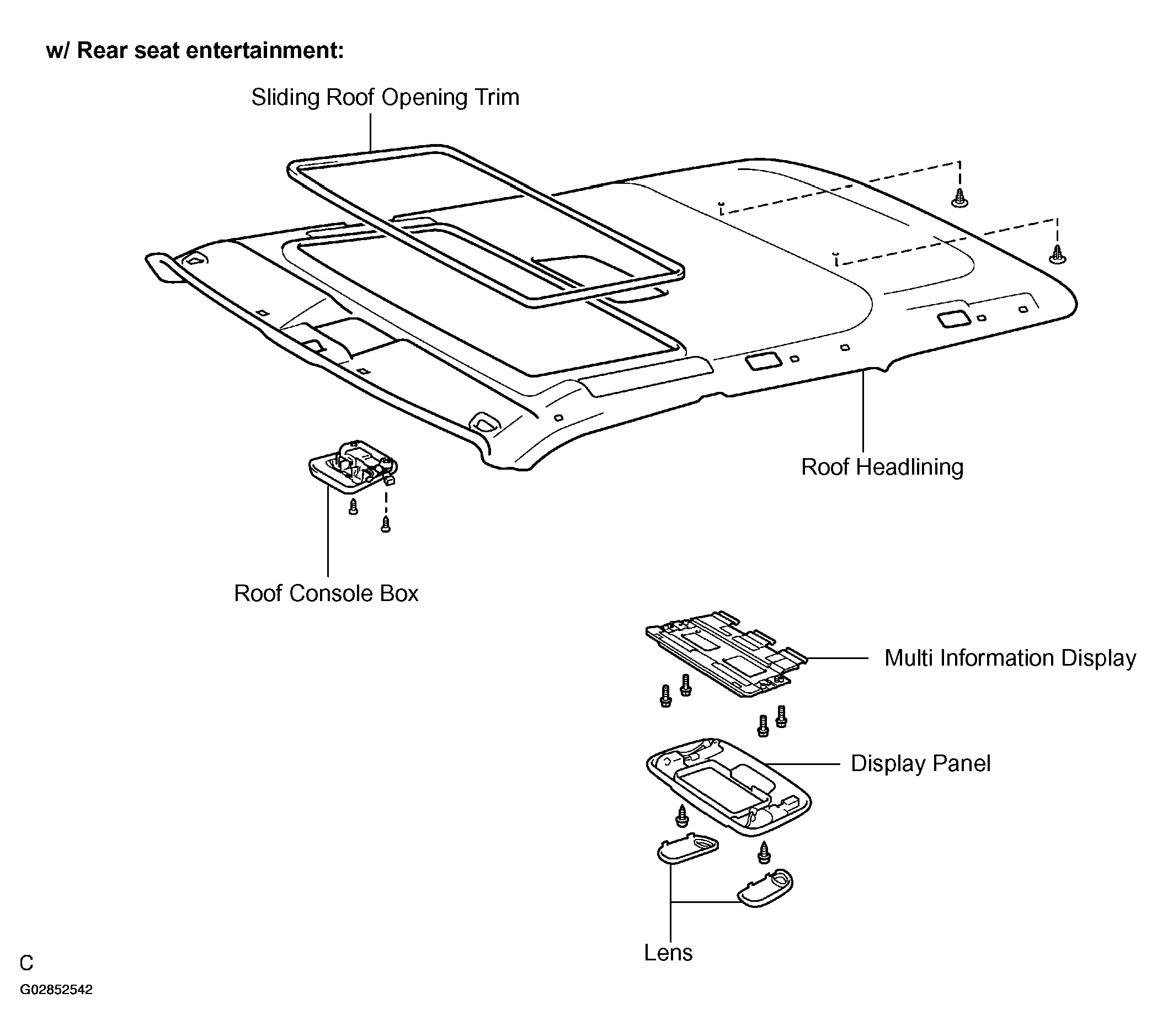

Fig 2: Identifying Roof Headlining Components (2 Of 3)
G02852542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

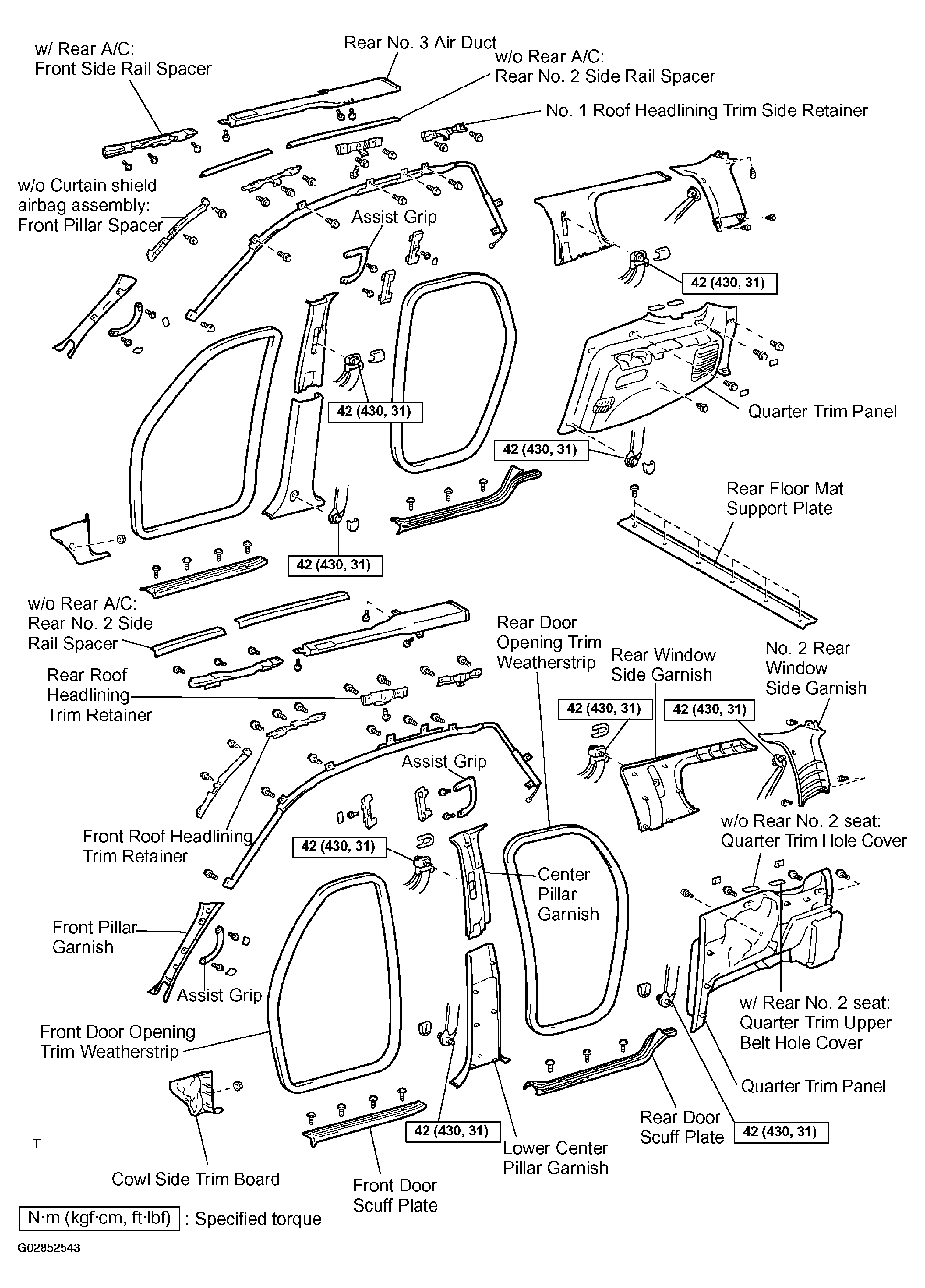

Fig 3: Identifying Roof Headlining Components (3 Of 3)
G02852543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
