Power Door Lock Control System - Diagnostics: Location

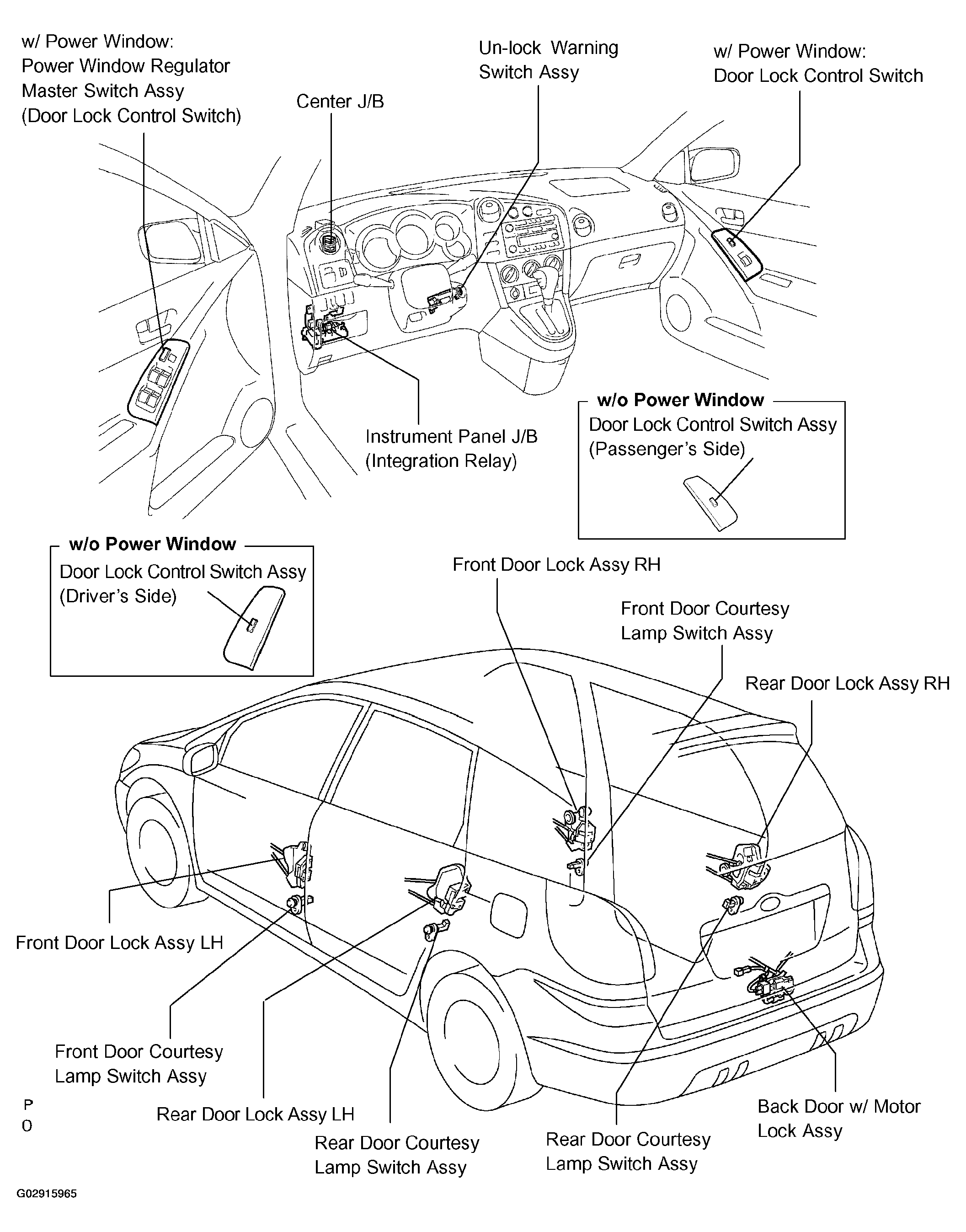

Fig 1: Locating Power Door Lock Control System Components
G02915965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
