Floor Shift Cable Transmission Control Select (MTM): Replacement

WARNING: This page is about a different variant/trim than selected.

NOTE:

See EXPLODED VIEW OF FLOOR SHIFT LEVER ASSEMBLY COMPONENTS or COMPONENTS

PRECAUTION
NOTE: Do not open the cover or the case of the ECU and various electrical devices unless absolutely necessary (If the IC terminals are touched, the IC may be destroyed by static electricity).
DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See REPLACEMENT )
REMOVE INSTRUMENT PANEL BOX (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REPLACEMENT )
REMOVE AIR BAG SENSOR ASSY CENTER (See REMOVAL & INSTALLATION (MATRIX) )
REMOVE FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Remove the clip, washer and disconnect the cable end of the select cable from the transaxle.

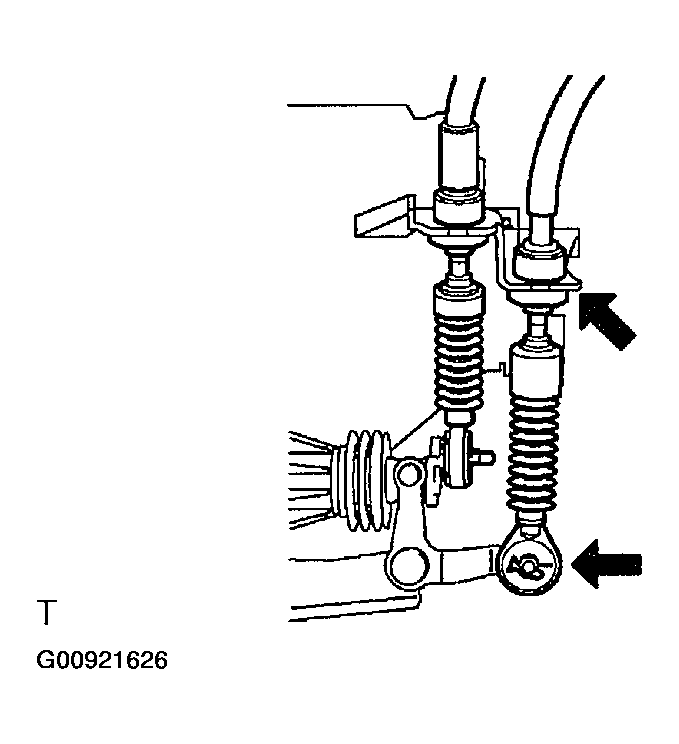

  Fig 1: Disconnecting Cable End Of Select Cable From Transaxle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the clip and disconnect the select cable from the bracket.
3. Remove the 2 nuts and disconnect the select cable.

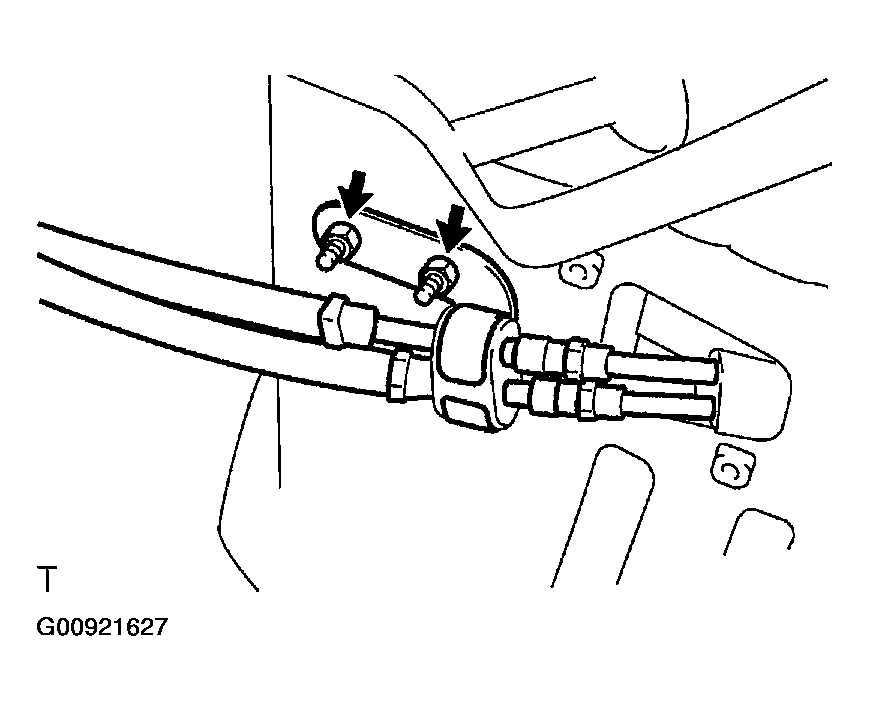

  Fig 2: Removing Nuts And Disconnecting Select Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the select cable from the clamp.
5. Remove the 2 bolts and shift cable grommet retainer.

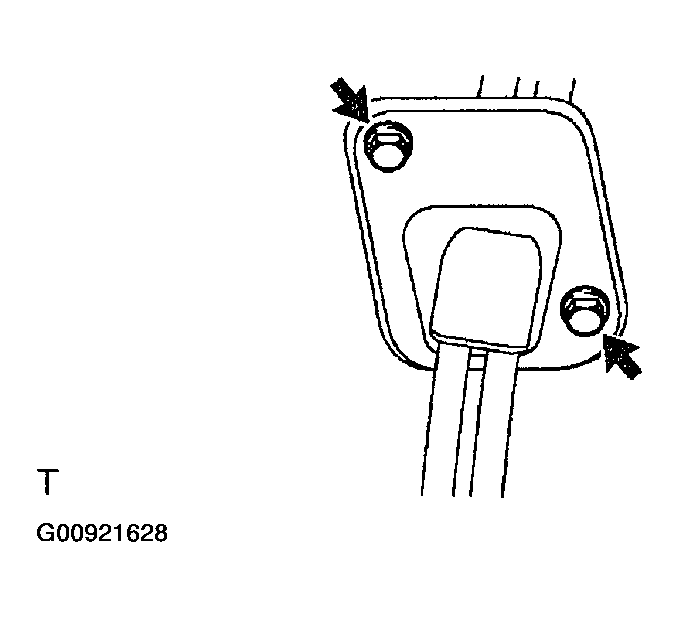

  Fig 3: Removing Bolts And Shift Cable Grommet Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the clip and disconnect the cable end of the select cable from the shift lever assy.

  Fig 4: Disconnecting Cable End Of Select Cable From Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Turn the lock and disconnect the select cable from the shift lever assy.

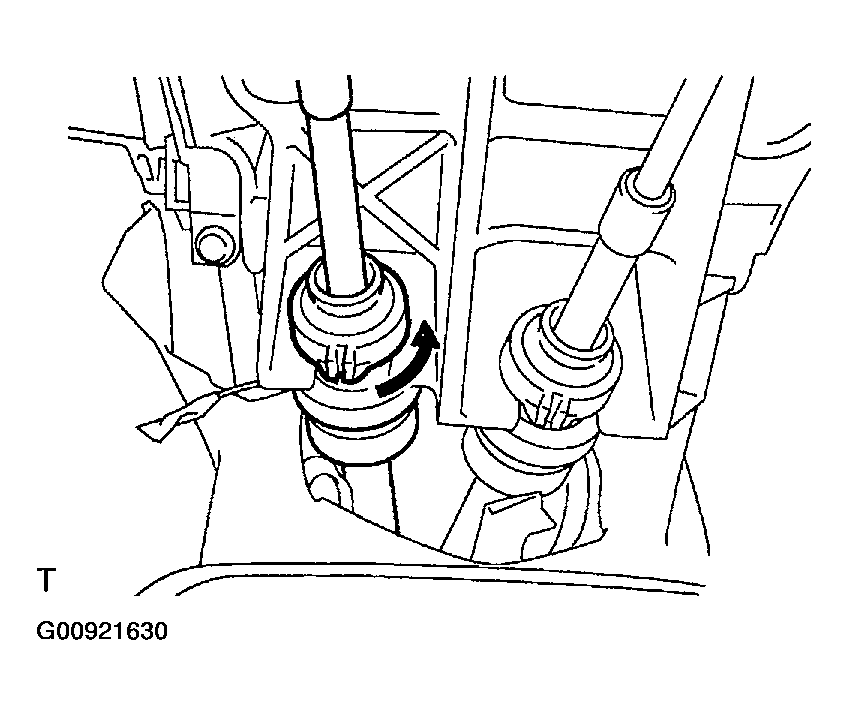

  Fig 5: Disconnecting Select Cable From Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Pull out the select cable from the floor.
INSTALL FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Pull in the select cable to the floor.
2. Install the shift cable grommet retainer with the 2 bolts.
  1. Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

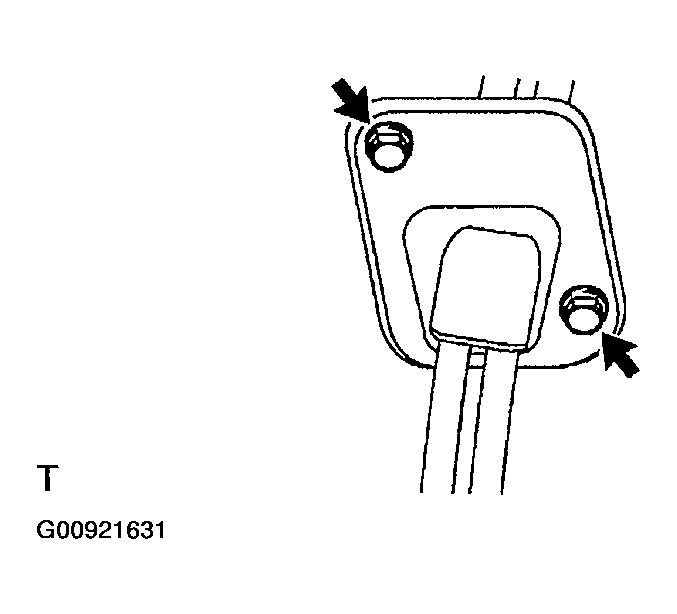

  Fig 6: Installing Shift Cable Grommet Retainer With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the select cable to the shift lever assy.
  NOTE:
  - The projecting part of the cable outer should face upward when the shift cable is installed.
  - Make sure that after installation the cable outer spring is moved to the place shown in Fig 7 .

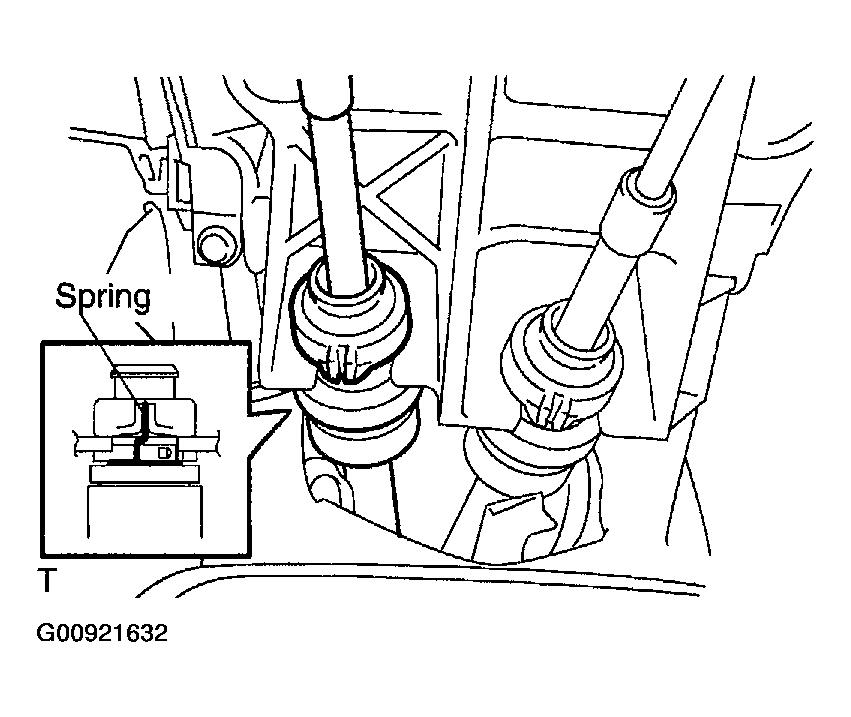

  Fig 7: Connecting Select Cable To Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the select cable end with the clip to the shift lever assy.

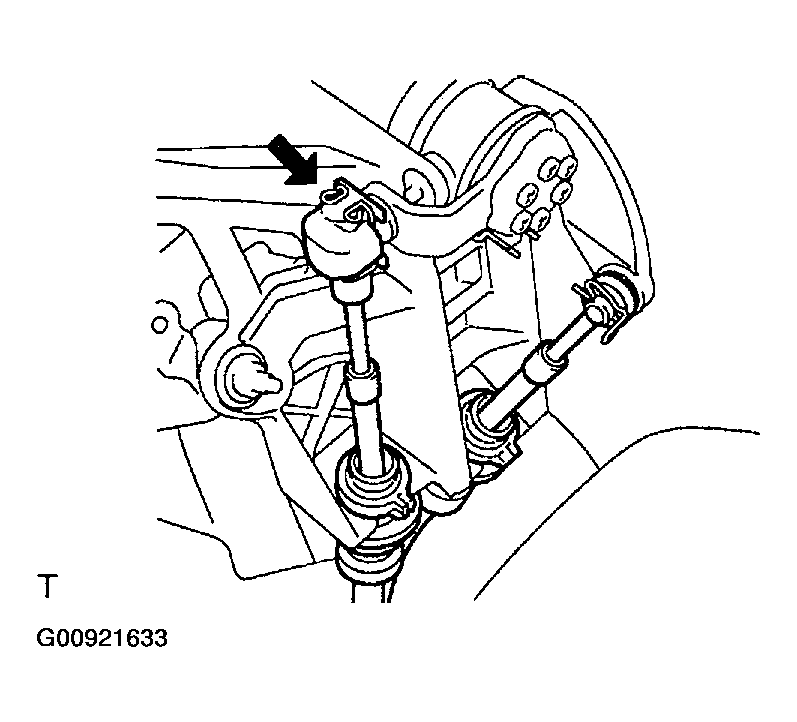

  Fig 8: Connecting Select Cable End With Clip To Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the select cable to the clamp.
6. Connect the select cable with the 2 nuts.
  1. Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
  Fig 9: Connecting Select Cable With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the select cable with the clip from the bracket.
8. Connect the cable end of the select cable and with the washer and clip to the transaxle.

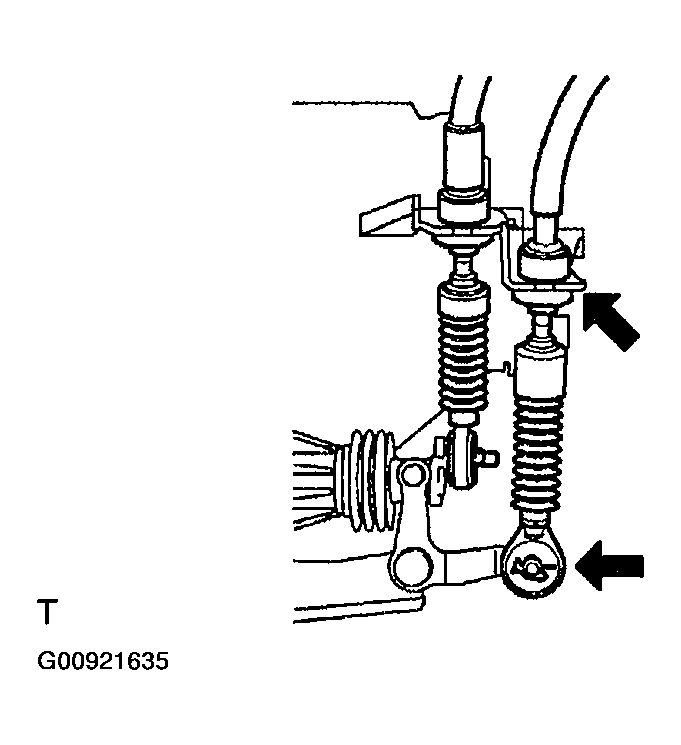

Fig 10: Connecting Cable End Of Select Cable And With Washer And Clip To Transaxle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR BAG SENSOR ASSY CENTER (See REMOVAL & INSTALLATION (MATRIX) )
SST 09249-63010
INSPECT SRS WARNING LIGHT (See AIR BAG WARNING LIGHT CHECK )
