Back Door: Components

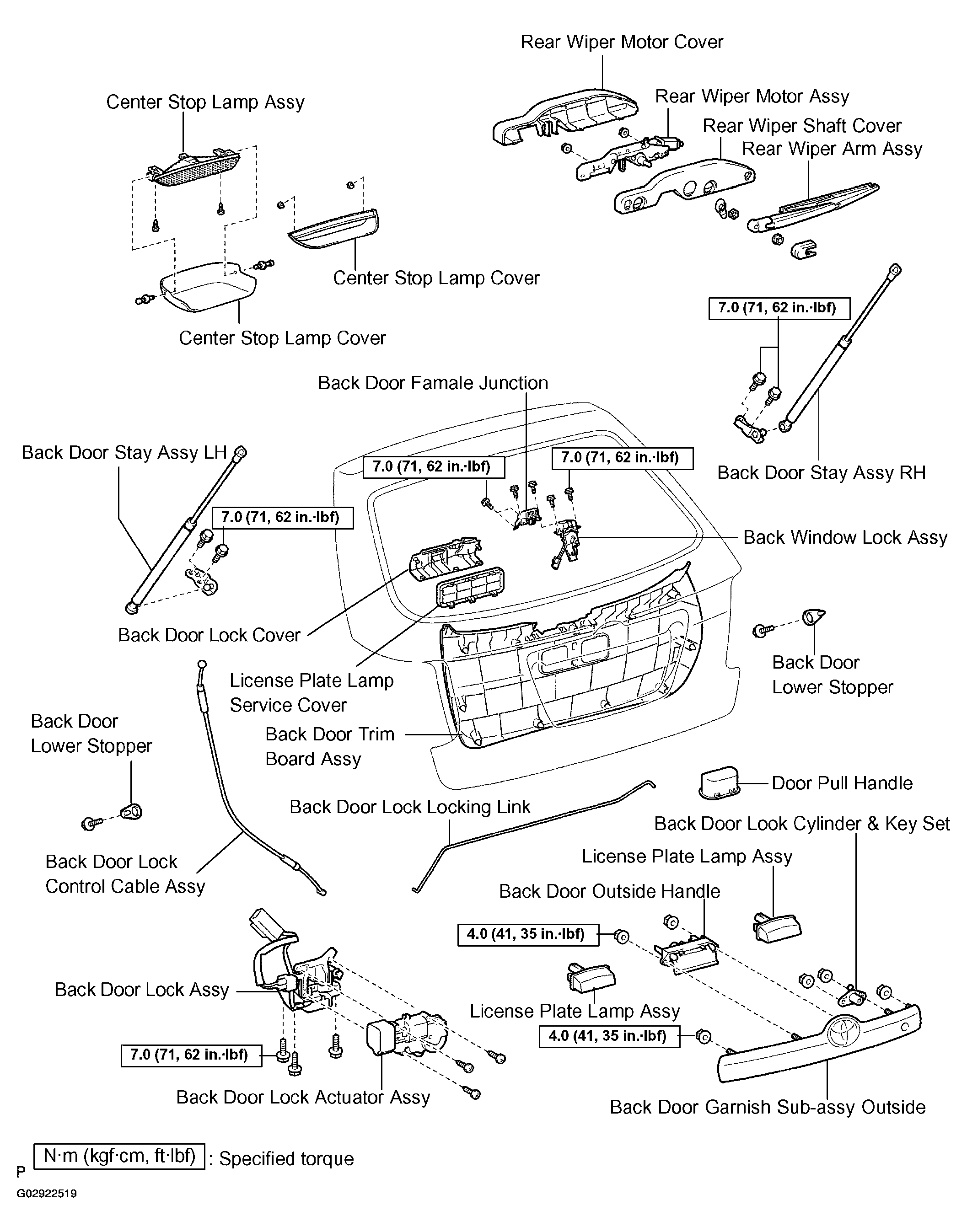

Fig 1: Identifying Components Of Back Door
G02922519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
