Vehicle Intrusion Protection System - Diagnostics: Location

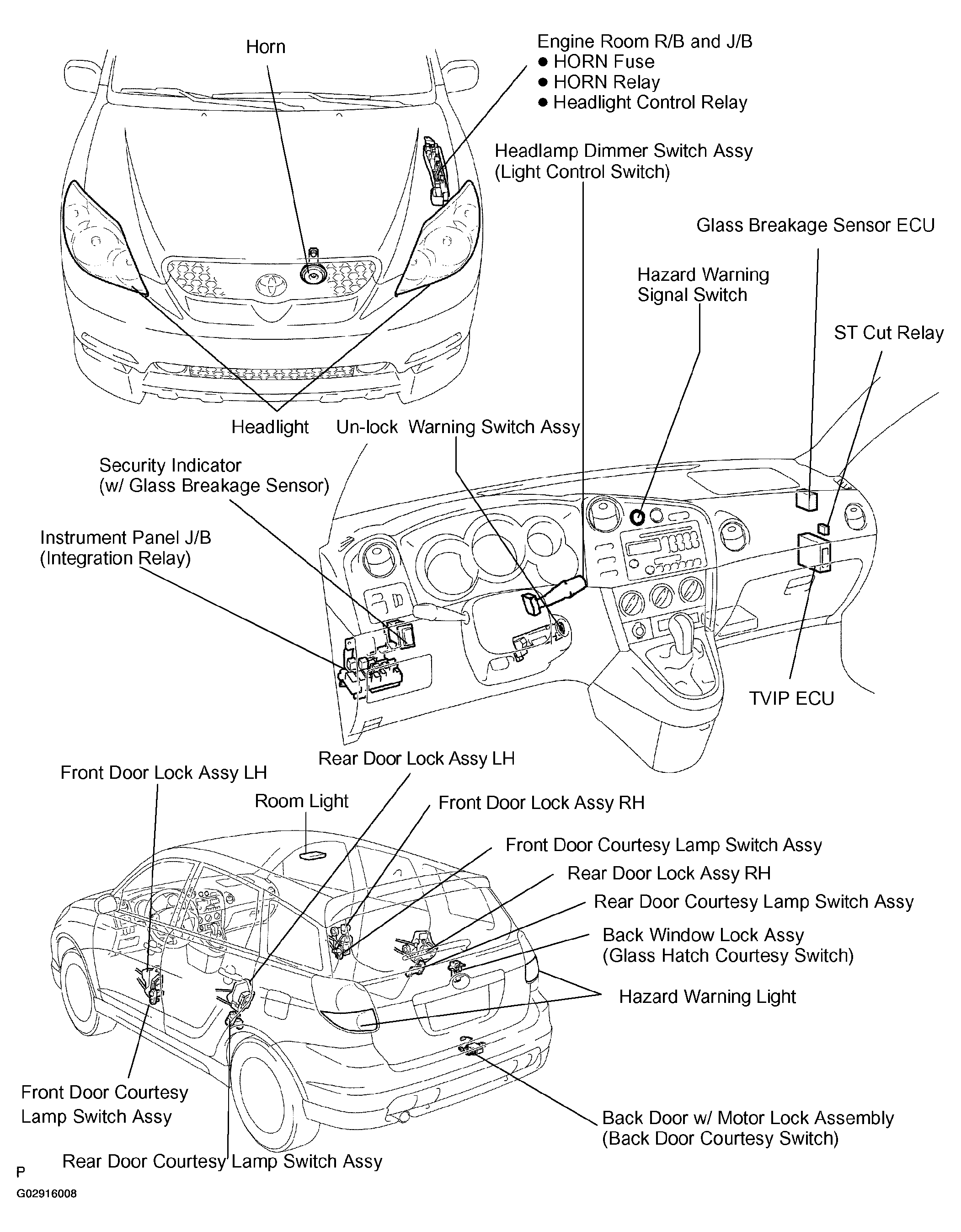

Fig 1: Locating TVIP System Components
G02916008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
