Trouble Shooting: Pre-Check

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. 1. ECU Terminal Values Measurement By Using Toyota Break-Out-Box And Toyota Hand-Held Tester  :
    1. Hook up the break-out-box and TOYOTA hand-held tester to the vehicle. See Fig 3 and Fig 4 .
    2. Read the ECU input/output values by following the prompts on the tester screen.
    3. Please refer to the TOYOTA hand-held tester has a "Snapshot" function. This records the measured data and is effective in the diagnosis of intermittent problems.
  2. Using Toyota Hand-Held Tester  :
    1. Connect the TOYOTA hand-held tester to the DLC3. See Fig 4.
    2. NOTE: TOYOTA hand-held tester has a "Snapshot" function which records the monitored data.

      Please refer to the TOYOTA hand-held tester operator's manual for further details.

    3. Monitor the ECU data by following the prompts on the tester screen.
  3. Clearing DTCs  :

    DTC can be deleted using a hand-held tester. If there is no hand-held tester or it cannot be used, disconnect the auxiliary battery for 1 min. or more and connect it again.

  4. Problem Symptom Confirmation (Road Test)
    1. Inspect the SET switch, see Figure:
      1. Push the main switch ON. See Figure.
      2. Drive at a desired speed (25 mph (40 km/h) or higher).
      3. Press the control switch to the SET/COAST. See Figure.
      4. After releasing the switch, check that the vehicle cruises at the desired speed.
    2. Inspect the ACCEL switch, seeFigure:
      1. Push the main switch ON. See Figure.
      2. Drive at a desired speed (25 mph (40 km/h) or higher).
      3. Check that the vehicle speed increases while the control switch is turned to RES/ACC, seeFigure and that the vehicle cruises at the set speed when the switch is released.
      4. Momentarily press the control switch upward for RES/ACC, seeFigure and then immediately release it. Check that the vehicle speed increases by about 1.5 Km/h (Tap-up function).
    3. Inspect the COAST switch, See Figure:
      1. Push the main switch ON. See Figure.
      2. Drive at a desired speed 25 mph (40 km/h) or higher.
      3. Check that the vehicle speed decreases while the control switch is turned to SET/COAST, and the vehicle cruises at the set speed when the switch is released. See Figure.
      4. Momentarily press the control switch is turned to SET/COAST, and then immediately release it. Check that the vehicle speed decreases by about 1.5 km/h (Tap-down function).
    4. Inspect the CANCEL switch, see Figure:
      1. Push the main switch ON. See Figure.
      2. Drive at a desired speed 25 mph (40 km/h) or higher.
      3. When operating one of the followings, check that the cruise control system is cancelled and that the normal driving mode is reset.

        Depress the brake pedal.

        Shift to except D range (A/T).

        Push the main switch OFF.

        Pull the cruise control switch to CANCEL. See Figure.

    5. Inspect the RESUME switch, see Figure:
      1. Push the main switch ON. See Figure.
      2. Drive at a desired speed 25 mph (40 km/h) or higher.
      3. When operating one of the following, check that the cruise control system is cancelled and that the normal driving mode is reset:

        Depress the brake pedal.

        Shift to except "D" range (A/T).

        Pull the cruise control switch to CANCEL. See Figure.

      4. After the control switch is turned to RES/ACC, see Figure, at the driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed prior to the cancellation.
  5. Input Signal Check (Using Hand-Held Tester)
    1. Connect the hand-held tester to DLC3. See Fig 4.
    2. Check the control switch (MAIN, CANCEL, SET/COAST, RES/ACC). See Figure, Figure, Figure and Figure .
Problem Symptoms Table

Symptom Suspect Area See
SET not occurring or CANCEL occurring. (DTC is Normal)
..... Input Signal Circuit (1)
..... Vehicle Speed Sensor Circuit (2)
..... Stop Light Switch Circuit (3)
..... Park/Neutral Position Switch Circuit (4)
..... Hybrid vehicle control ECU (5)
SET not occurring or CANCEL occurring. (DTC dose not output)
..... Hybrid vehicle control ECU (5)
Actual Vehicle Speed Deviates Above Or Below The Set Speed.
..... Input Signal Circuit (1)
..... Hybrid vehicle control ECU (5)
Gear shifting occurs frequently between 3rd & O/D when driving on uphill road. (Hunting).
..... Hybrid vehicle control ECU (5)
Cruise Control Not Cancelled, Even When Brake Pedal Is Depressed.
..... Stop Light Switch Circuit (3)
..... Hybrid vehicle control ECU (5)
Cruise control not cancelled, even when transmission is shifted to "N" position.
..... Park/Neutral Position Switch Circuit (4)
..... Hybrid vehicle control ECU (5)
Control switch does not operate. (SET/COAST, ACC/RES, CANCEL not possible)
..... Cruise Control Switch Circuit (6)
..... Hybrid vehicle control ECU (5)
SET possible at 25 mph or less, or CANCEL does not operate at 25 mph or less.
..... Input Signal Circuit (1)
..... Hybrid vehicle control ECU (5)
Poor response is ACCEL and RESUME modes.
..... Hybrid vehicle control ECU (5)
O/D does not resume, even though the road is not uphill.
..... Hybrid vehicle control ECU (5)
DTC memory is erased.
..... Hybrid vehicle control ECU (5)
DTC is not output, or is output when should not be
..... Diagnosis Circuit (7)
..... Hybrid vehicle control ECU (5)
Cruise MAIN indicator light remains ON or falls to light up
..... Input Signal Circuit (1)
..... CM (5)
(1) DTC 1566: INPUT SIGNAL CIRCUIT ABNORMAL
(2) DTC P0500 VEHICLE SPEED SENSOR MALFUNCTION under DIAGNOSTICS-ENGINE.
(3) DTC P1520: STOP LIGHT SWITCH CIRCUIT
(4) See, DTC P1780 PARK/NUETRAL POSITION SWITCH MALFUNCTIN under DIAGNOSTICS-ENGINE.
(5) See, HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS.
(6) CRUISE CONTROL SWITCH CIRCUIT
(7) Manufacturer did not define procedure.
Fig 1: Customer Problem Analysis (Cruise Control System Check List)
G00203267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Trouble Shooting Flow Chart
G00330439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Connecting Toyota Hand Held Tester
G00330453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Connecting Toyota Hand Held Tester To DLC3
G00016681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

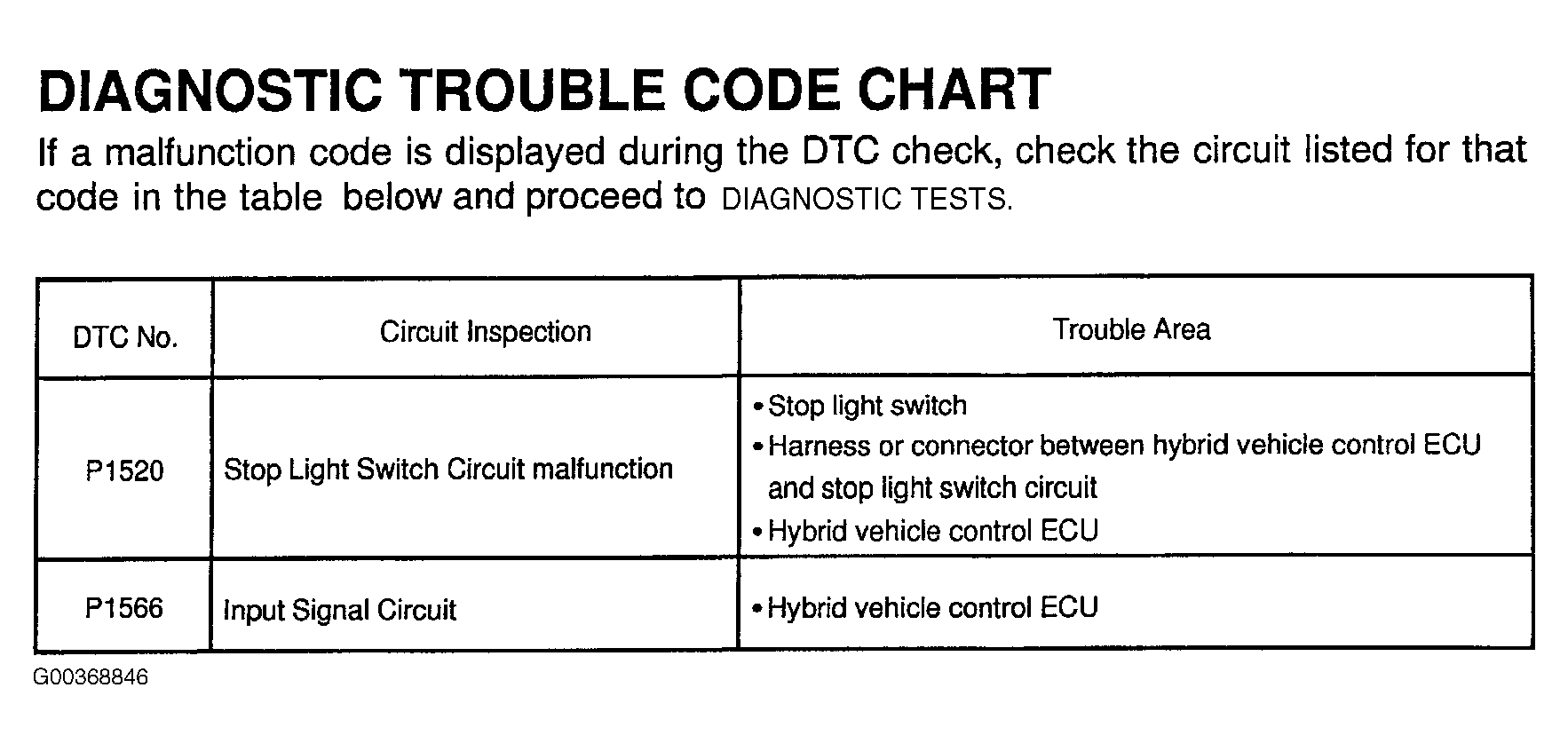

Fig 5: Diagnostic Trouble Code Chart
G00368846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
