Inspect Speed Sensor (Resolver) And Temperature Sensor

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The range of standard values for the temperature sensor is shown in Fig 2.

Using an ohmmeter, measure resistance at each terminals.

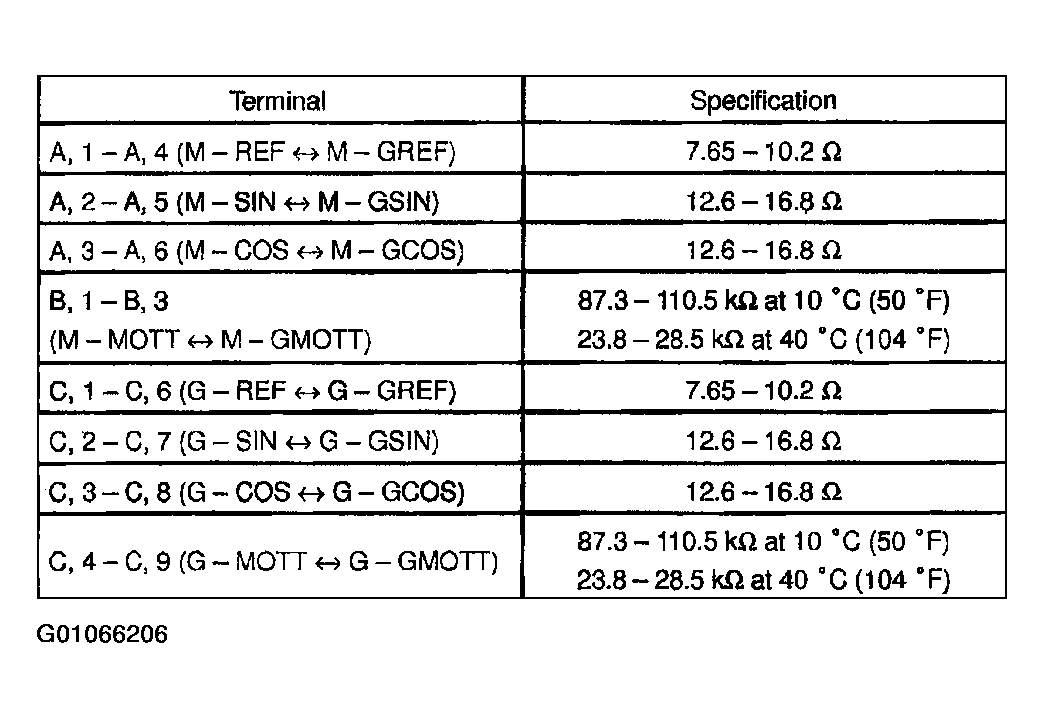

Fig 1: Speed Sensor (Resolver) & Temperature Sensor Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Determining Temperature Sensor Resistance Values

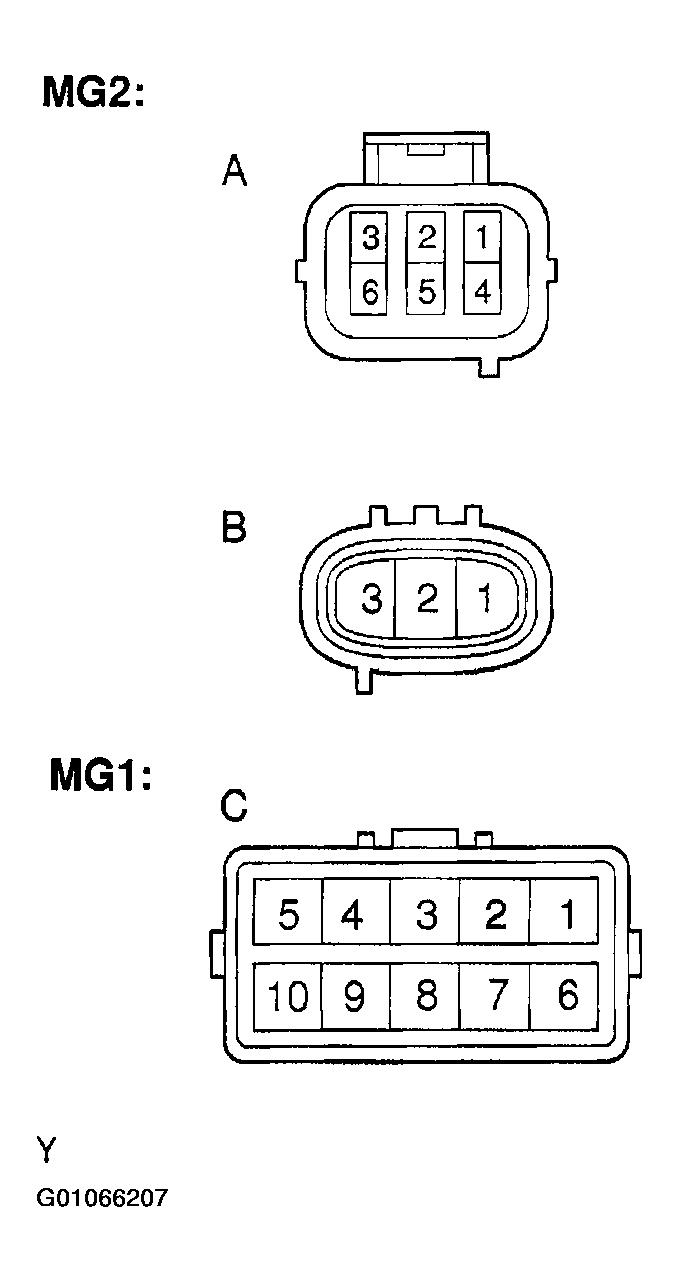

Fig 3: Identifying Speed Sensor (Resolver) & Temperature Sensor Terminals
