Section 498 (Propeller Shaft): Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

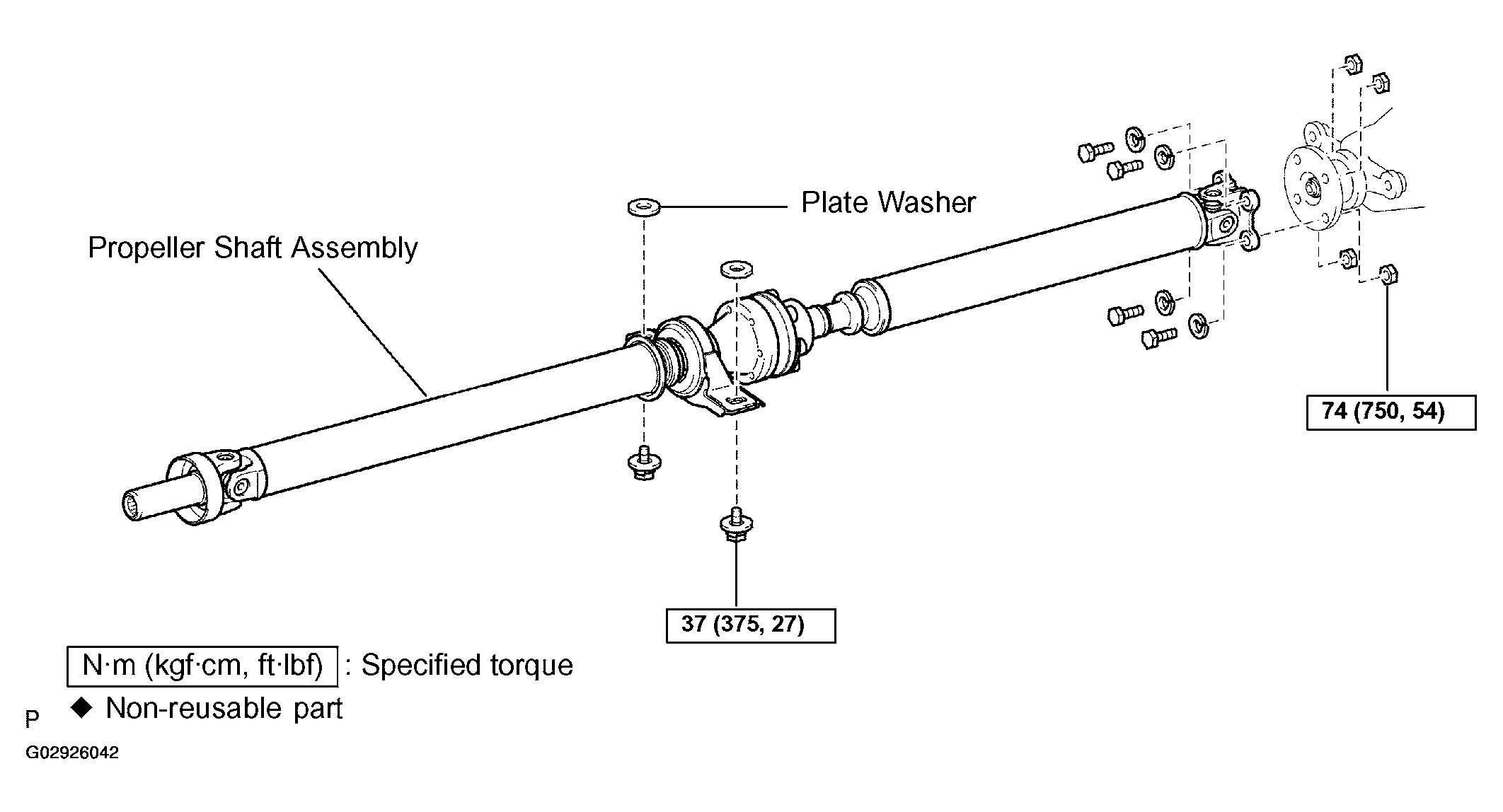

Fig 1: Identifying Propeller Shaft Assembly Components (1 Of 2)
G02926042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

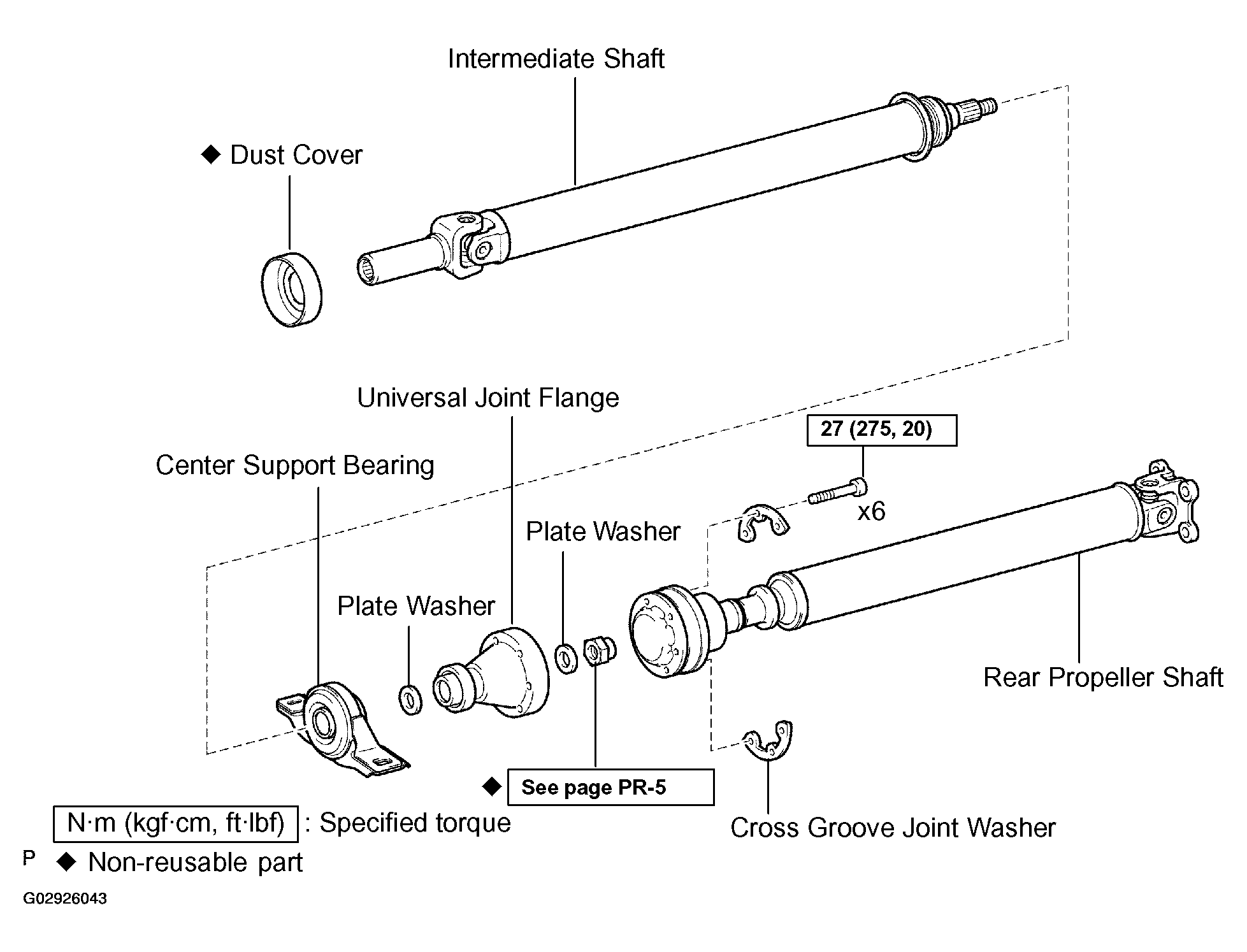

Fig 2: Identifying Propeller Shaft Assembly Components (2 Of 2)
G02926043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
