Front Door: Components

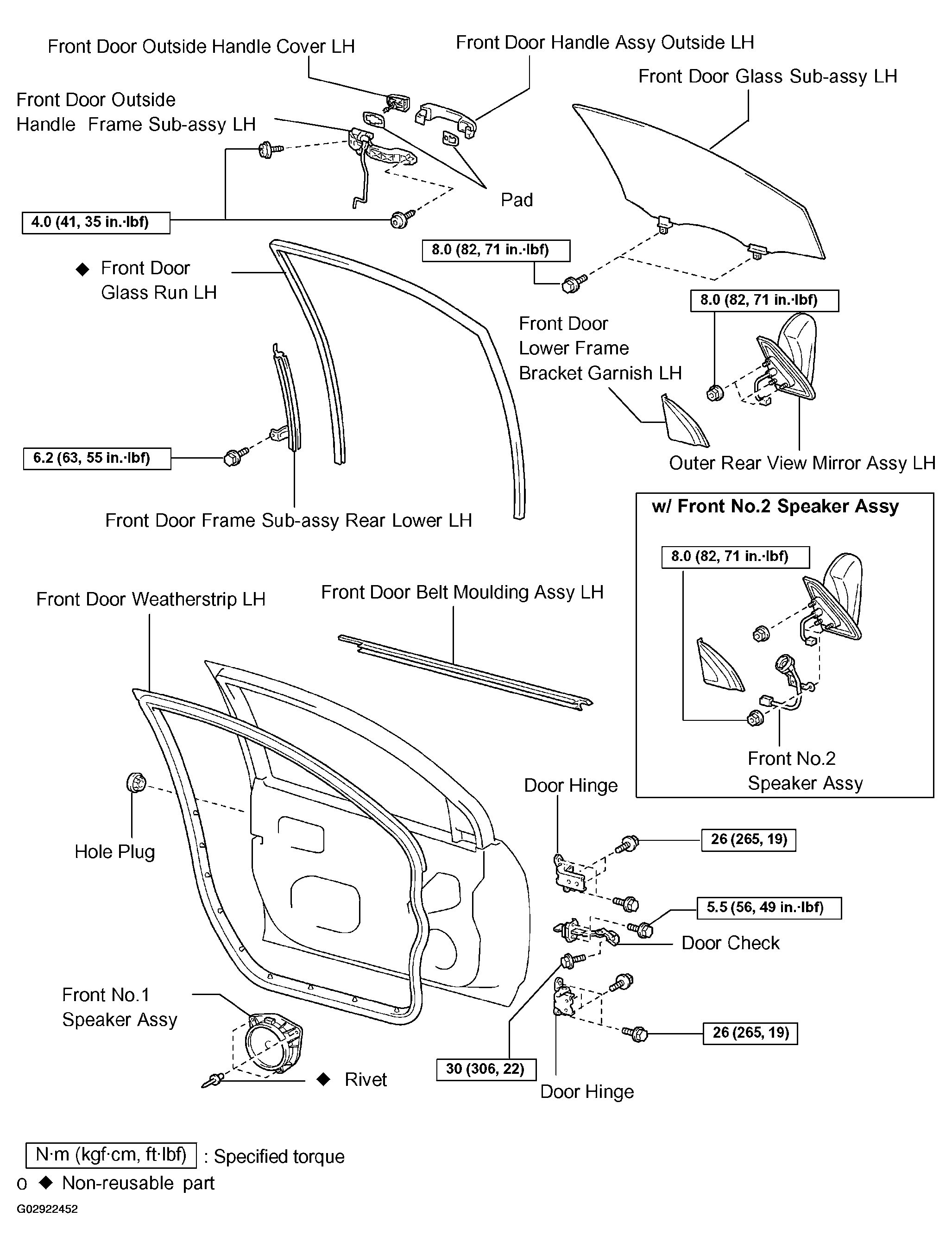

Fig 1: Identifying Components Of Front Door (1 Of 2)
G02922452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

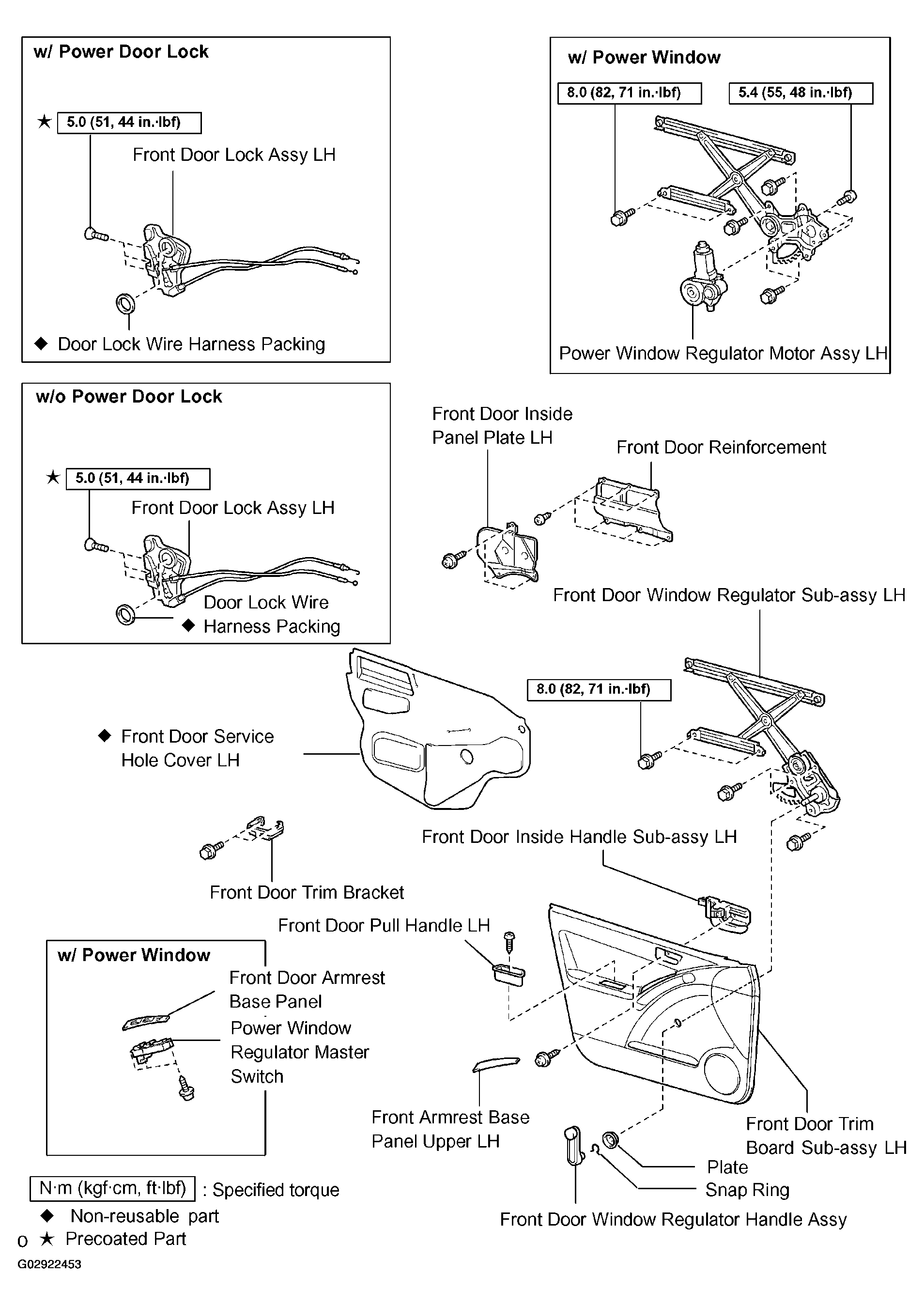

Fig 2: Identifying Components Of Front Door (2 Of 2)
G02922453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
