Oil Pump: Components

WARNING: This page is about a different car, the 2004 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Oil Pump Components (1 Of 3)
G02925735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

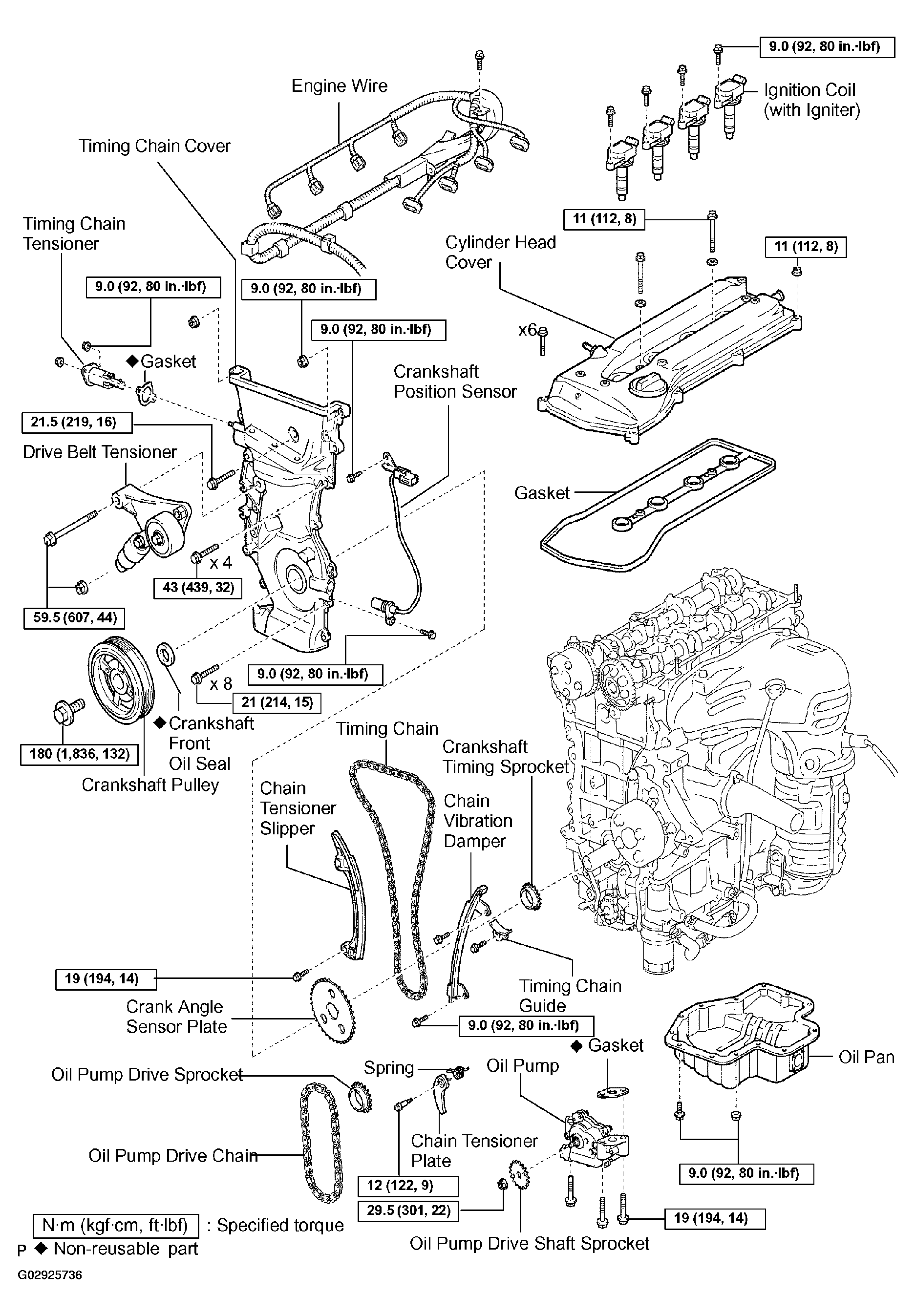

Fig 2: Oil Pump Components (2 Of 3)
G02925736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

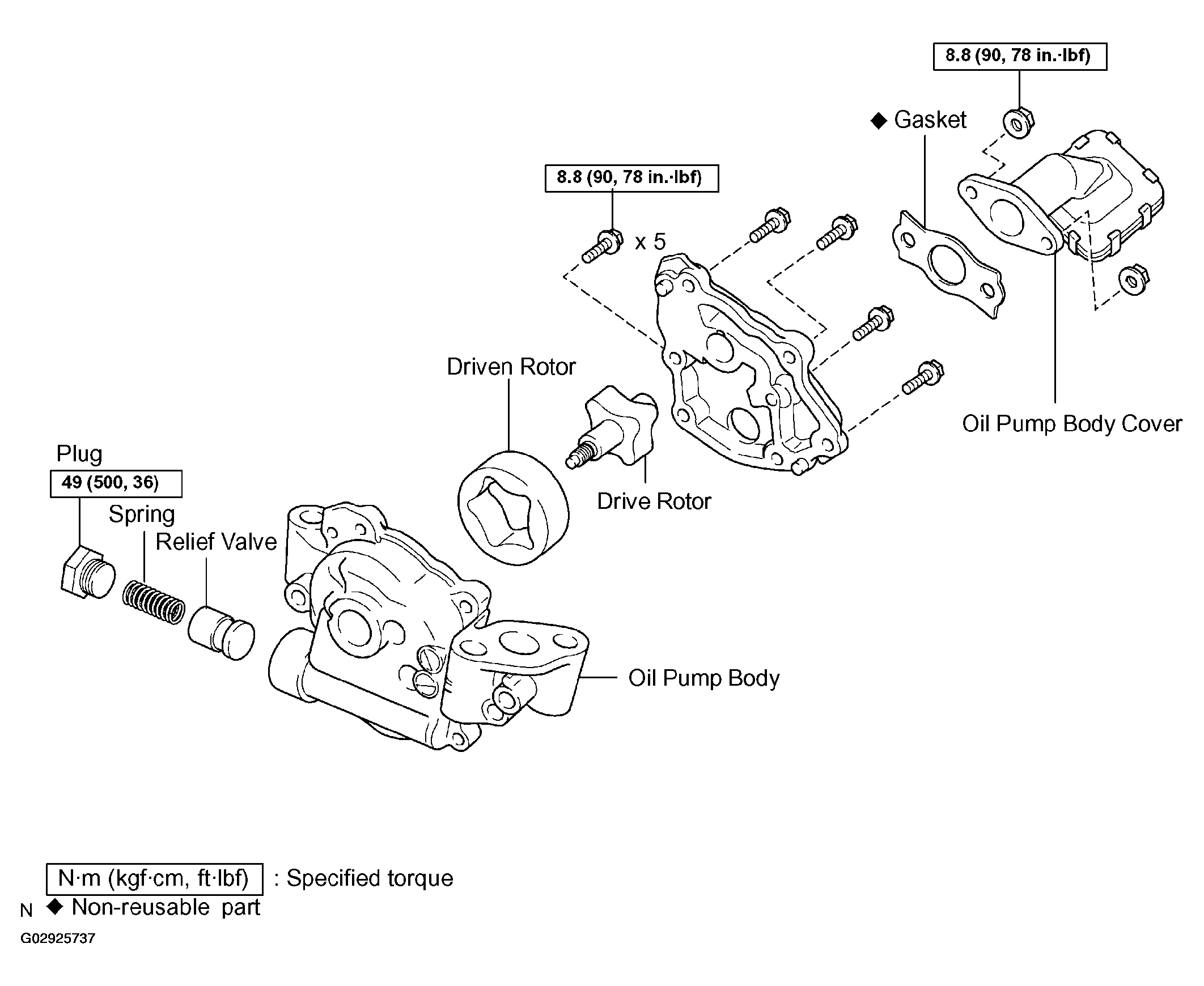

Fig 3: Oil Pump Components (3 Of 3)
G02925737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
