Sliding Roof: Components

WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

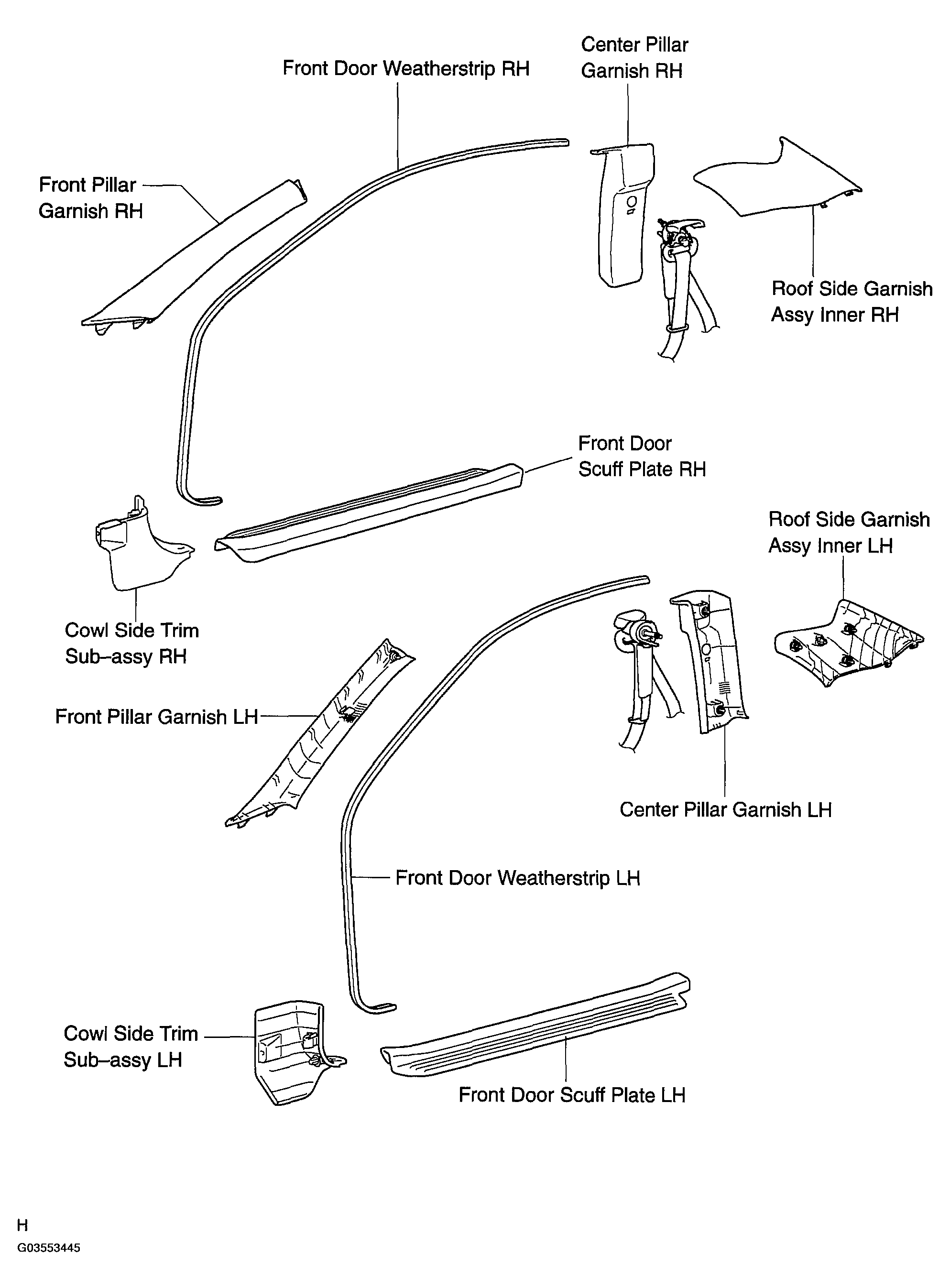

Fig 1: Identifying Sliding Roof Components (1 Of 3)
G03553445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

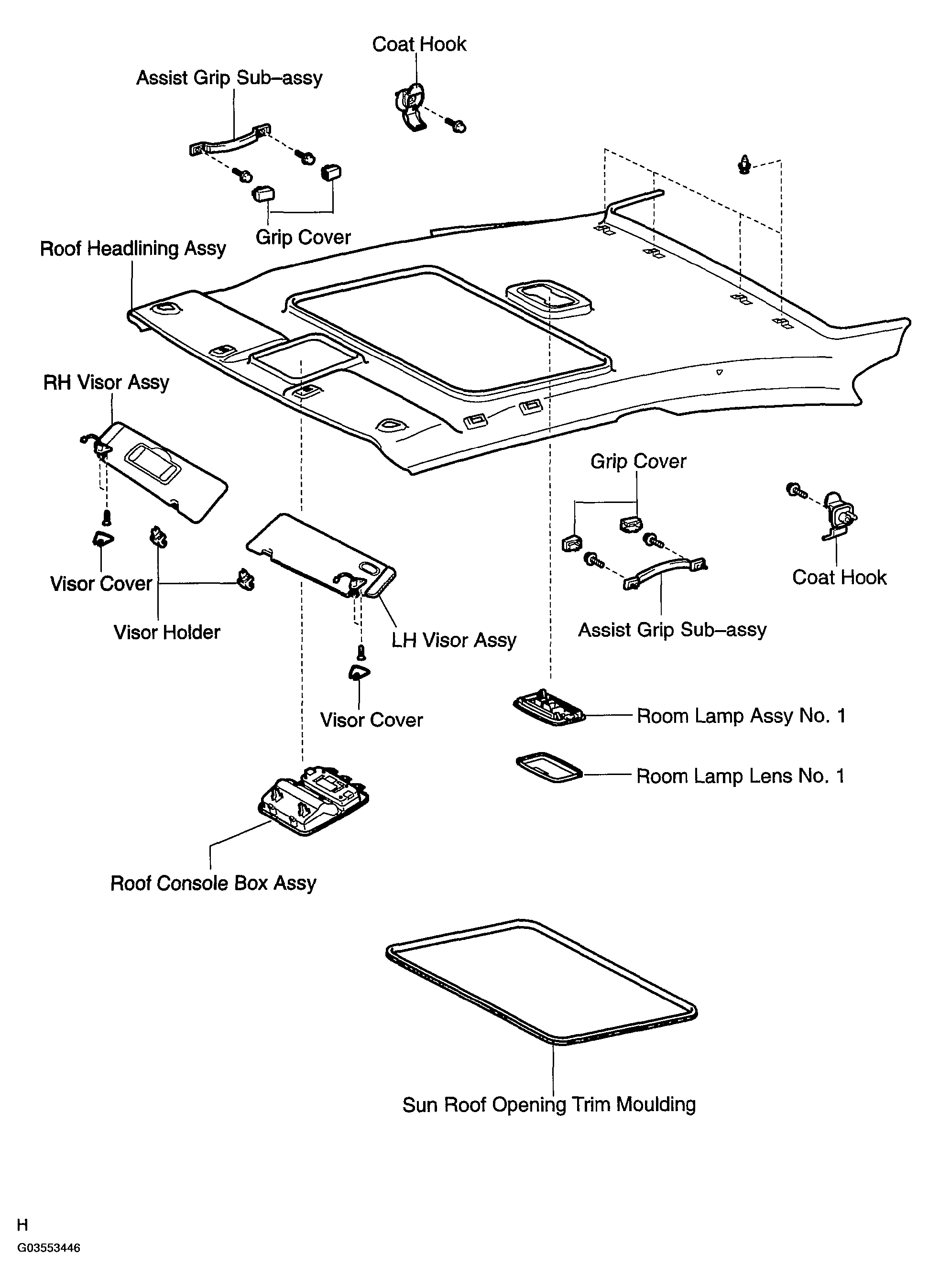

Fig 2: Identifying Sliding Roof Components (2 Of 3)
G03553446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

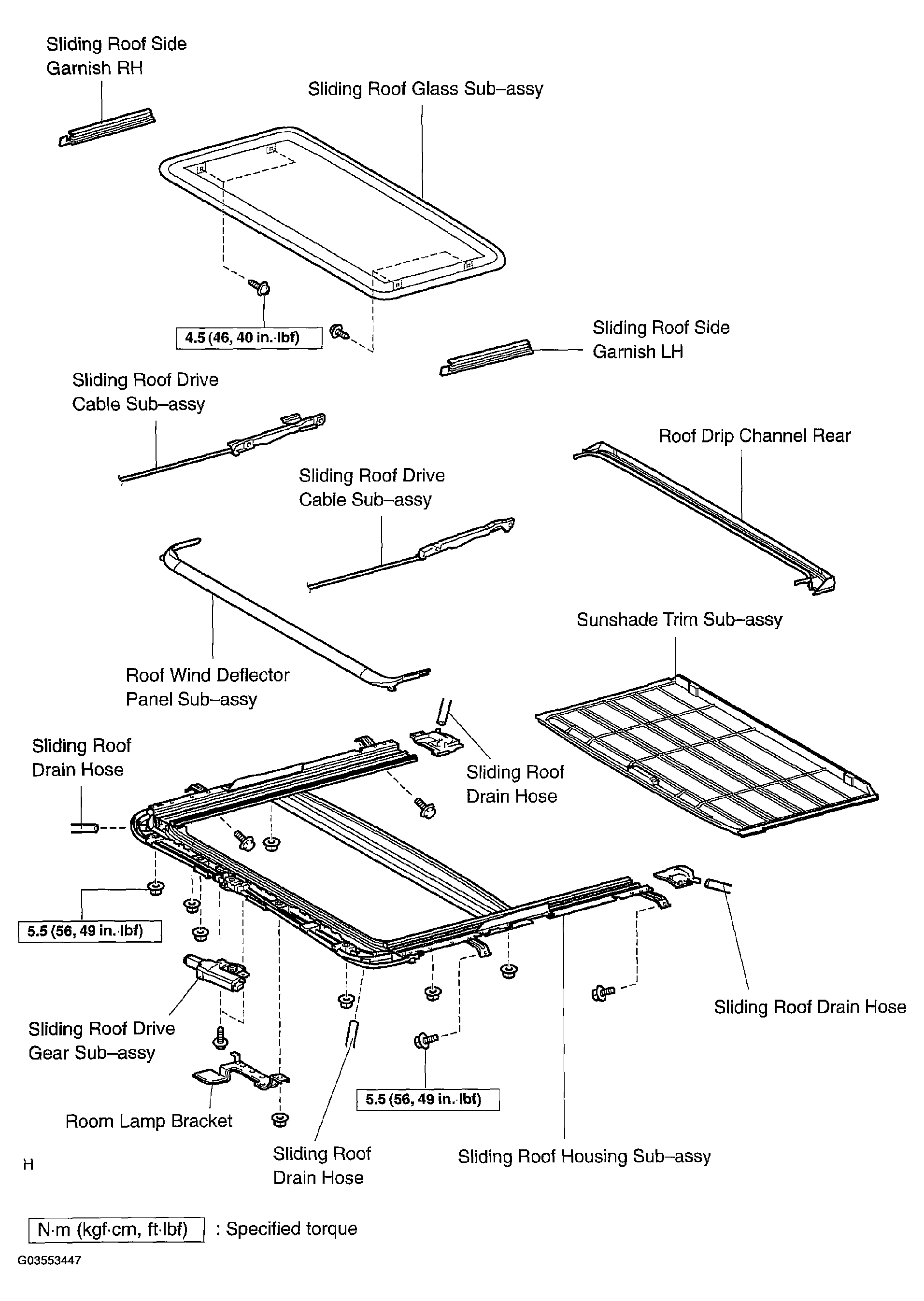

Fig 3: Identifying Sliding Roof Components (3 Of 3)
G03553447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
