Customer Problem Analysis Check

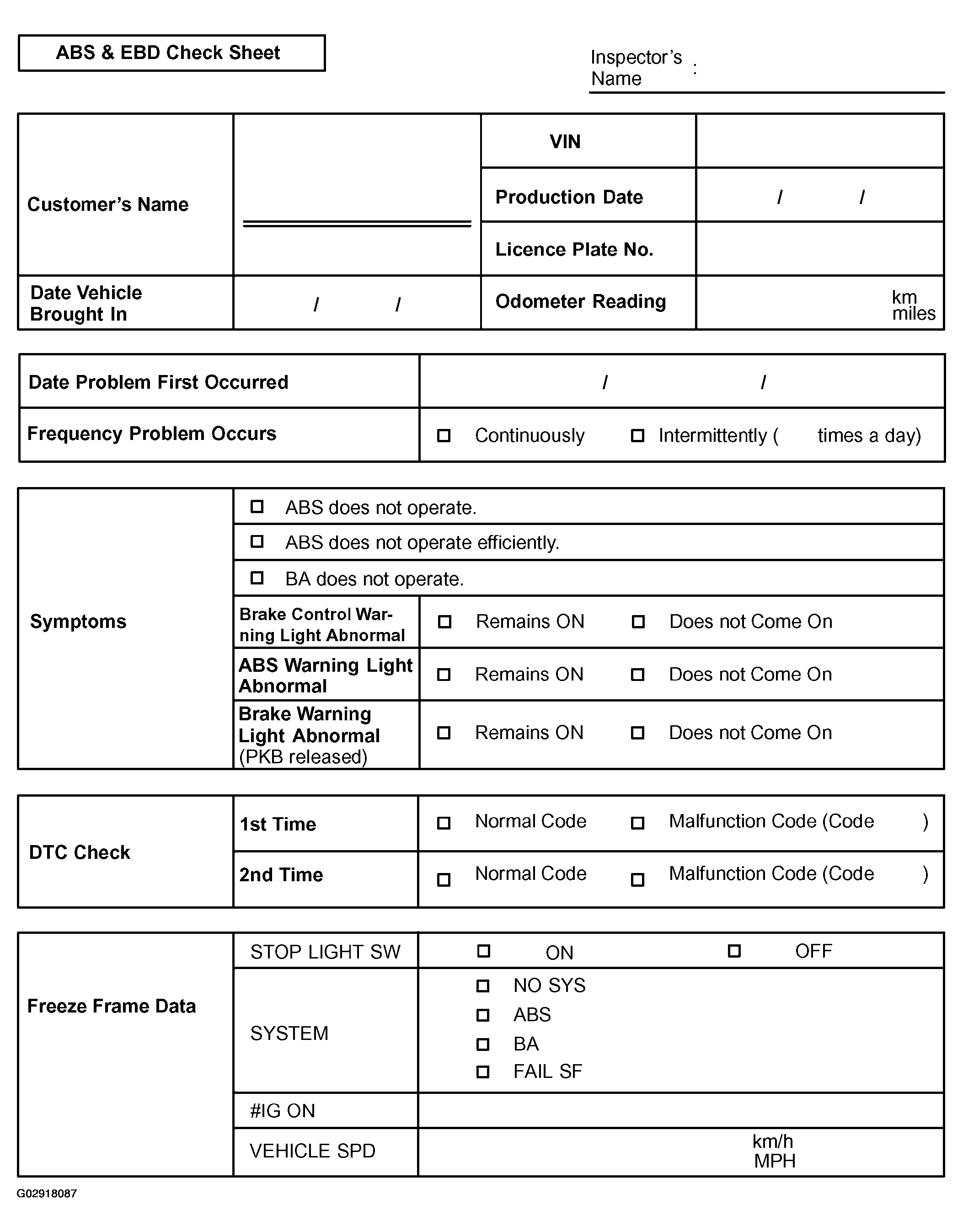

Fig 1: ABS And EBD Check Sheet
G02918087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

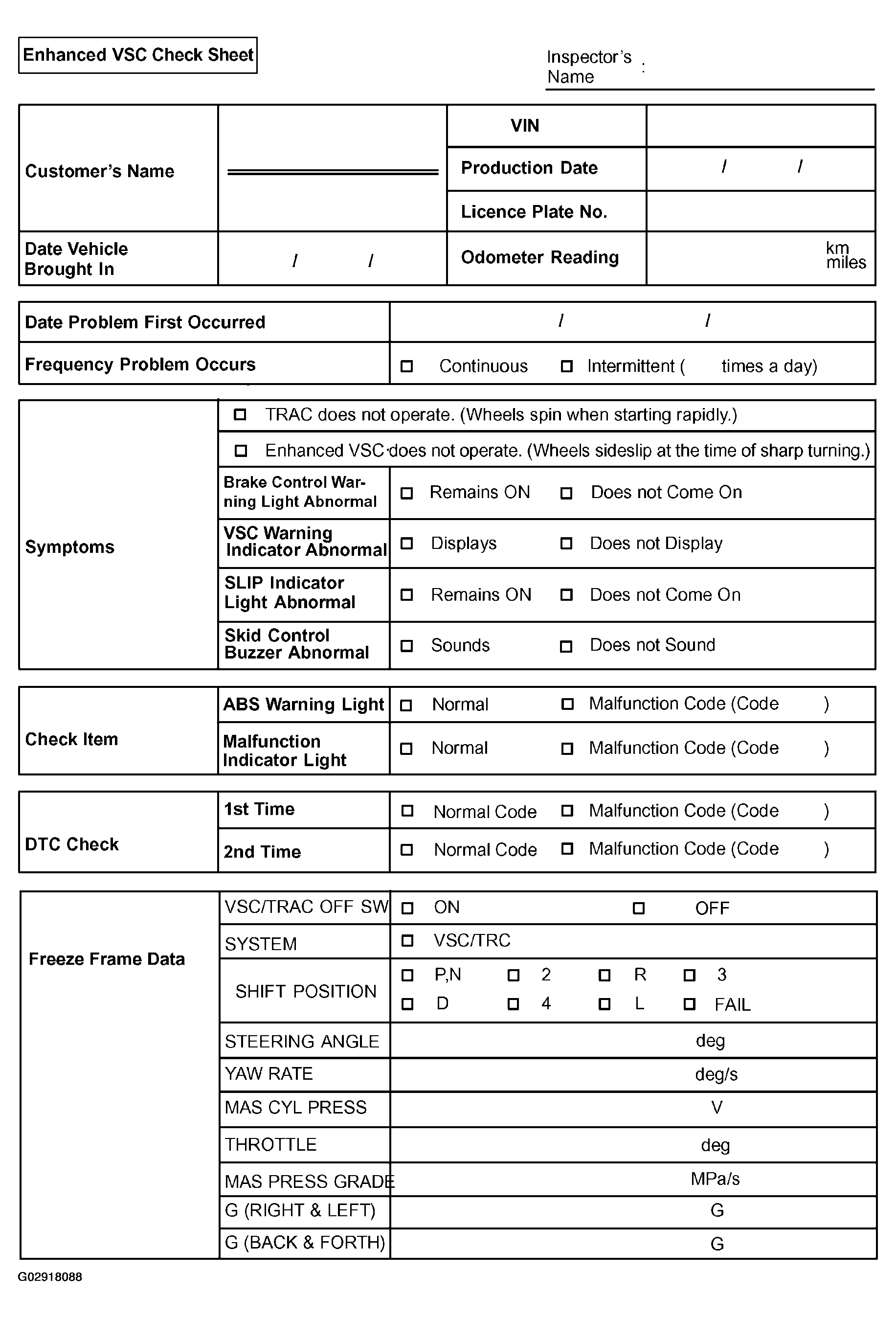

Fig 2: Enhanced VSC Check Sheet
G02918088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
