ECM Power Source Circuit: Wiring Diagram

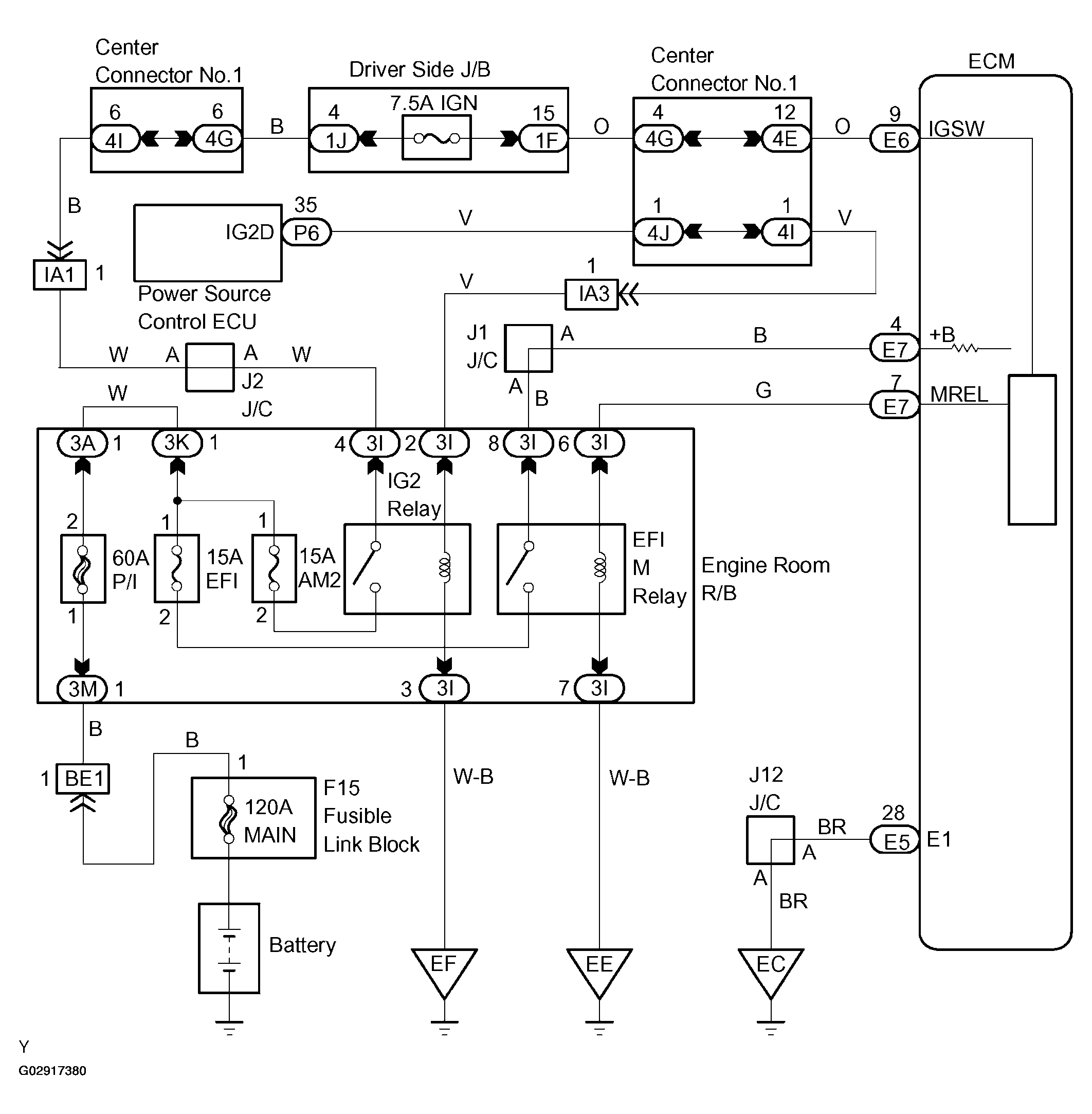

Fig 1: ECM Power Source Circuit Diagram
G02917380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
