Communication With Other Computers

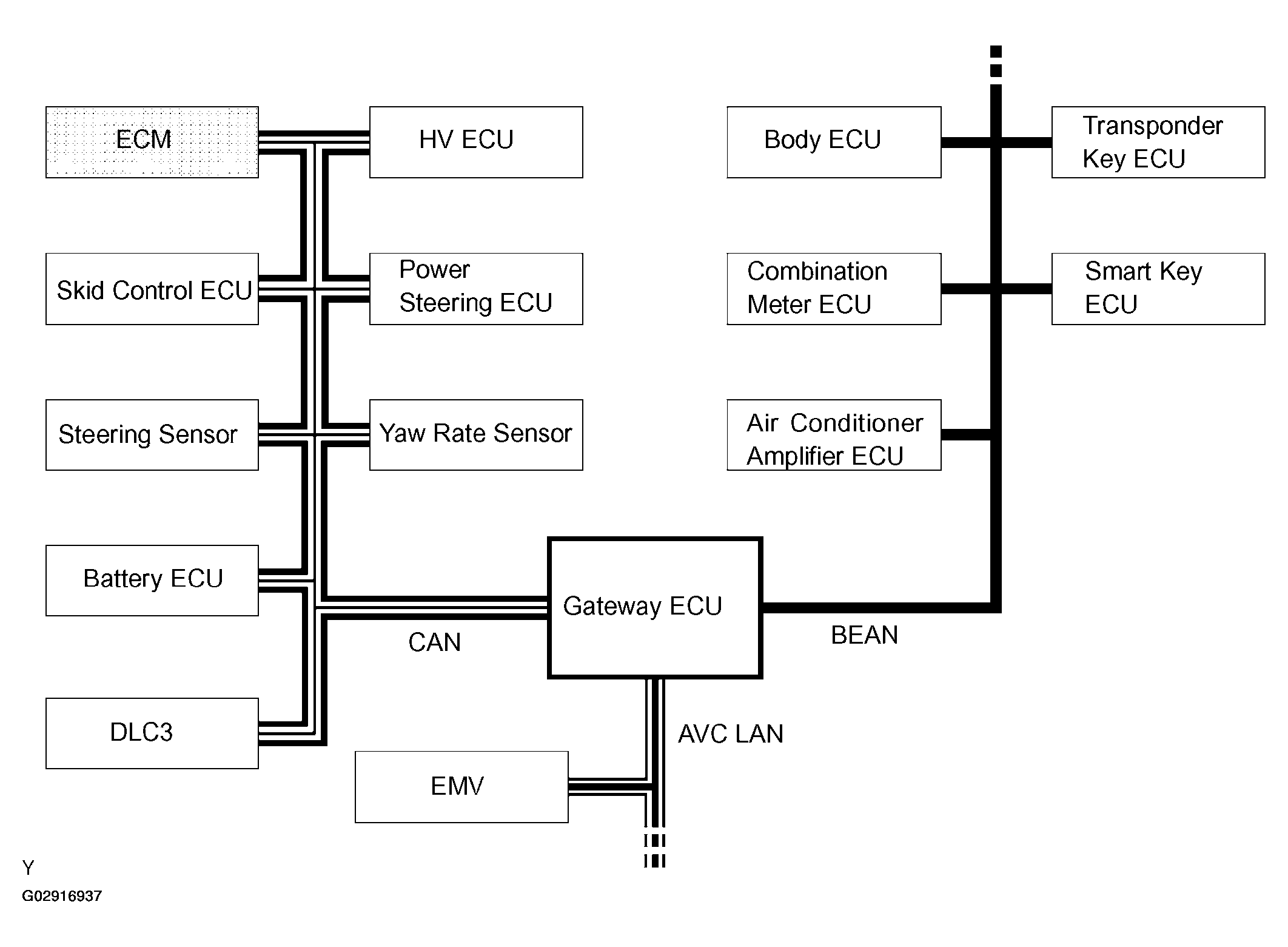

Fig 1: Identifying Communication With Other Computers
G02916937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
