Power Window Control System:

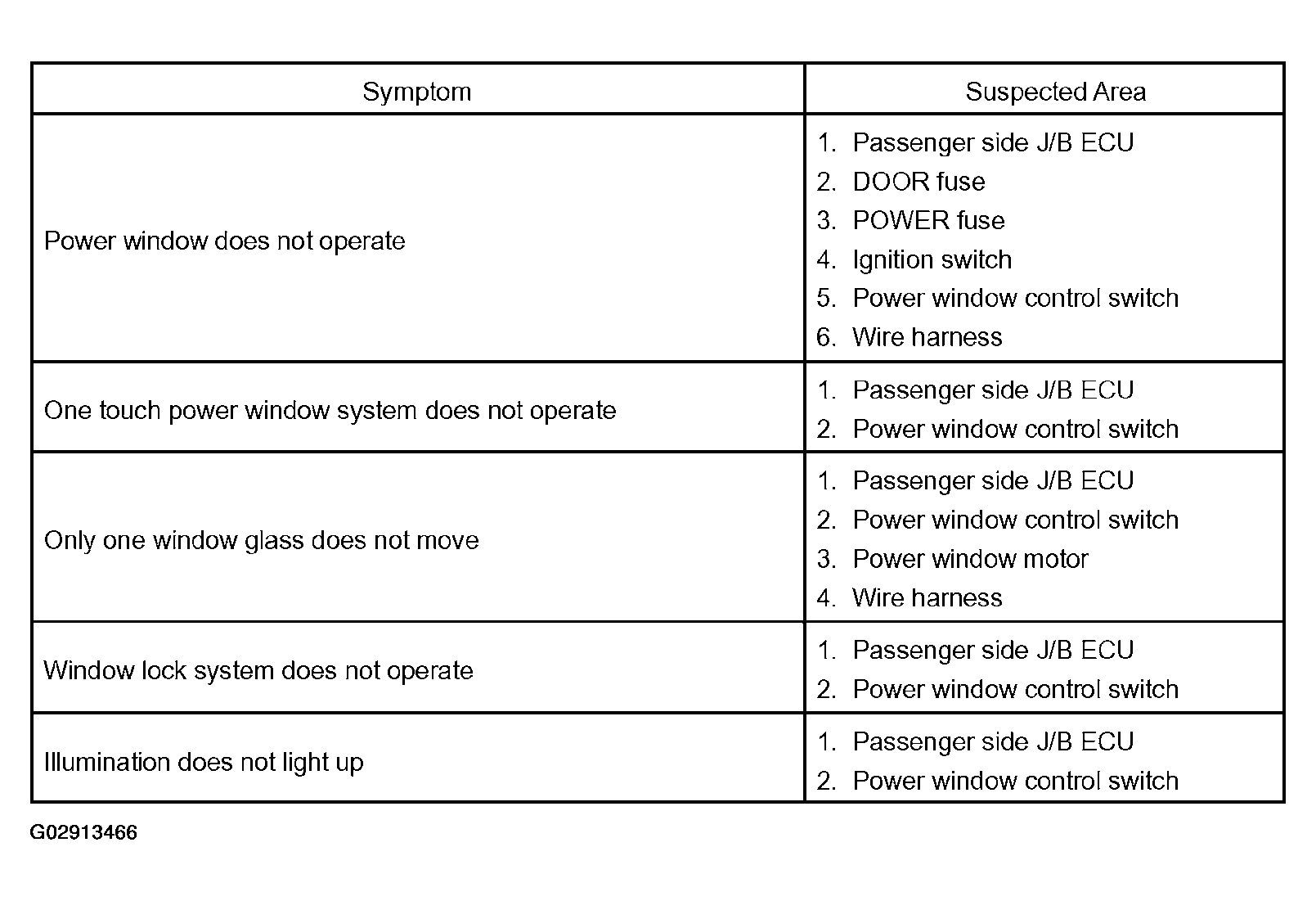

Fig 1: Problem Symptom Table - Power Window Control System
G02913466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
