Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Actuator & ECU | At right side of engine compartment. See Figure. |

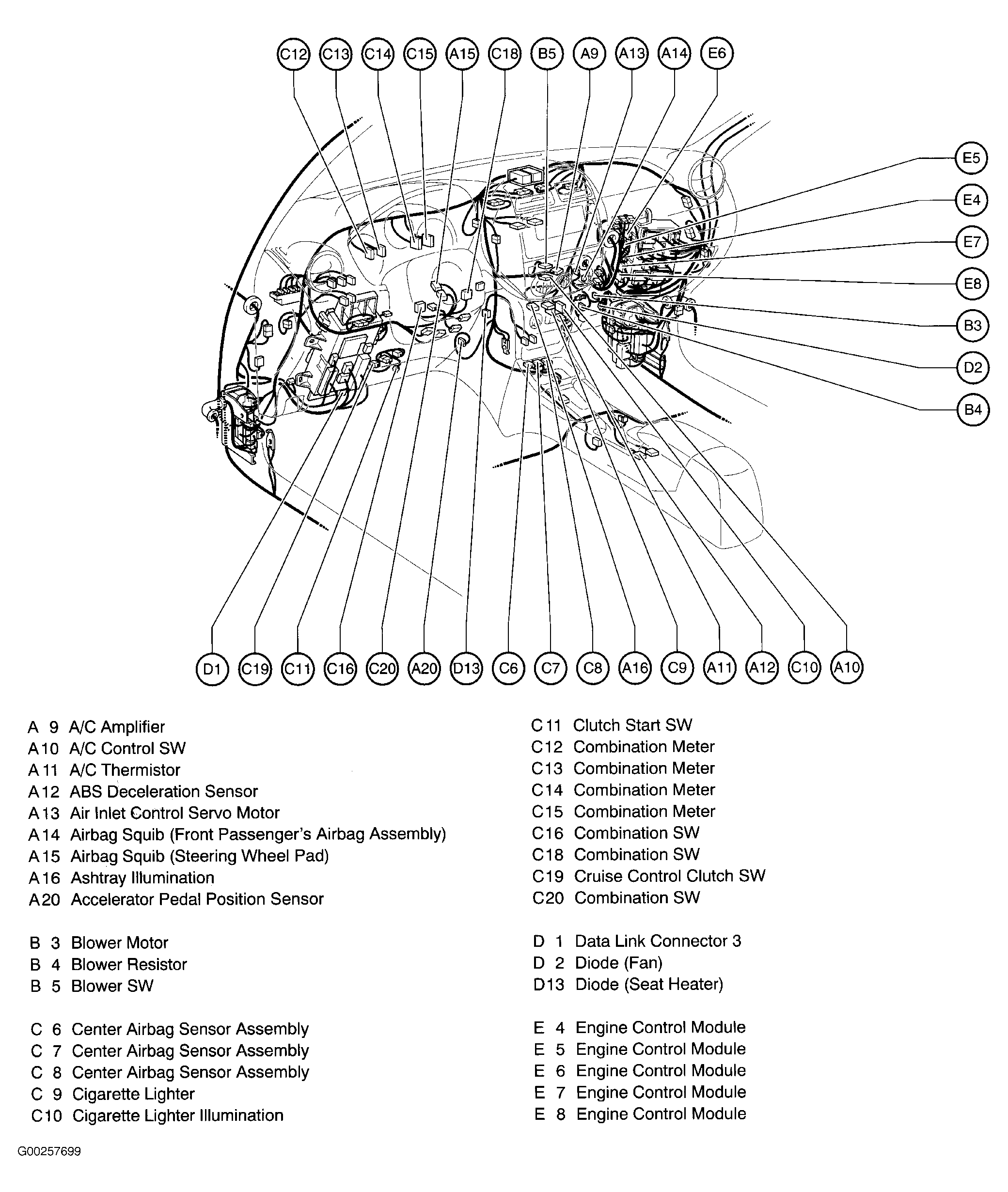

| Center Air Bag Sensor Assembly | Below front of center floor console. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Passenger Side J/B ECU | On passenger side J/B. See Figure. |
| Shift Lock ECU | Below center floor console, near base of shift lever. See Figure. |
| Skid Control With Actuator | At right side of engine compartment. See Figure. |

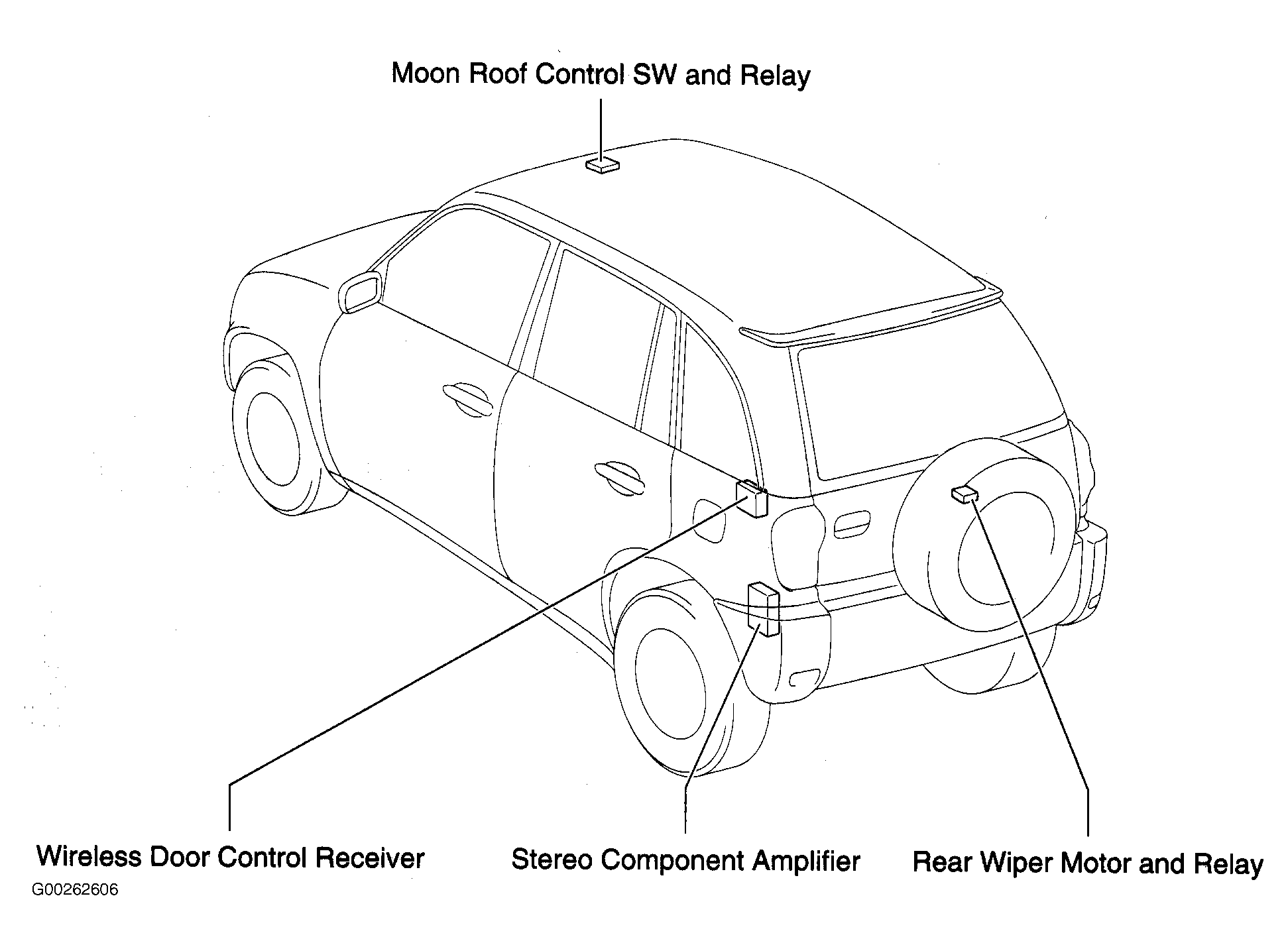

| Wireless Door Control Receiver | At left rear side of cargo area. See Figure. |
