DTC P0500: Vehicle Speed Sensor Malfunction: Wiring Diagram

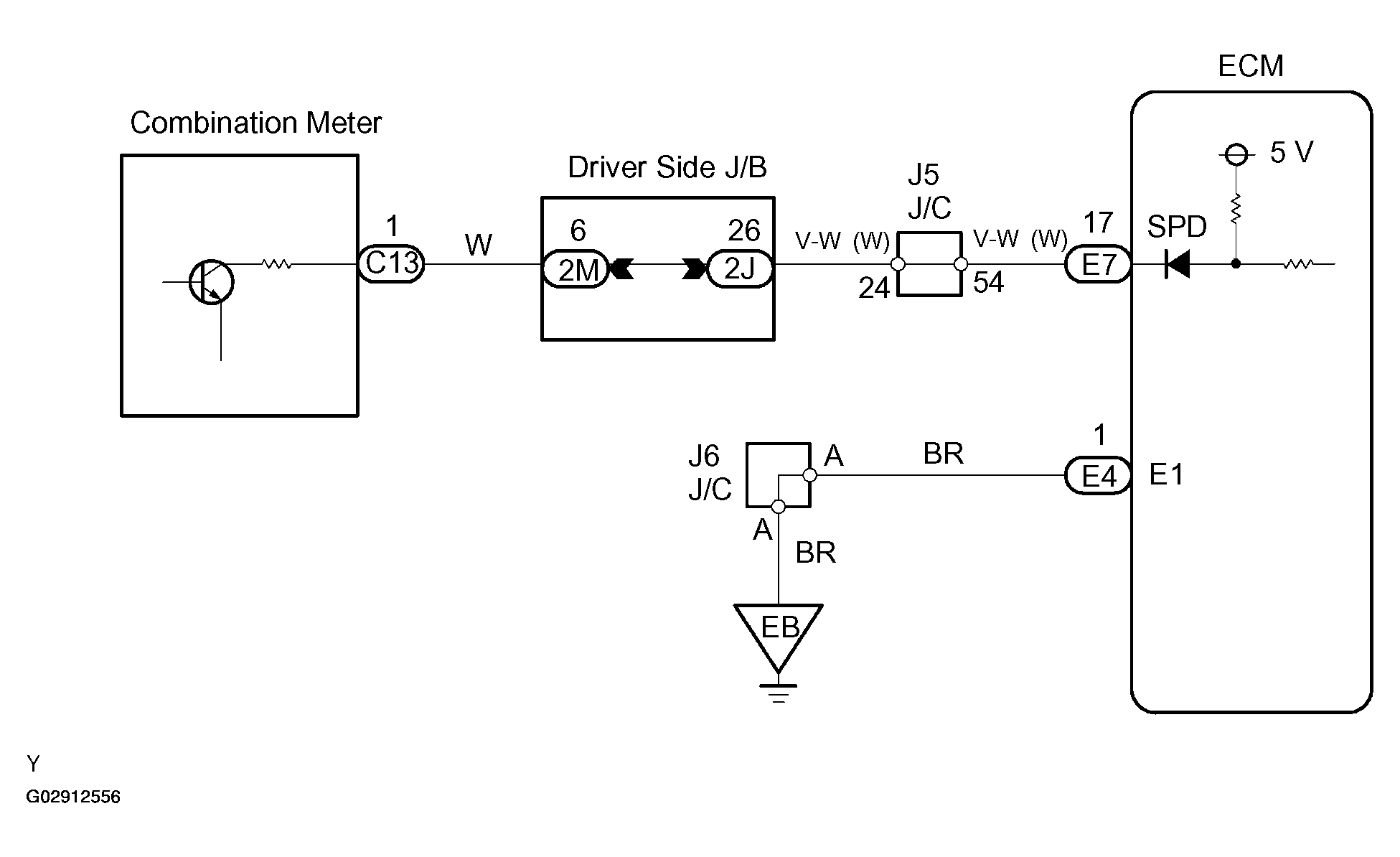

Fig 1: Vehicle Speed Sensor Wiring Diagram
G02912556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
