Sliding Roof System

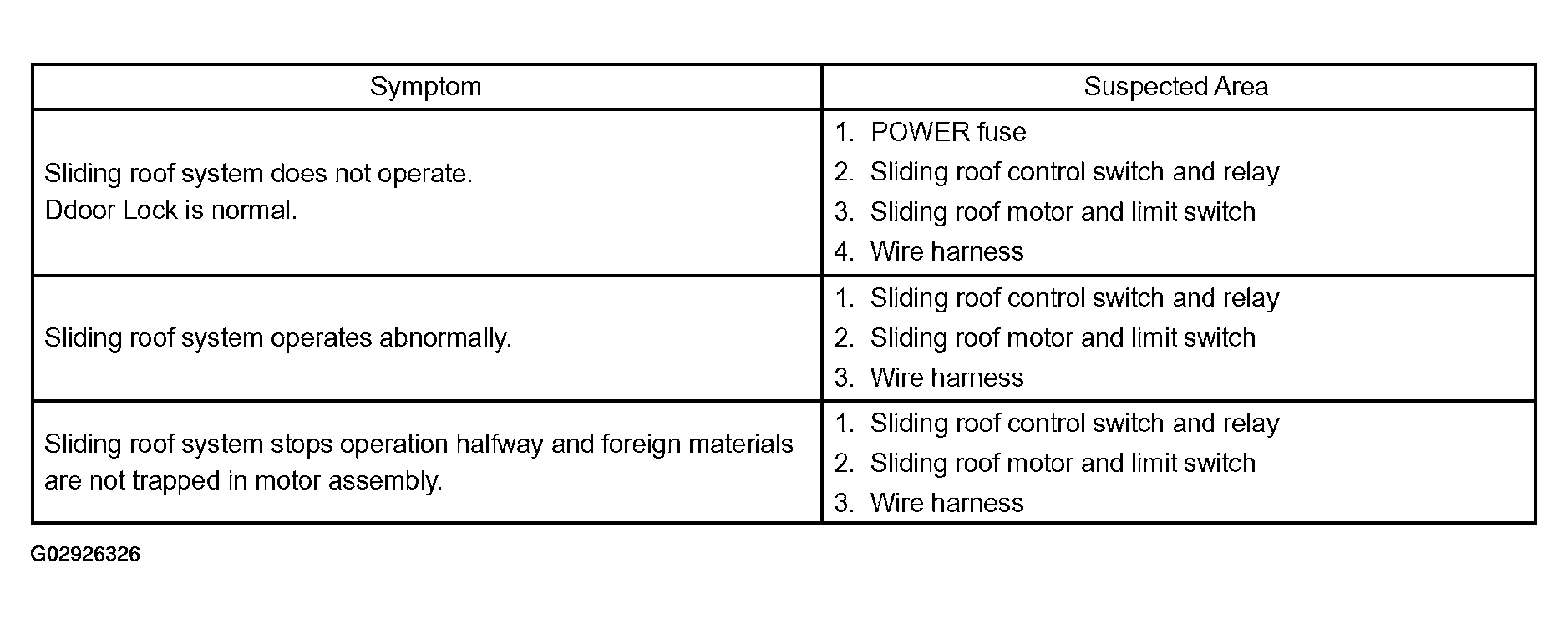

Fig 1: Sliding Roof System Troubleshooting Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
