Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

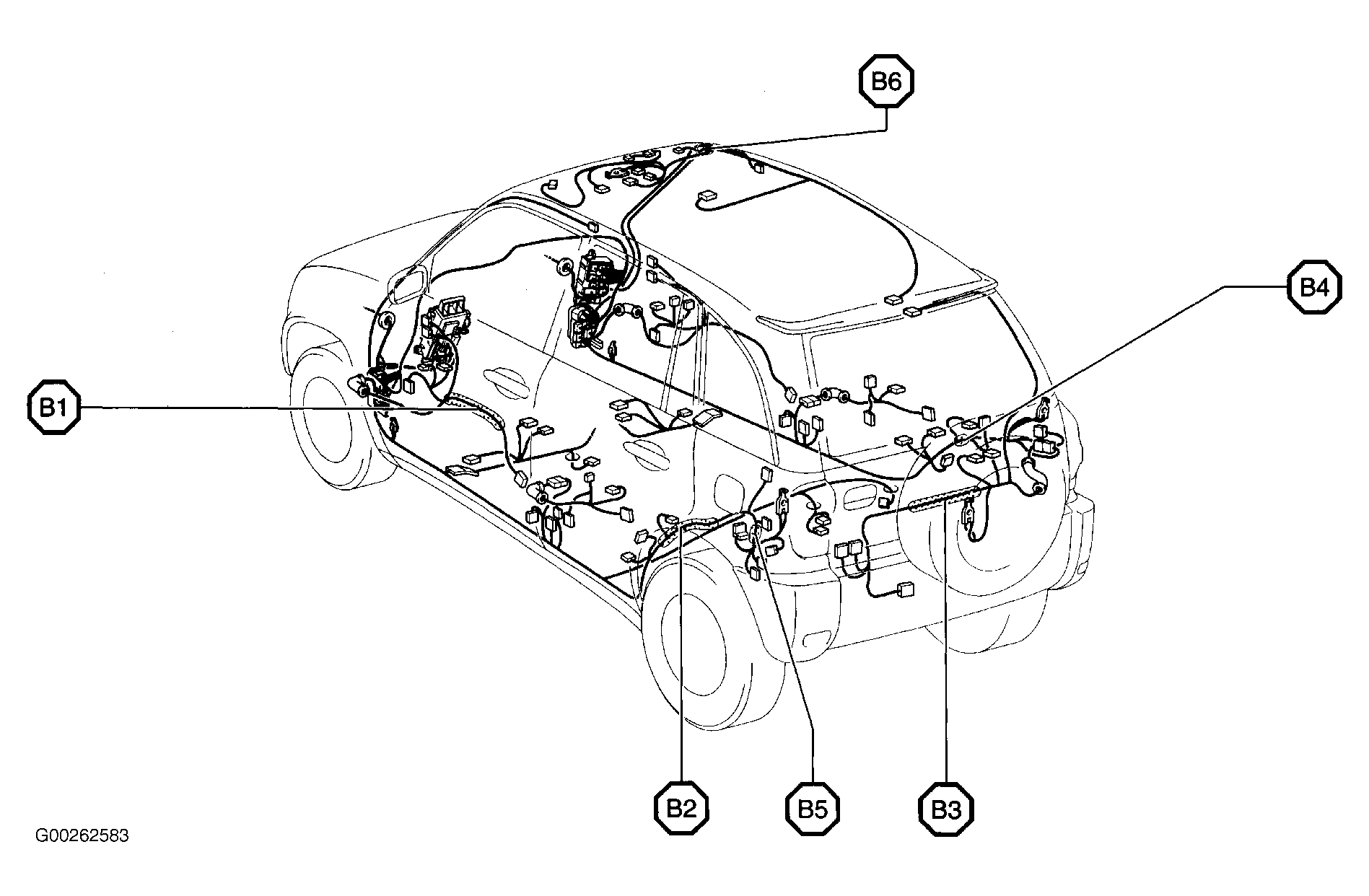

| B1 | In body harness, at left front door. See Figure. |
| B2 | In body harness, above left rear wheelwell. See Figure. |
| B3 | In body harness, at center of back door. See Figure. |
| B4 | In body harness, above right rear wheelwell. See Figure. |
| B5 | In body harness, behind left rear quarterpanel. See Figure. |
| B6 | In roof harness, at right front corner of roof. See Figure. |

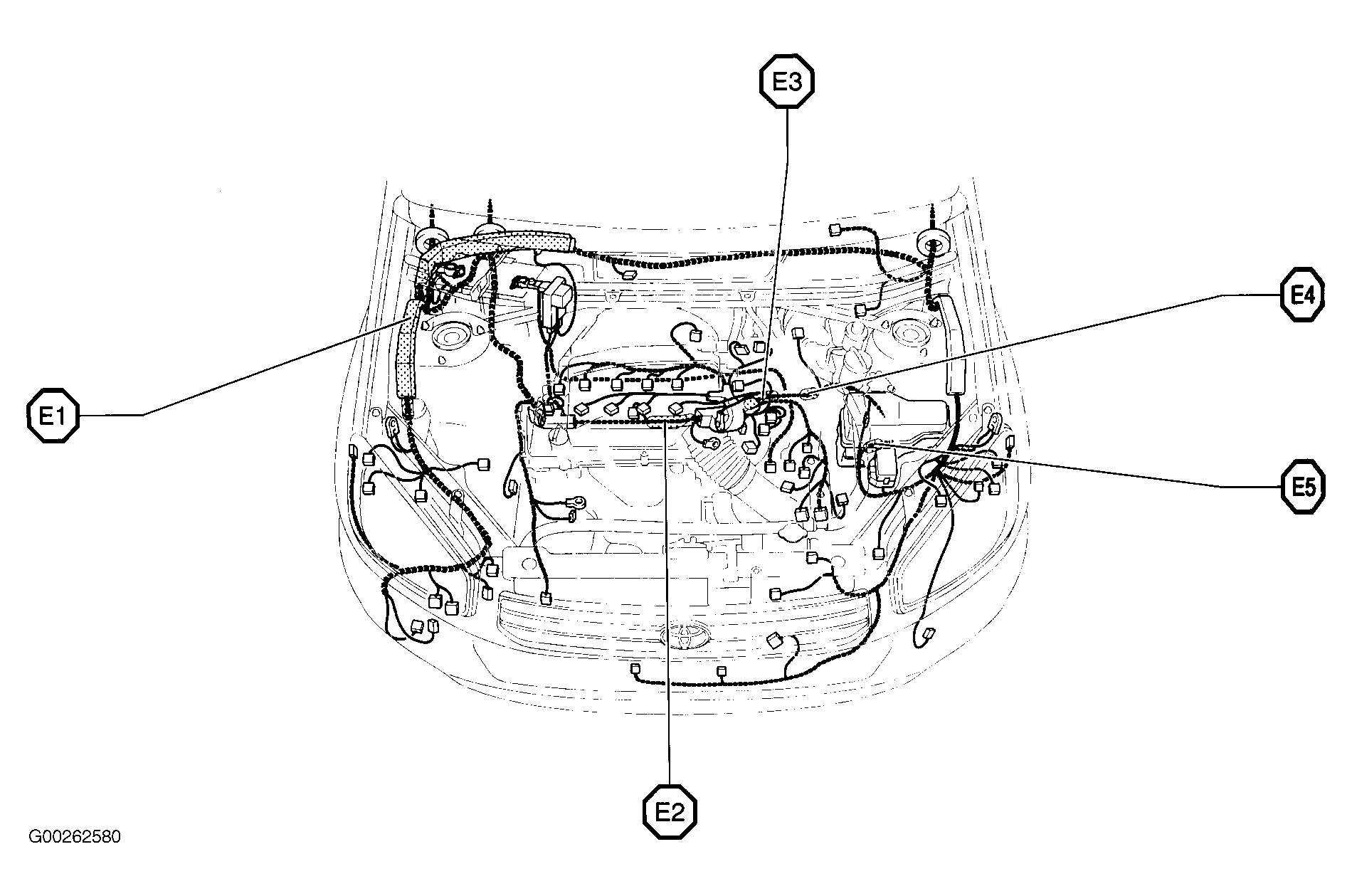

| E1 | In engine compartment harness, at right side of engine compartment. See Figure. |
| E2 | In engine compartment harness, at top of engine. See Figure. |
| E3 | In engine compartment harness, at rear of engine. See Figure. |
| E4 | In engine compartment harness, at rear of engine. See Figure. |
| E5 | In engine compartment harness, at left side of engine compartment. See Figure. |

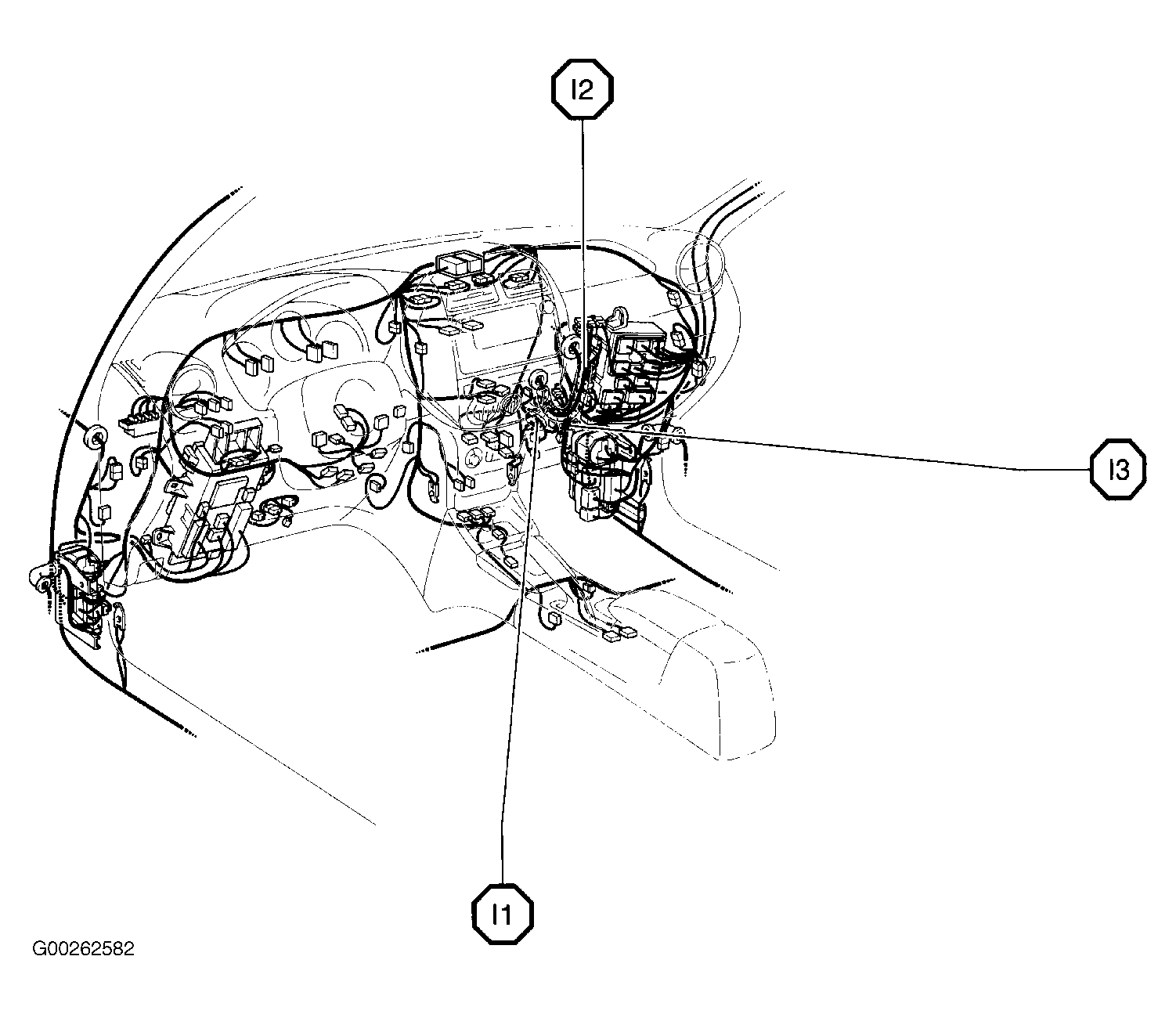

| I1 | In dash harness, behind right side of dash. See Figure. |
| I2 | In dash harness, behind right side of dash. See Figure. |
| I3 | In dash harness, behind right side of dash. See Figure. |
