Repair Procedures

HINT:

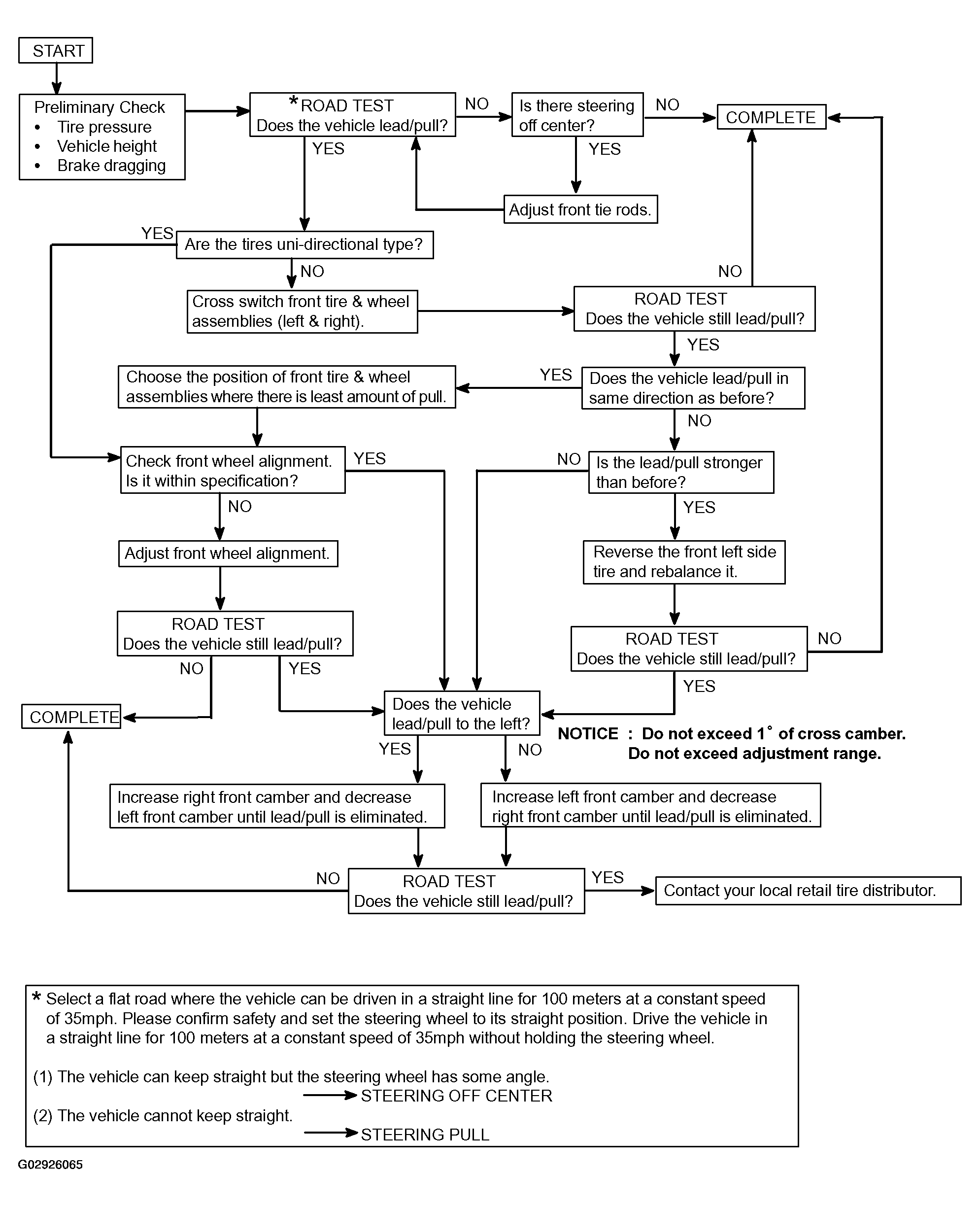

This is a flow chart for vehicle pull.

Fig 1: Repair Procedure Flow Chart
G02926065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
