Body & Frame: Windows: Windshield: Components

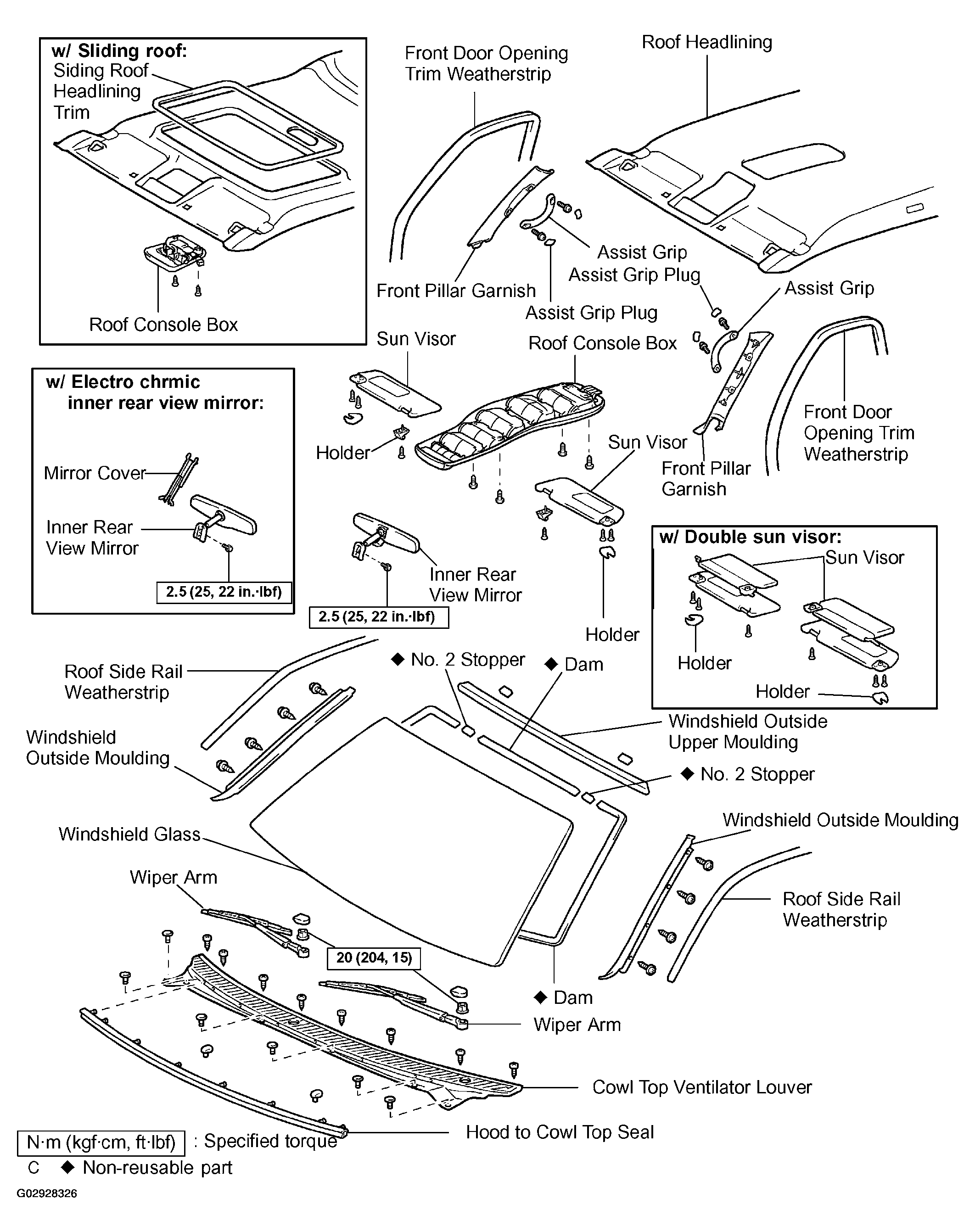

Fig 1: Exploded View Of Wind Shield And Related Components
G02928326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
