Rear Side Window: Components

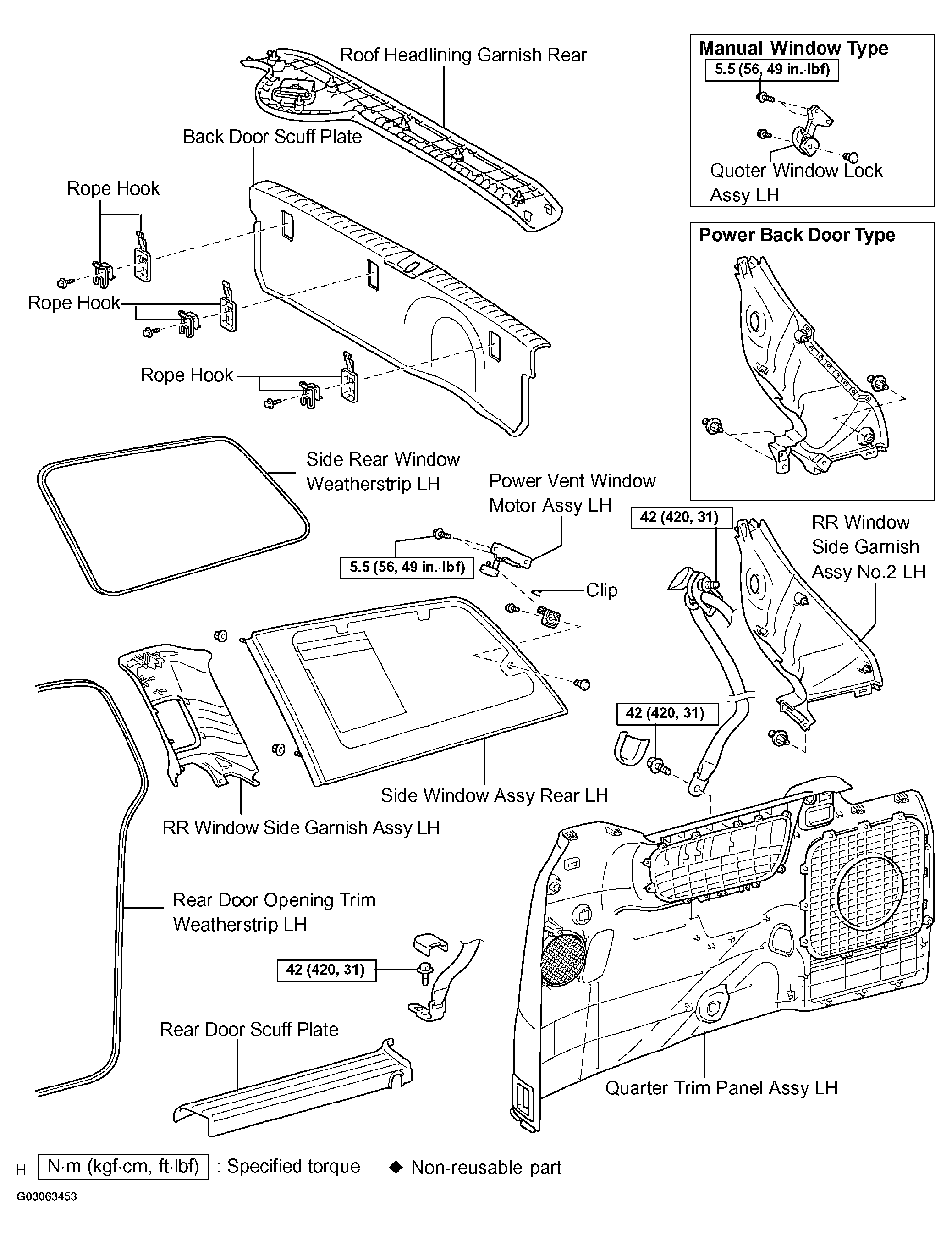

Fig 1: Exploded View Of Side Window Assy Rear LH Components
G03063453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
