Slide Door System: Replacement

REPLACE SLIDE DOOR HALF OPEN STOPPER SUB-ASSY
1. Using a screwdriver, remove the 2 clips and cover.
  NOTE: Tape the screwdriver tip before use.

  Fig 1: Removing Clips & Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and disconnect the control cable from the open striker.

  Fig 2: Disconnecting Control Cable From Open Striker
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the control cable from the half open stopper.
4. Remove the 2 bolts and half open stopper.

  Fig 3: Disconnecting Control Cable From Half Open Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the half open stopper with the 2 bolts.
  Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
6. Connect the control cable to the half open stopper.

  Fig 4: Connecting Control Cable To Half Open Stopper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the control cable to the open striker with the 2 nuts.
  Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

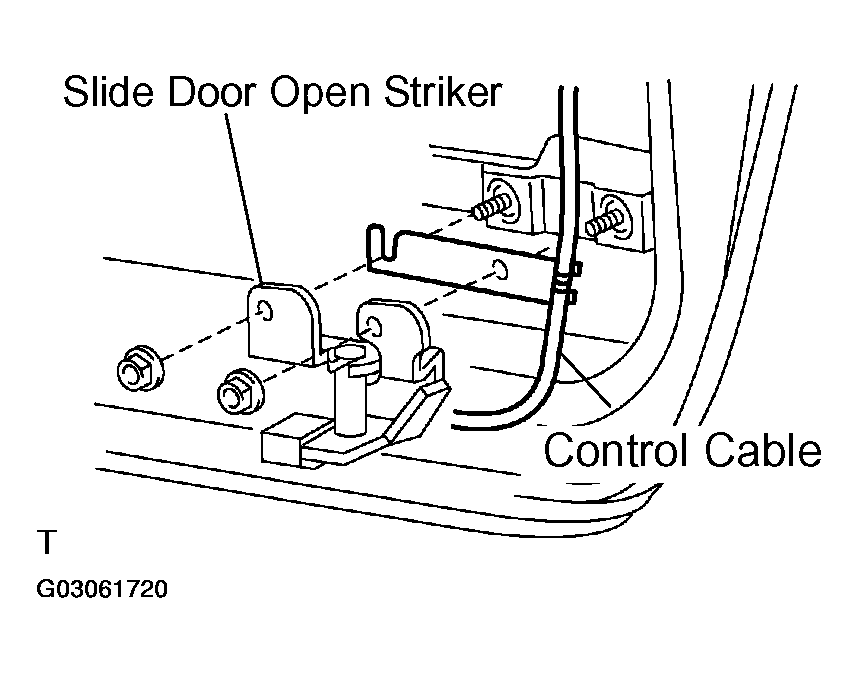

Fig 5: Connecting Control Cable To Open Striker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE SLIDE DOOR HALF OPEN STOPPER CONTROL ASSY
1. Using a screwdriver, remove the rear door scuff plate (See REPLACEMENT ).
2. Using a screwdriver, remove the back door scuff plate (See REPLACEMENT ).
3. Using a screwdriver, remove the quarter trim panel (See REPLACEMENT ).

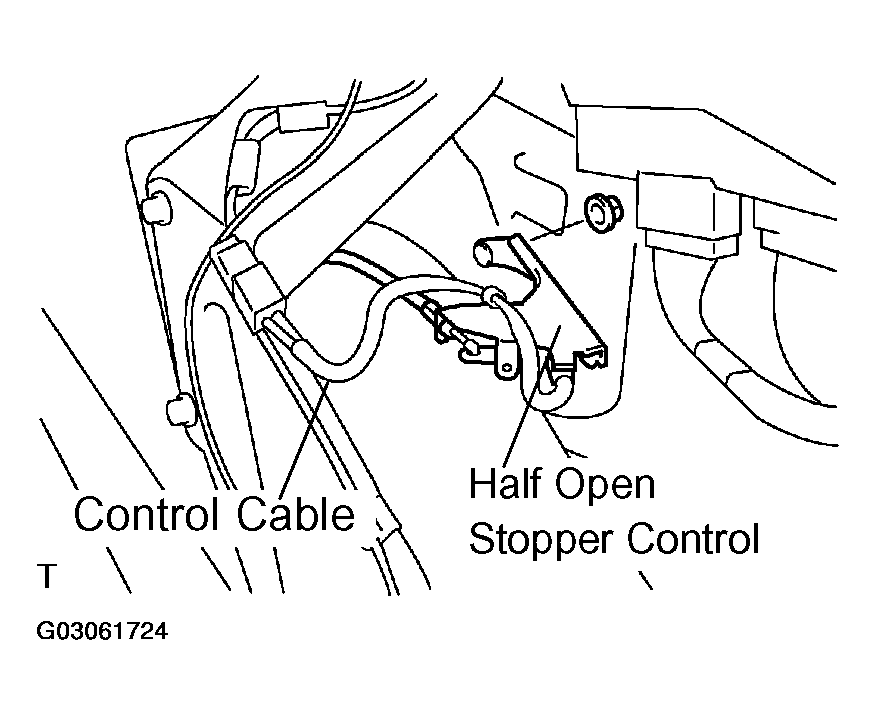

  Fig 6: Removing Half Open Stopper Control
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 nuts and half open stopper control.
5. Remove the control cable.
6. Install the control cable, as shown in the illustration.
  Dimension (A): 3.9 +/-1.5 mm (0.154 +/- 0.059 in.)

  Fig 7: Installing Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the half open stopper control with the 2 nuts.
  Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)

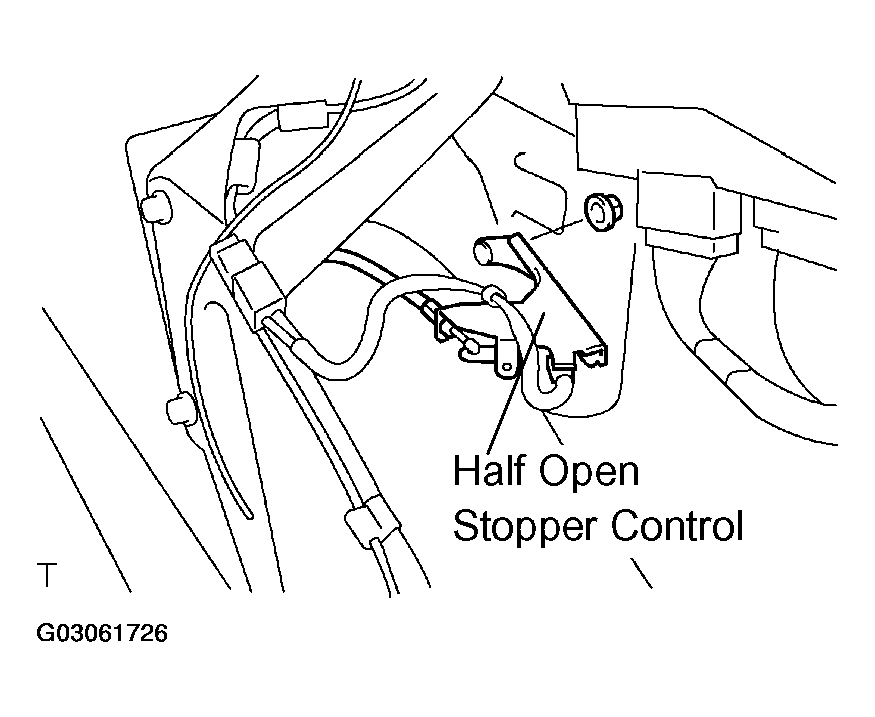

Fig 8: Installing Half Open Stopper Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE SLIDE DOOR OPEN STRIKER LH
1. Remove the 2 nuts and open striker.

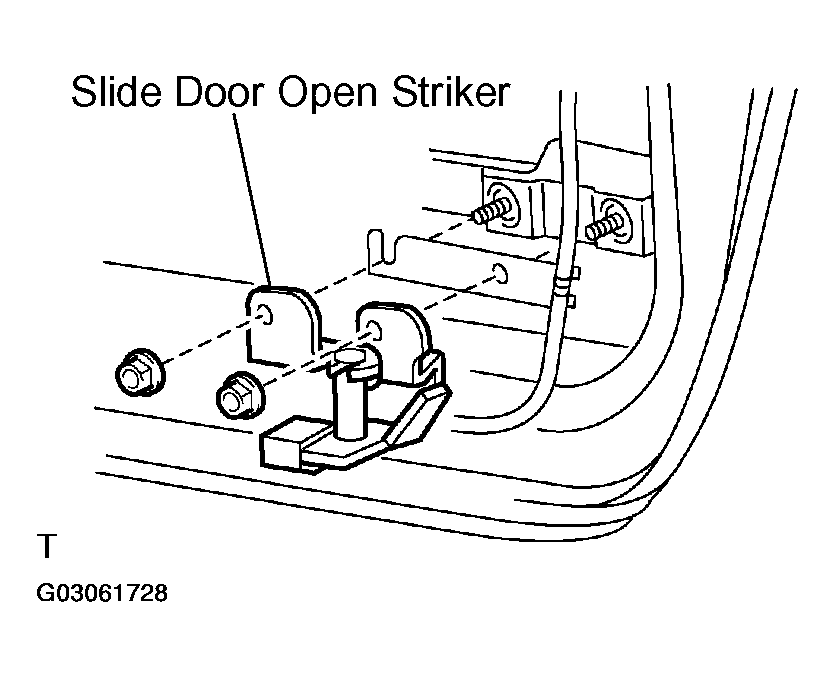

  Fig 9: Removing Slide Door Open Striker LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the open striker with the 2 nuts.
  Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
Fig 10: Installing Open Striker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE SLIDE DOOR OPEN STRIKER RH
NOTE: Use the same procedures for the LH side.
REPLACE SLIDE DOOR OPEN STOP LH
1. (a) Remove the 2 nuts and open stop.

  Fig 11: Installing Slide Door Open Stop LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the open stop with the 2 nuts.
  Torque: 7.0 N.m (71 kgf.cm, 62 in.lbf)
Fig 12: Installing Slide Door Open Stop RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE SLIDE DOOR OPEN STOP RH
NOTE: Use the same procedures for the LH side.
