Headlight And Tail Light System

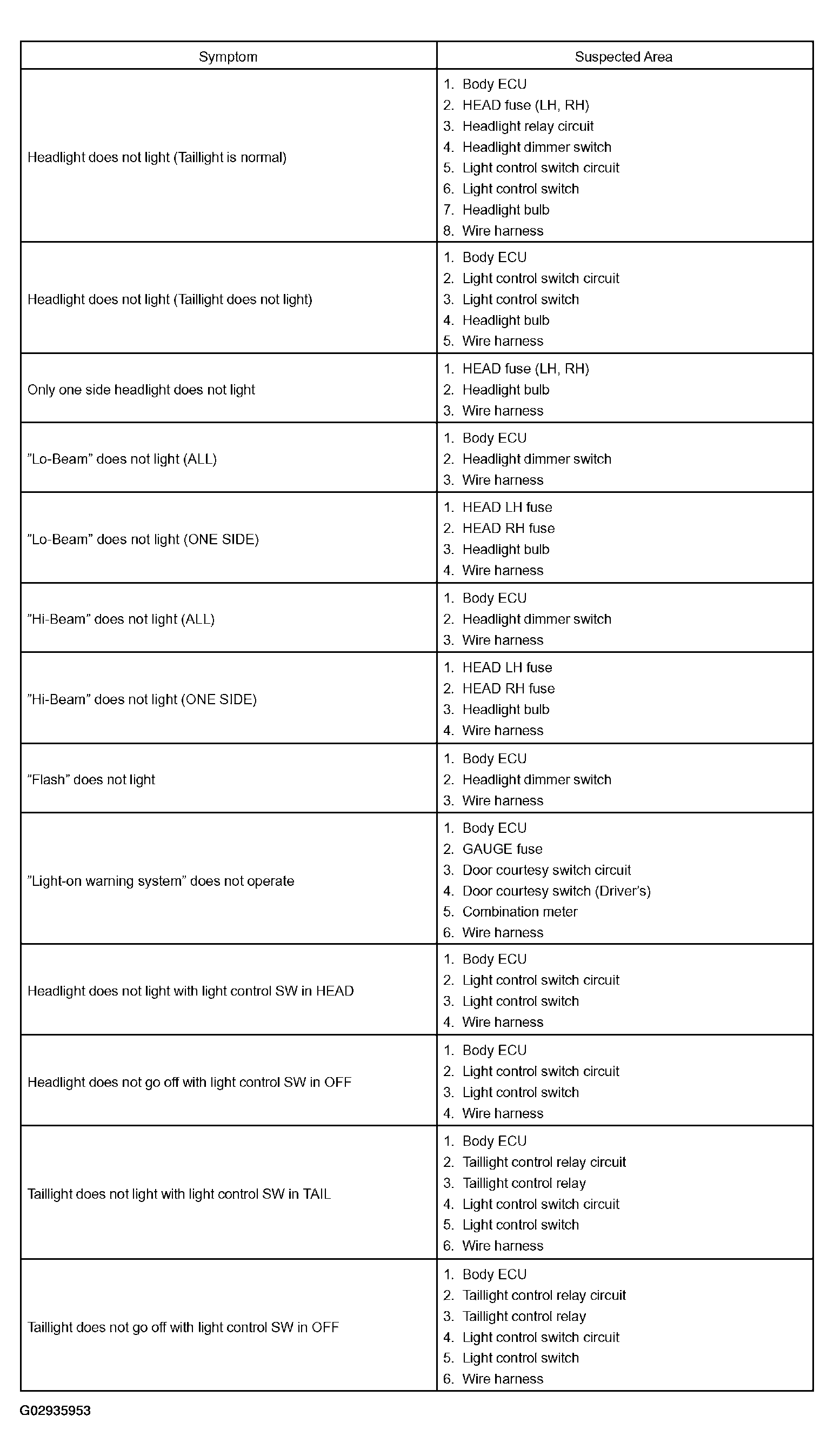

Fig 1: Identifying Headlight & Tail Light Symptoms
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
