Terminals Of Ecu

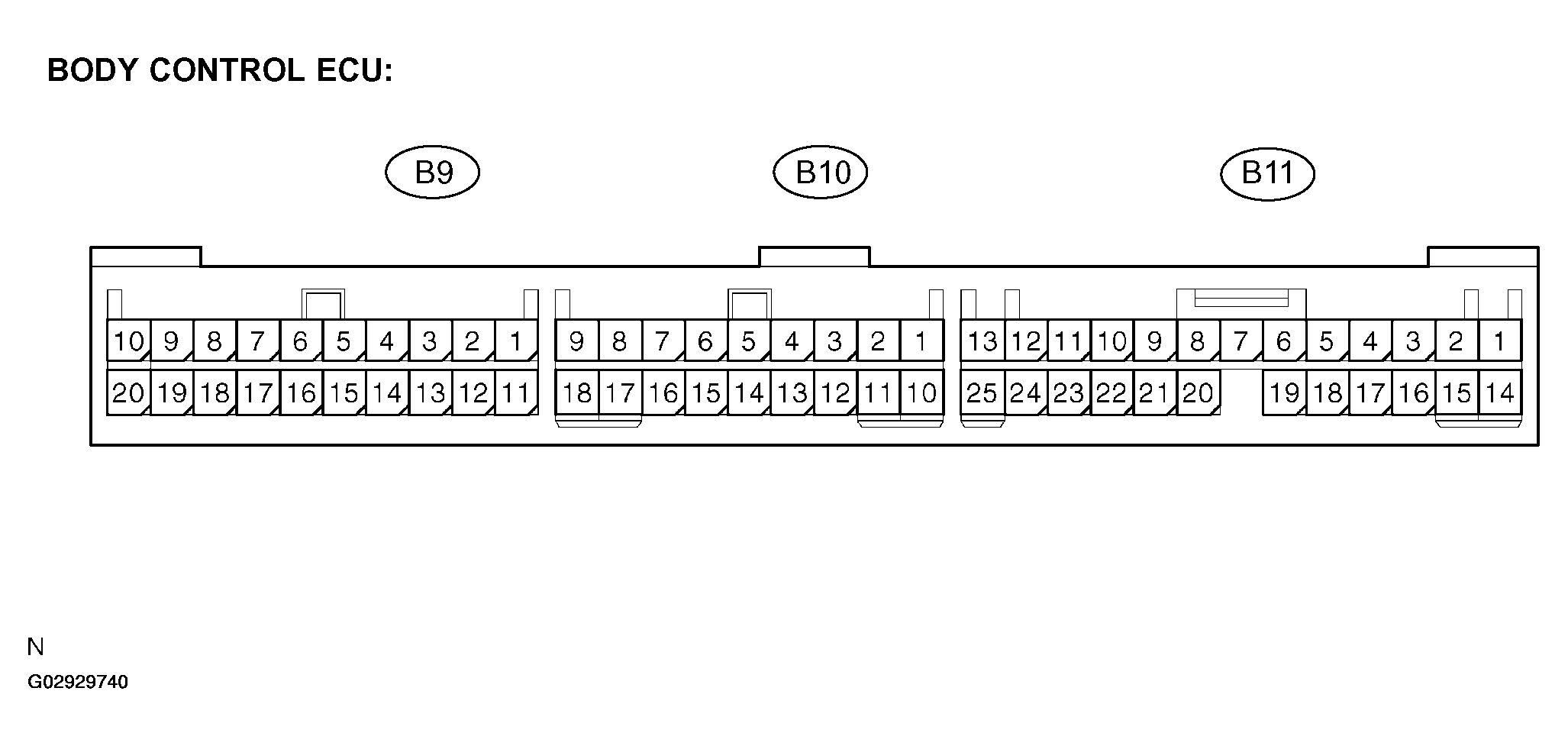

Fig 1: Identifying ECU Terminals
G02929740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

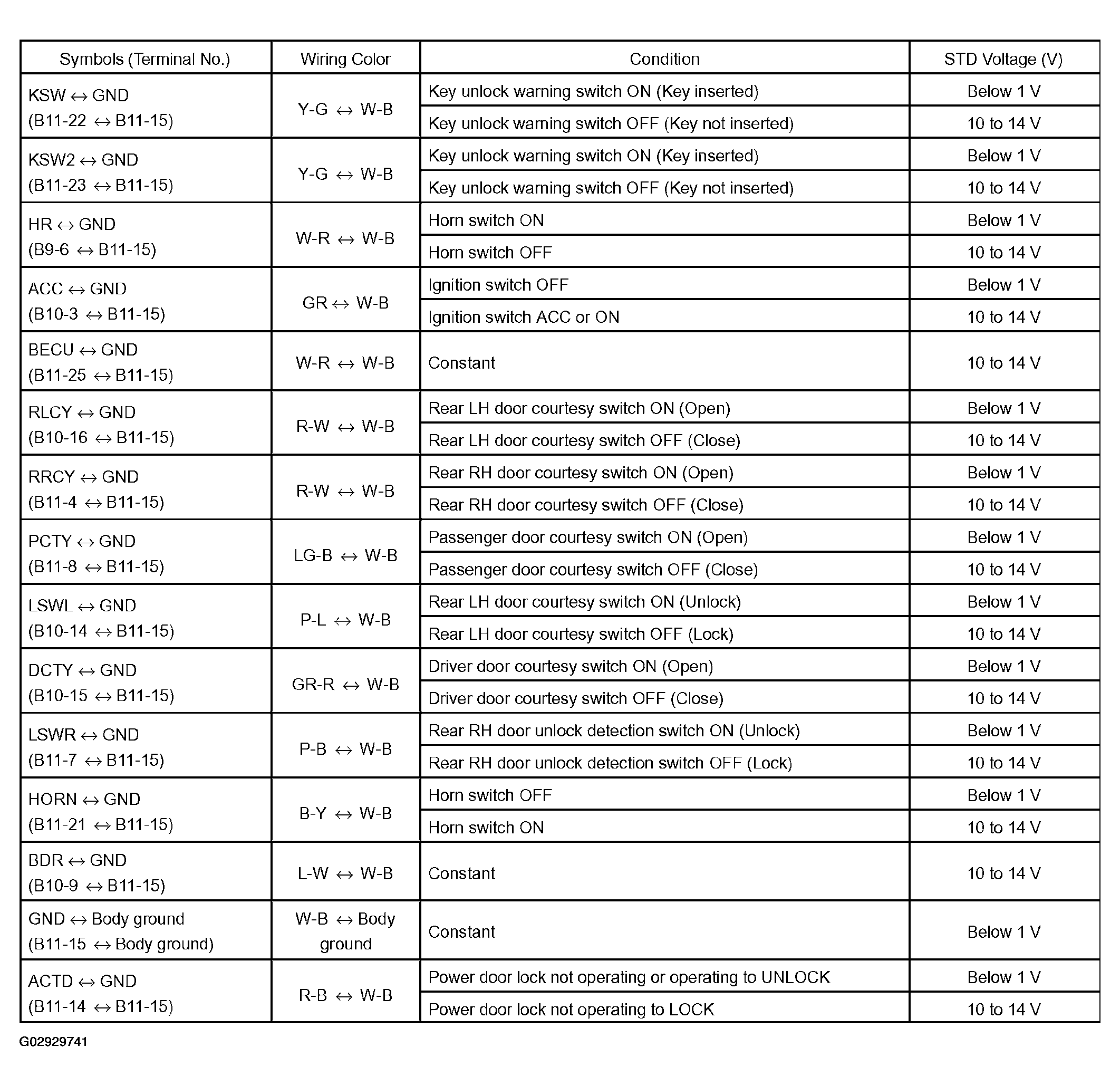

Fig 2: ECU Terminals Voltage Reference Table (1 Of 2)
G02929741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

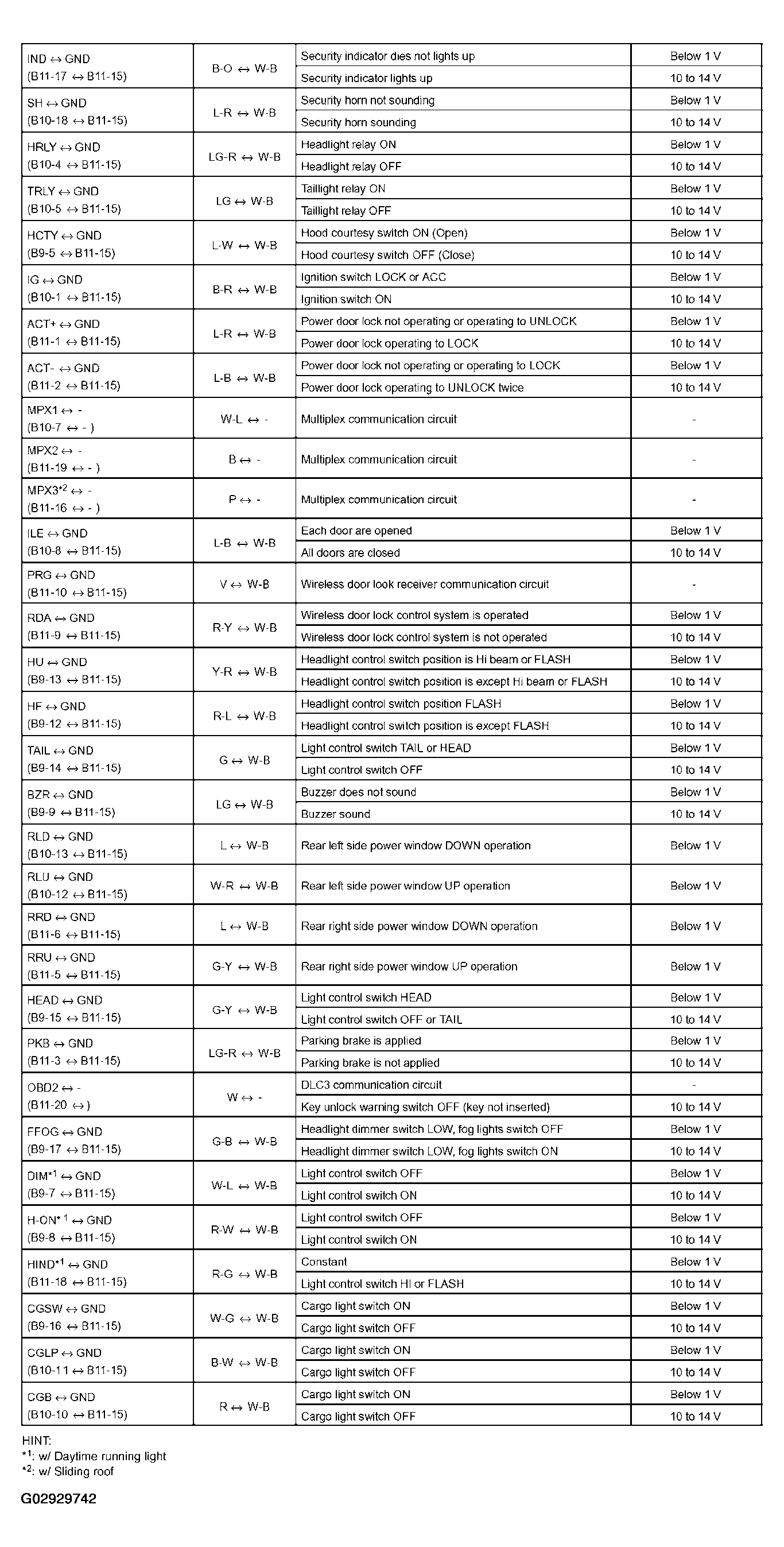

Fig 3: ECU Terminals Voltage Reference Table (2 Of 2)
G02929742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
