Engine Ignition Coil (5VZ-FE): Installation

  1. INSTALL IGNITION COILS
    1. Install the 3 ignition coils to the RH cylinder head cover with the 3 bolts.

      Torque: 8 N.m (80 kgf.cm, 70 in.lbf)

    2. Connect the 3 connectors to the ignition coils.
  2. CONNECT HIGH-TENSION CORDS TO IGNITION COILS (See  IGNITION SYSTEM  )
  3. INSTALL AIR CLEANER HOSE

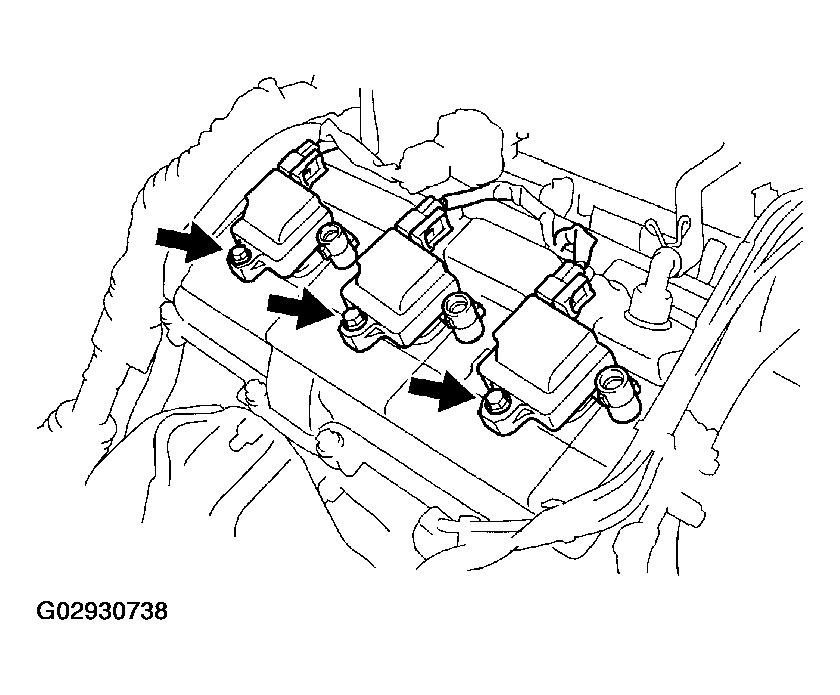

    Fig 1: Installing Ignition Coils7
    G02930738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
