Evaporative Emission (EVAP) Control System: Components

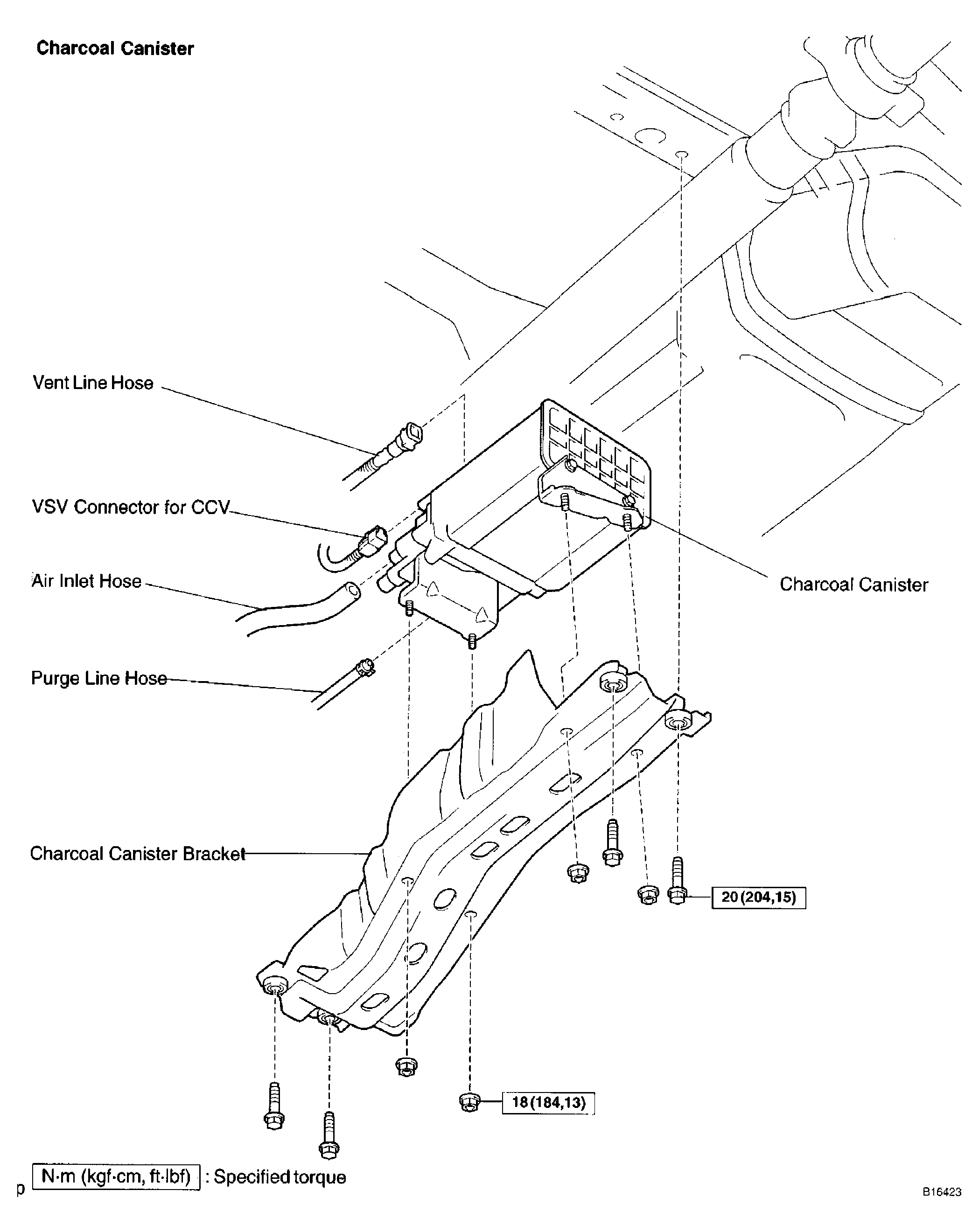

Fig 1: Evaporative Emission (EVAP) Control System Components
G04271595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
