Parts Layout And Schematic Drawing: Location

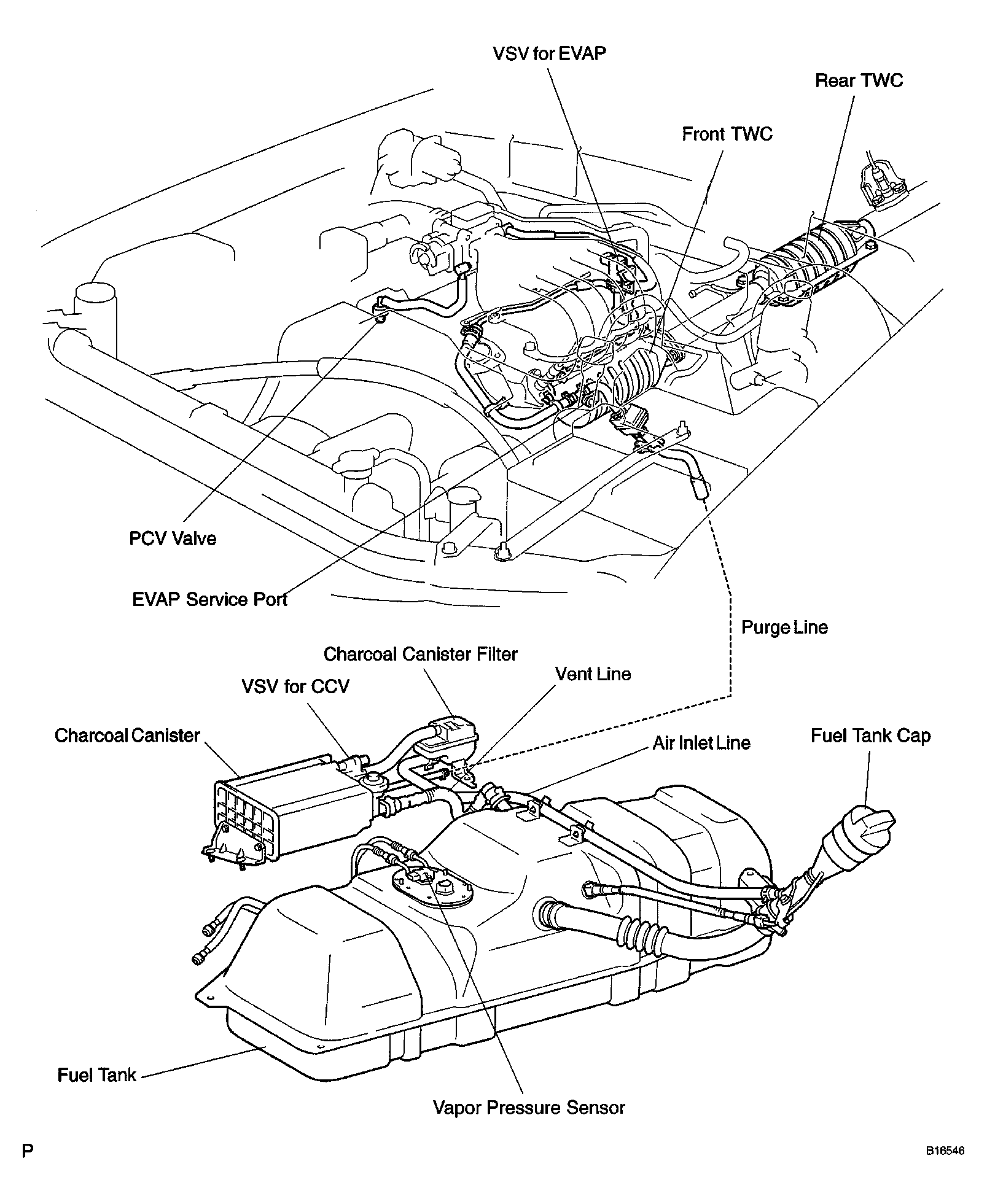

Fig 1: Identifying Emission Control (5VZ-FE) Components
G04271589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
