Power Window Control System

WARNING: This page is about a different variant/trim than selected.

This system uses the multiplex communication system. Check the diagnosis system of the multiplex communication system before you proceed with this troubleshooting.

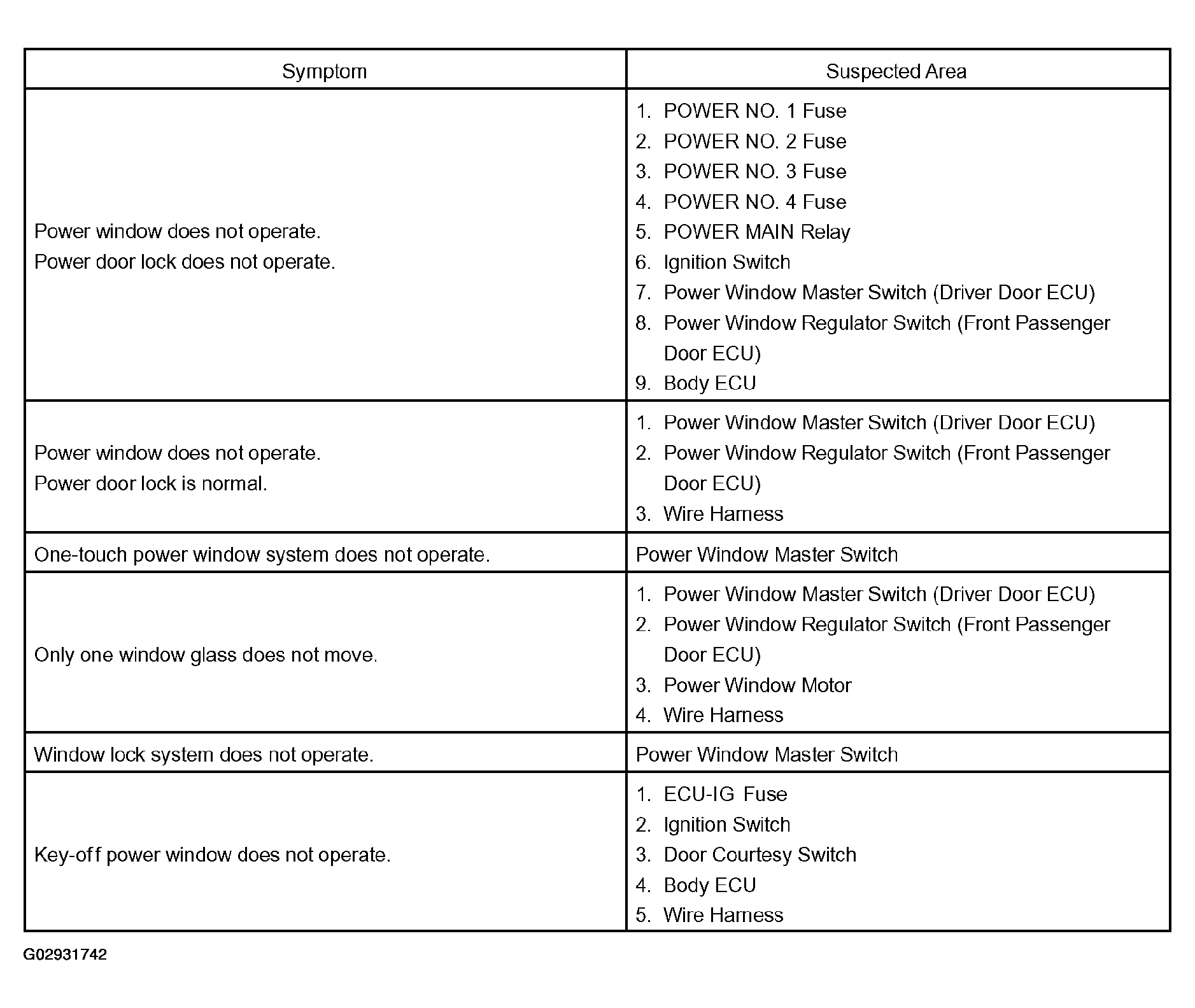

Fig 1: Power Window Control System Troubleshooting Table
G02931742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
