Power Window Control System

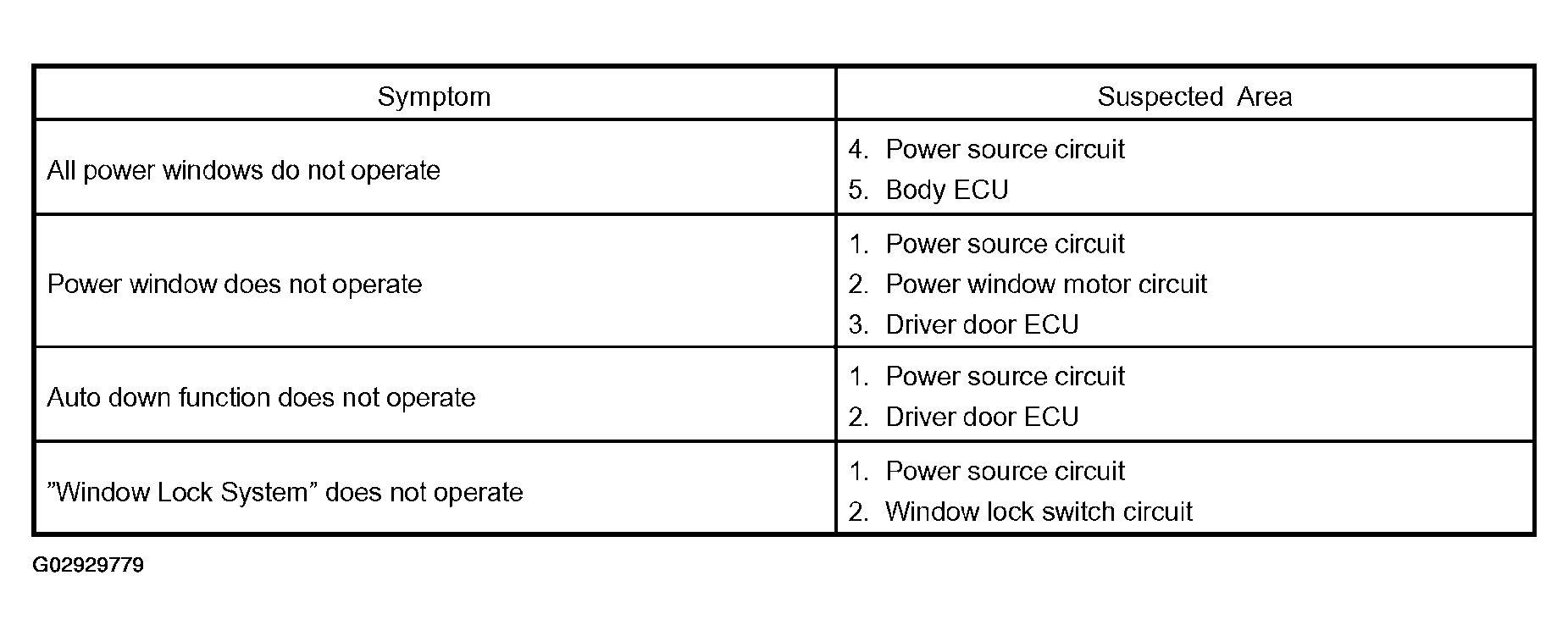

Fig 1: Power Window Control System Diagnostic Chart
G02929779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
