Front Brake Speed Sensor: Components

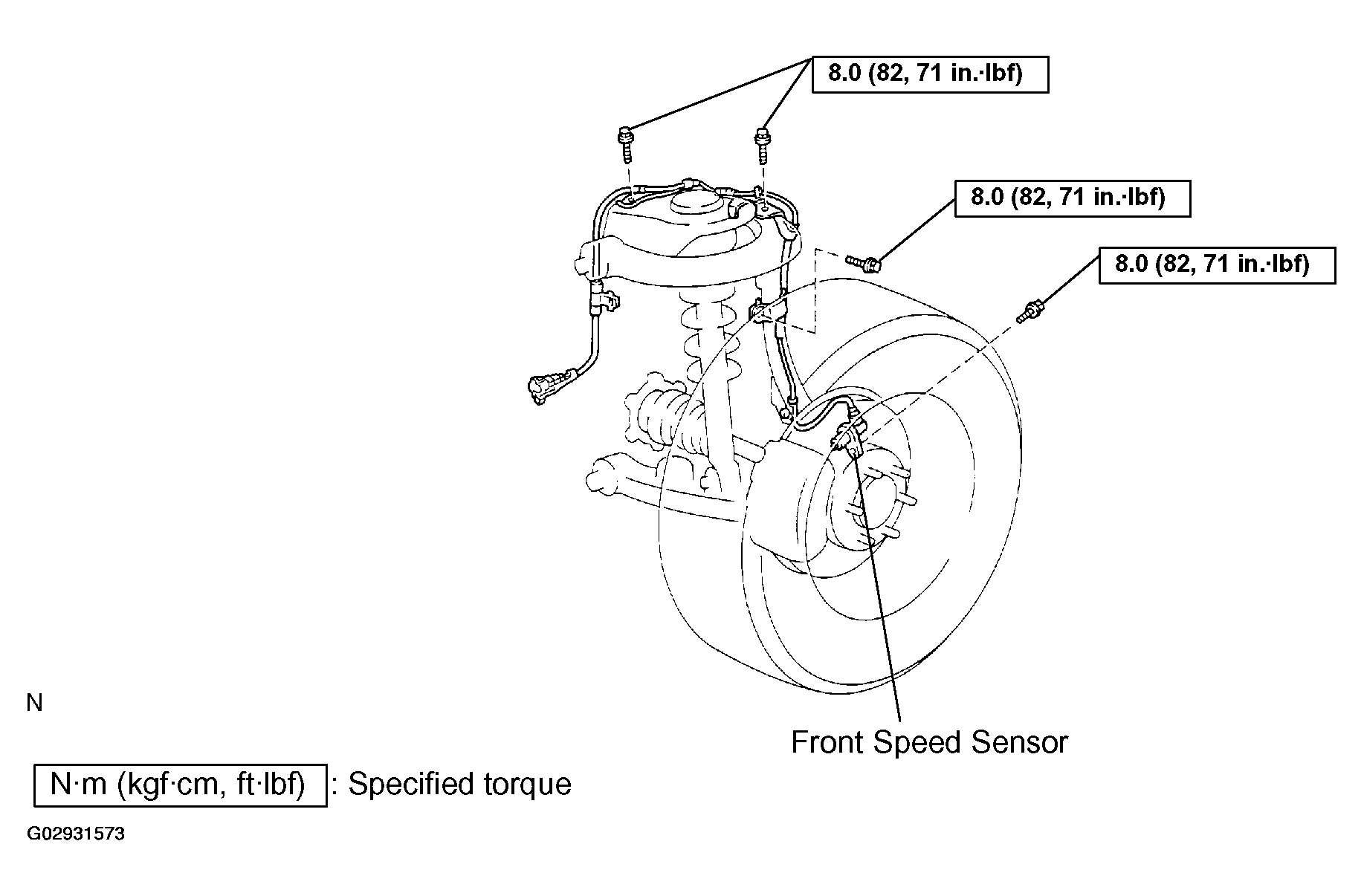

Fig 1: Locating Front Speed Sensor Components
G02931573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
