Diagnostic Trouble Code Chart
NOTE:
Before replacing or removing parts, turn the ignition switch OFF.
HINT:
- Using SST 09643-18040, connect the terminals Tc and CG of the DLC3.
- If any abnormalities are not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed by a code. For details of each code, refer to the "See page" under respective "DTC No." in the DTC chart.

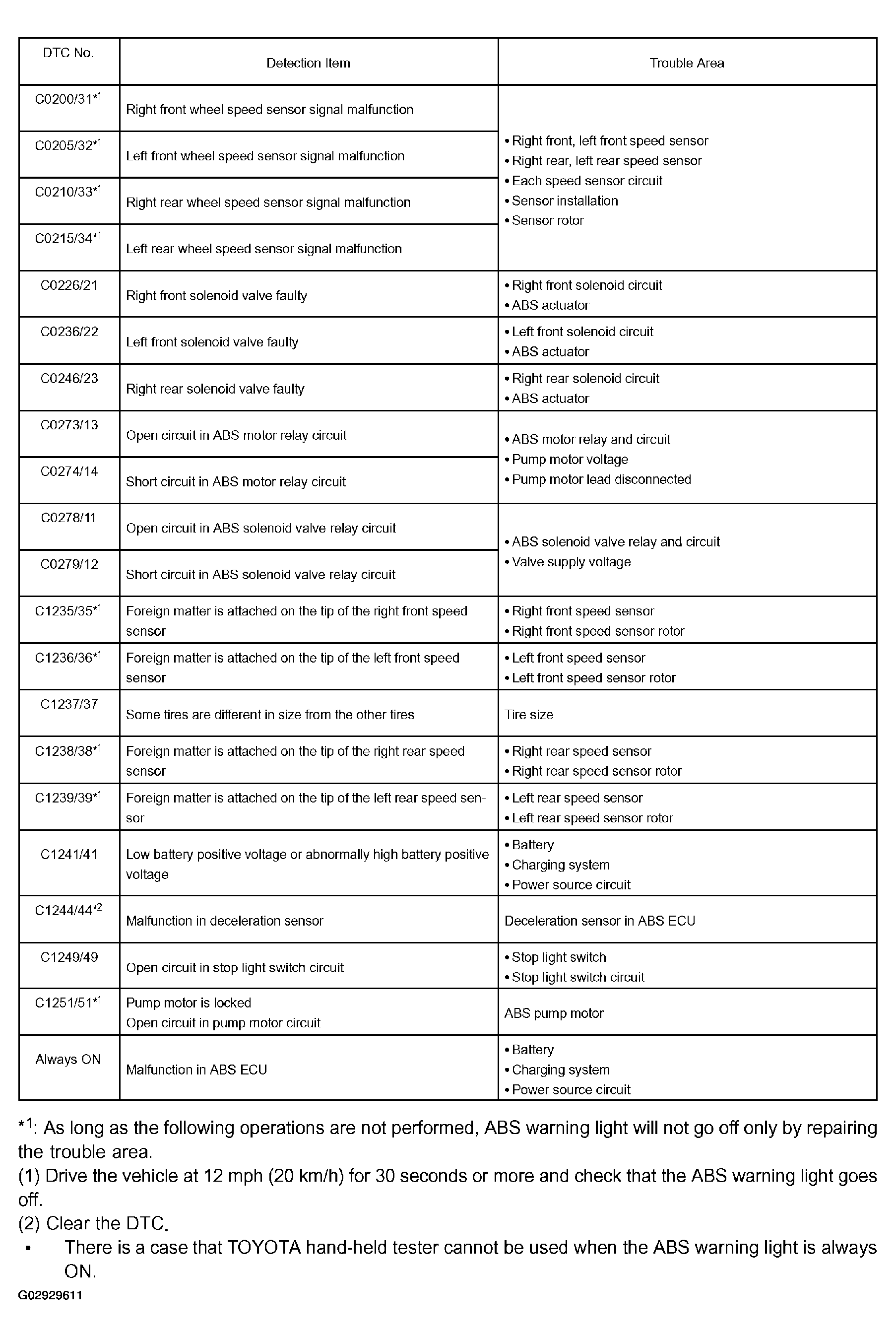

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC C0200/31, C0205/32, C0210/33, C0215/34, C1235/35, C1236/36, C1238/38, C1239/39 | Speed Sensor Circuit & Foreign Matter is Attached on Tip of Speed Sensor Circuit |
| DTC C0226/21, C0236/22, C0246/23 | ABS Solenoid Valve Circuit |
| DTC C0273/13, C0274/14 | ABS Motor Relay Circuit |
| DTC C0278/11, C0279/12 | ABS Solenoid Relay Circuit |
| DTC C1223/43 | Malfunction in ABS Control System |
| DTC C1237/37 | Tire Size is Different |
| DTC C1241/41 | IG Power Source Circuit |
| DTC C1244/44 | Malfunction in Deceleration Sensor |
| DTC C1246/46 | Malfunction in Master Cylinder Pressure Sensor |
| DTC C1249/49 | Stop Light Switch Circuit |
| DTC C1251/51 | ABS Pump Motor Lock |
