How To Proceed With Troubleshooting

Troubleshooting in accordance with the procedure shown.

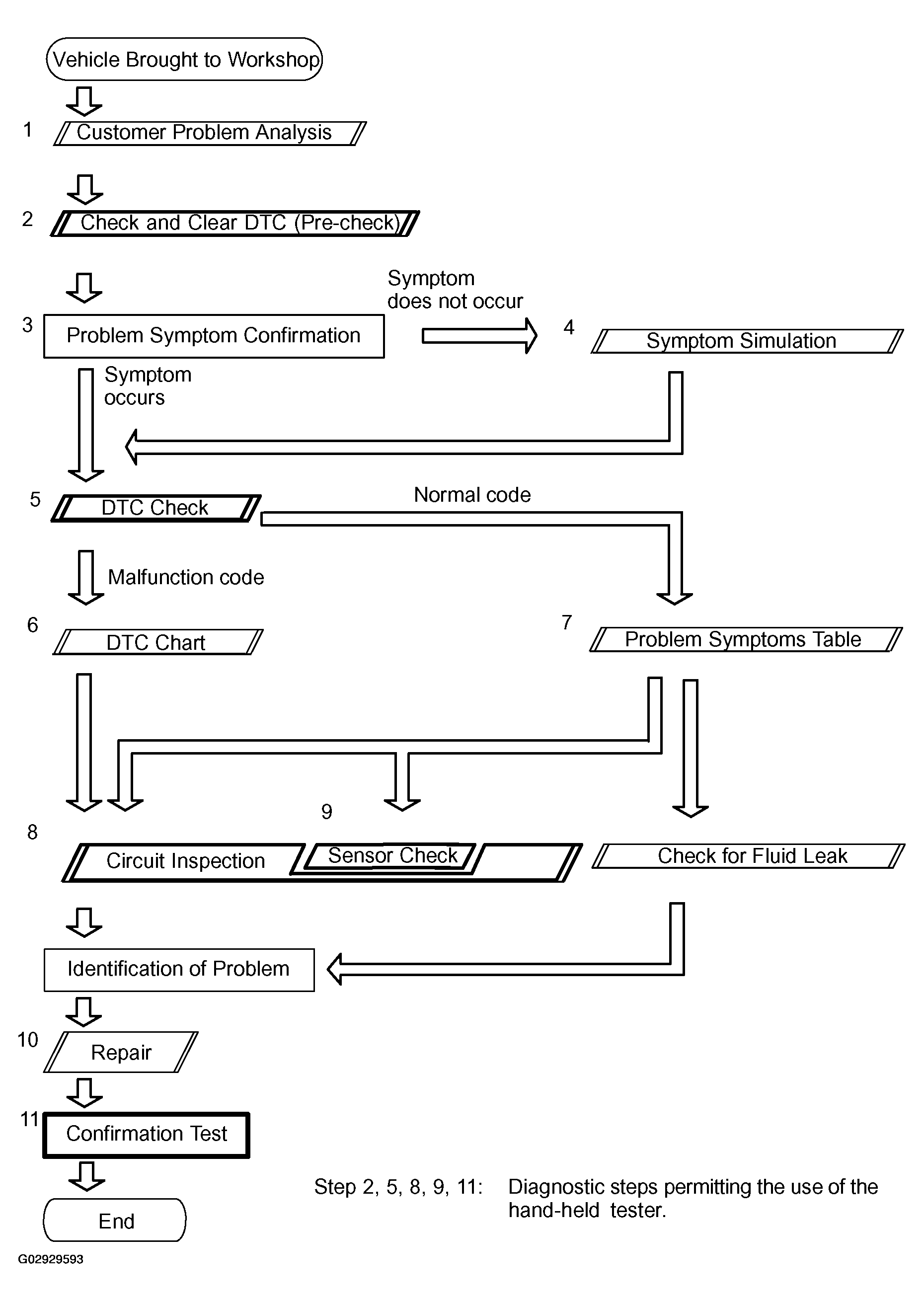

Fig 1: Anti-Lock Brake System Diagnostic Procedure
G02929593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
