Steering System Angle Sensor (W/VSC): Removal

REMOVE STEERING WHEEL PAD
NOTE: If the airbag connector is disconnected with the ignition switch at ACC or ON, DTCs will be recorded.
1. Place the front wheels facing straight ahead.
2. Remove the steering wheel lower No. 3 cover.
3. Remove the steering wheel lower No. 2 cover.
4. Using a torx socket wrench (T30), loosen the 2 torx screws.
  HINT:

  Loosen the screw until the groove along the screw circumference catches on the screw case.

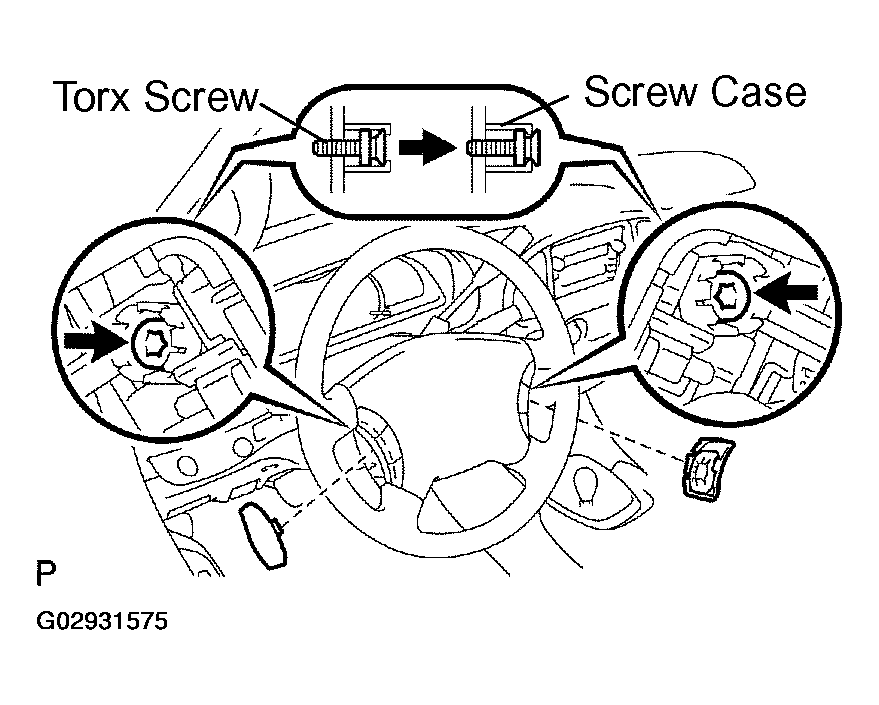

  Fig 1: Locating Torx Screw and Screw Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Pull out the wheel pad from the steering wheel.
6. Using a screwdriver, disconnect the airbag connector.
  CAUTION:
  - When storing the steering wheel pad, keep the upper surface of the pad facing upward.
  - Never disassemble the steering wheel pad.
  NOTE: When removing the steering wheel pad, take care not to pull the airbag wire harness.
7. Disconnect the horn connector and remove the steering wheel pad.

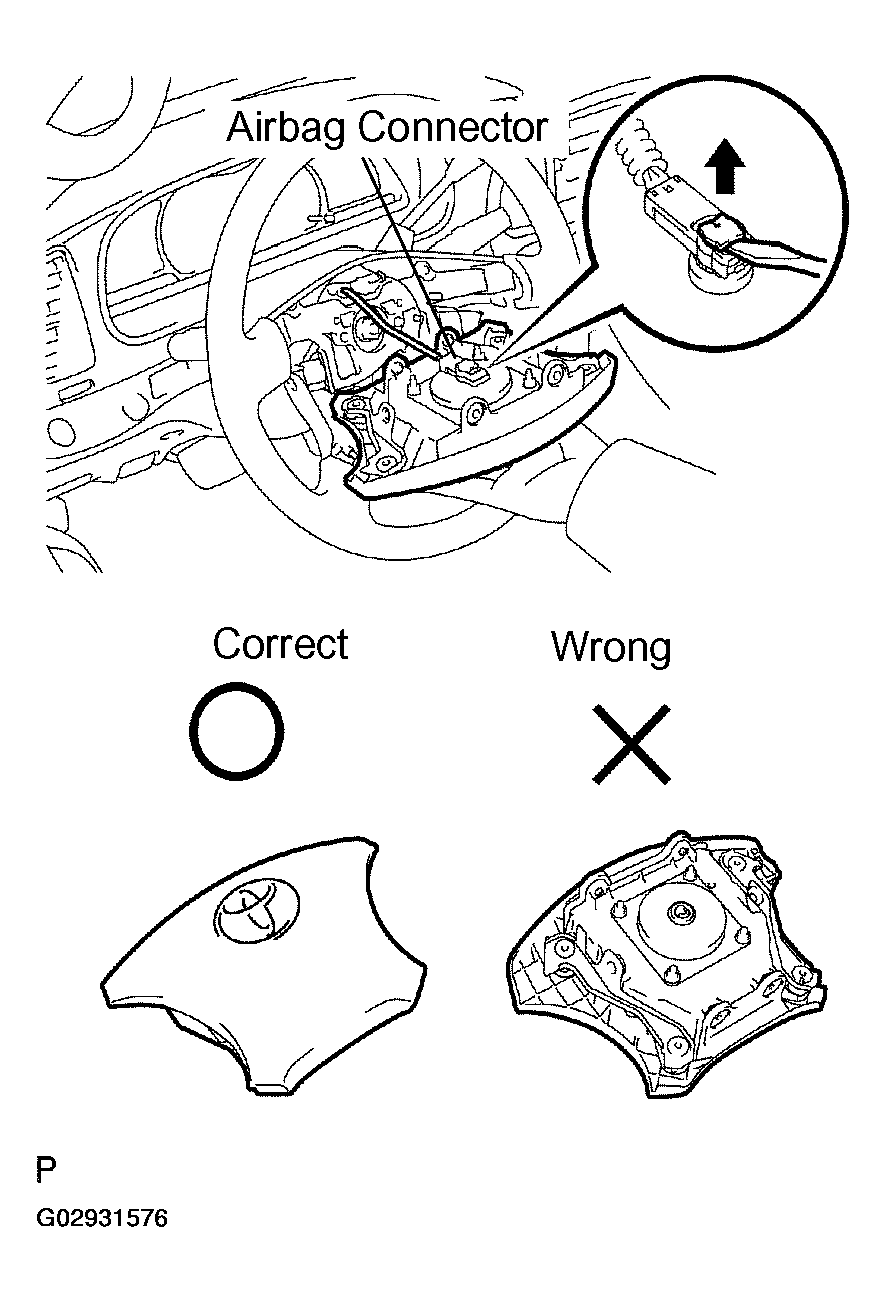

  Fig 2: Identifying Airbag Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STEERING WHEEL
1. Remove the steering wheel set nut.
2. Place matchmarks on the steering wheel and main shaft assembly.
3. Using SST, remove the wheel.
  SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
REMOVE SPIRAL CABLE
REMOVE STEERING ANGLE SENSOR

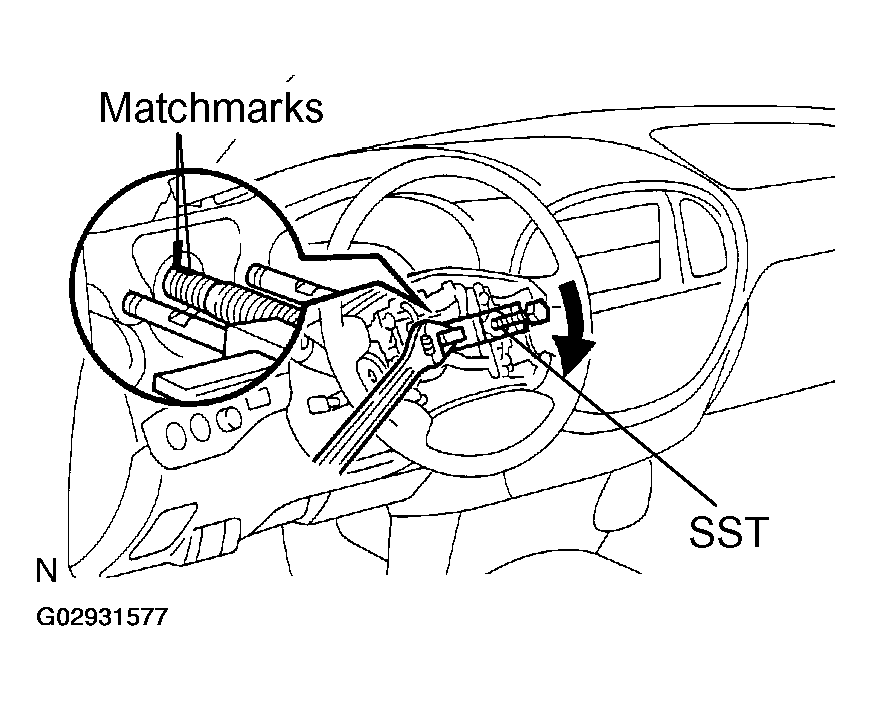

Fig 3: Placing Matchmarks on Steering Wheel and Main Shaft Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
