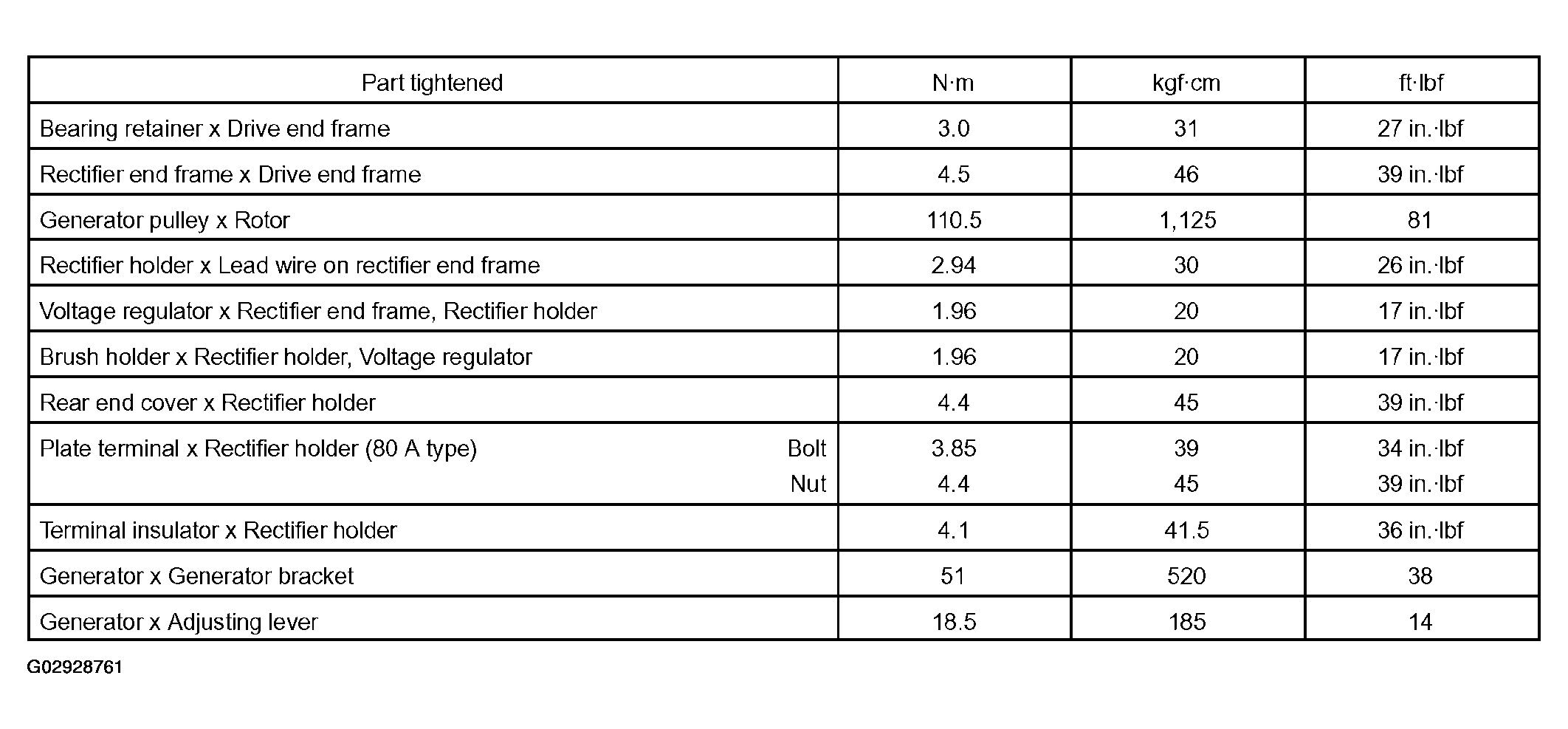

Torque Specification
CHARGING SYSTEM TORQUE SPECIFICATIONS
| Part tightened | N.m | kgf.cm | ft.lbf | |
|---|---|---|---|---|
| Bearing retainer x Drive end frame | 3.0 | 31 | 27 in..lbf | |
| Rectifier end frame x Drive end frame | 4.5 | 46 | 39 in..lbf | |
| Generator pulley x Rotor | 110.5 | 1,125 | 81 | |
| Rectifier holder x Lead wire on rectifier end frame | 2.94 | 30 | 26 in..lbf | |
| Voltage regulator x Rectifier end frame, Rectifier holder | 1.96 | 20 | 17 in..lbf | |
| Brush holder x Rectifier holder, Voltage regulator | 1.96 | 20 | 17 in..lbf | |
| Rear end cover x Rectifier holder | 4.4 | 45 | 39 in..lbf | |
| Plate terminal x Rectifier holder (80 A type) | Bolt | 3.85 | 39 | 34 in..lbf |
| Nut | 4.4 | 45 | 39 in..lbf | |
| Terminal insulator x Rectifier holder | 4.1 | 41.5 | 36 in..lbf | |
| Generator x Generator bracket | 51 | 520 | 38 | |
| Generator x Adjusting lever | 18.5 | 185 | 14 | |
